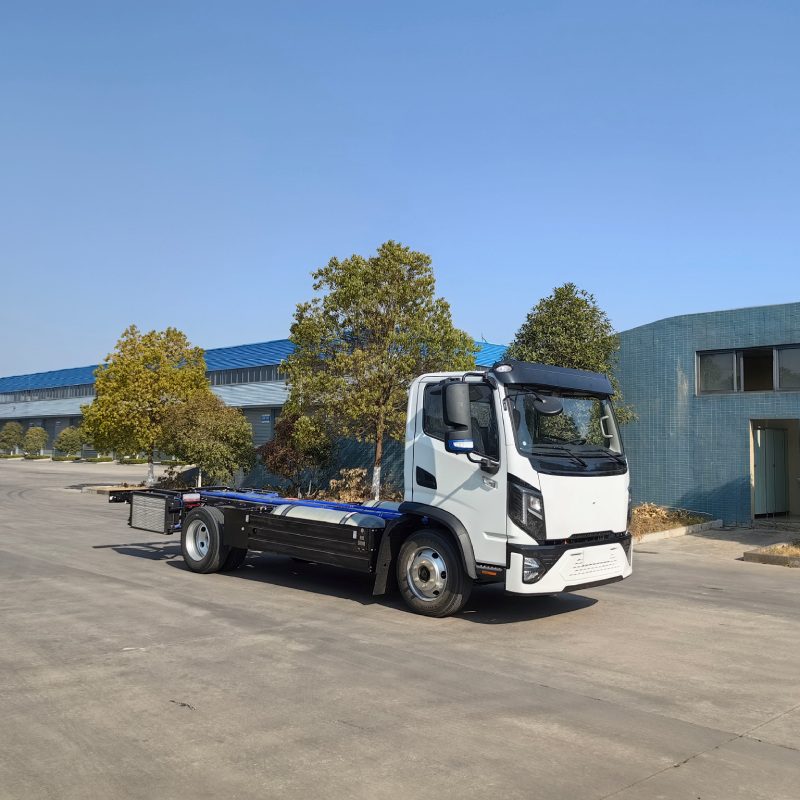

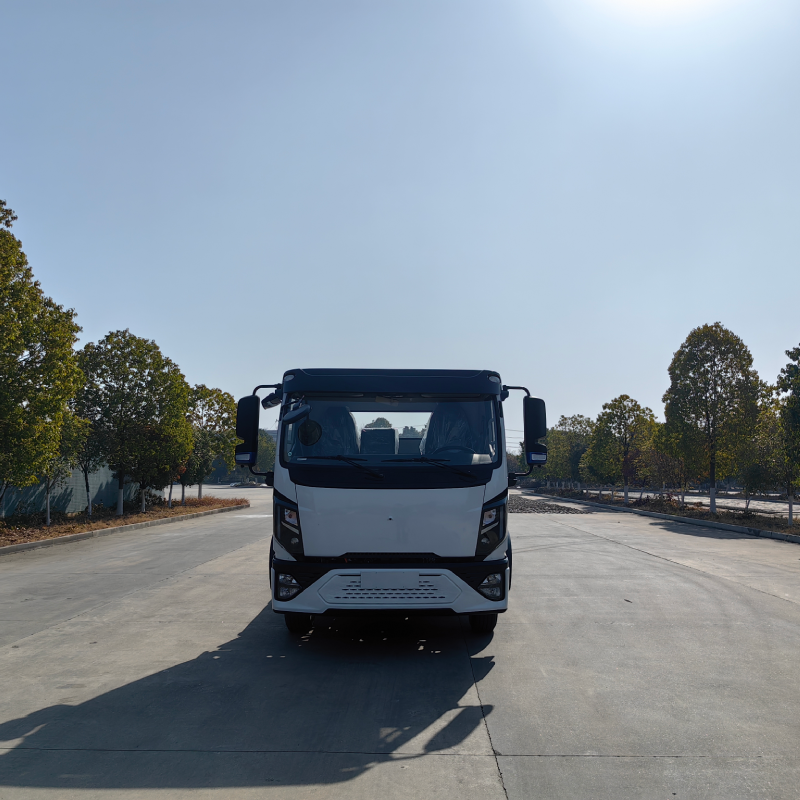

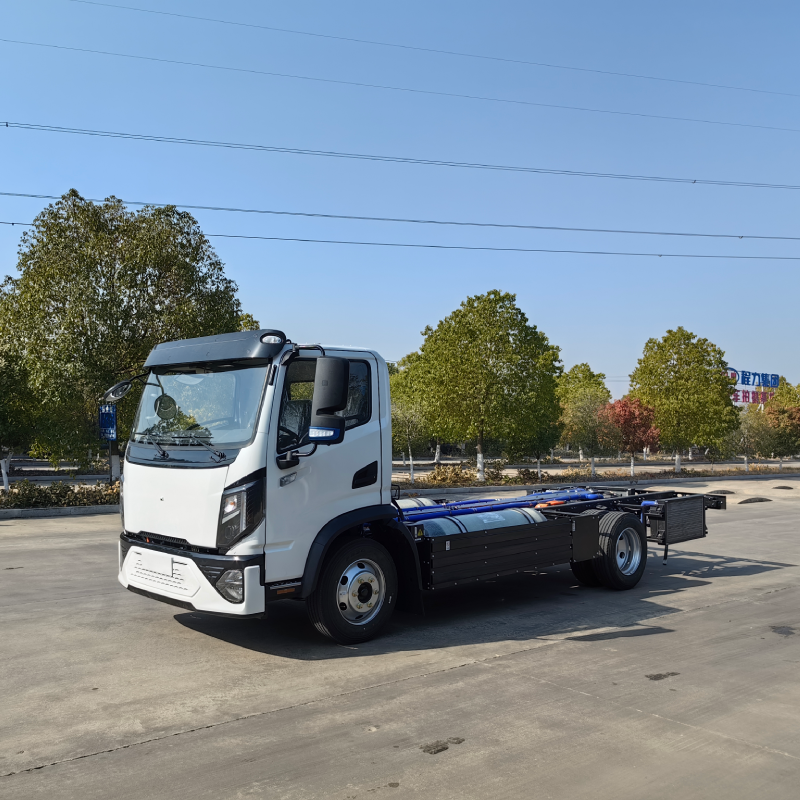

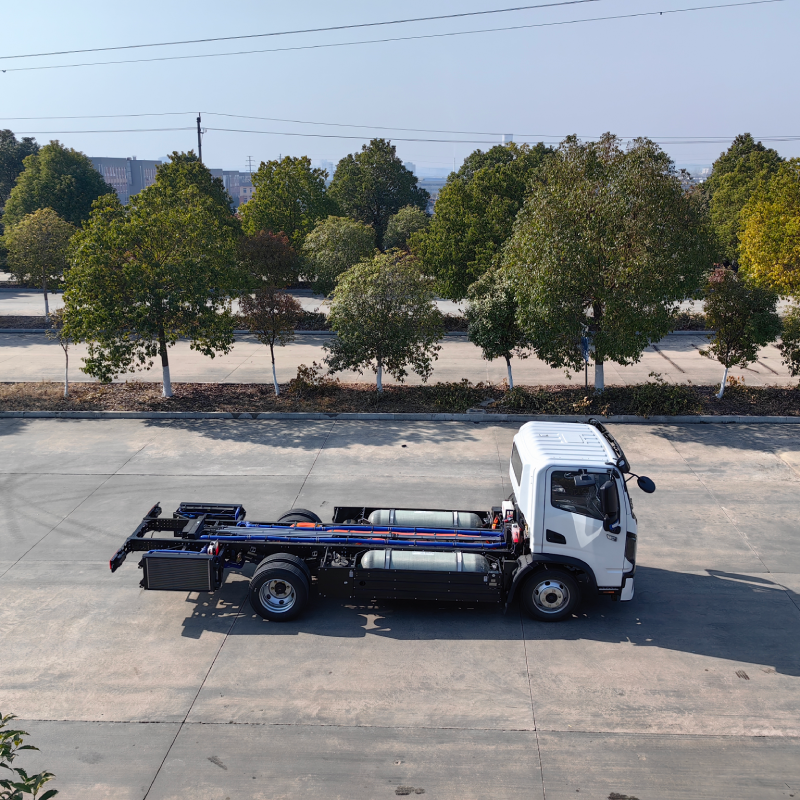

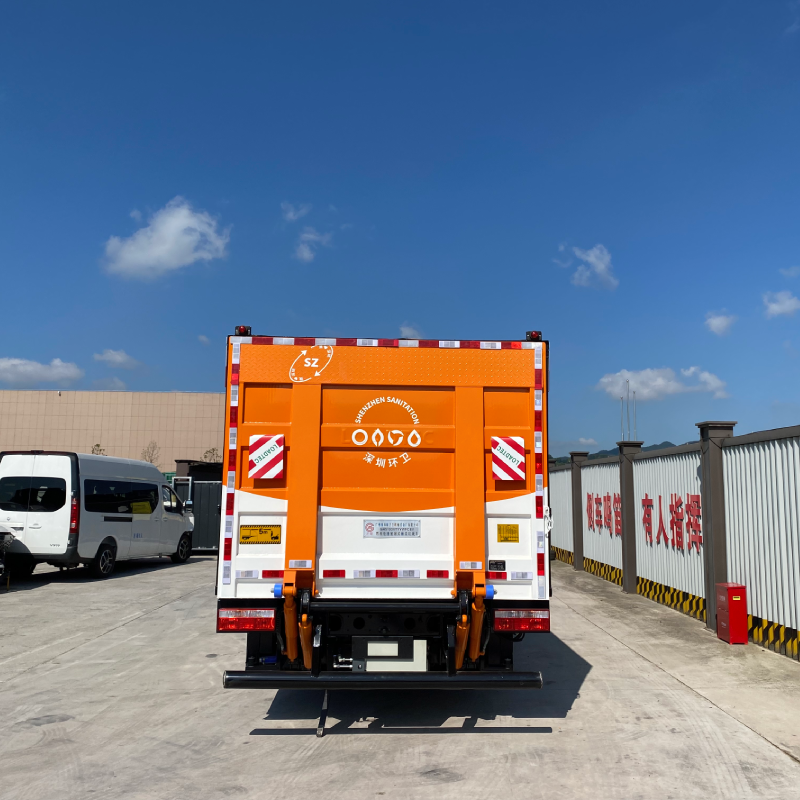

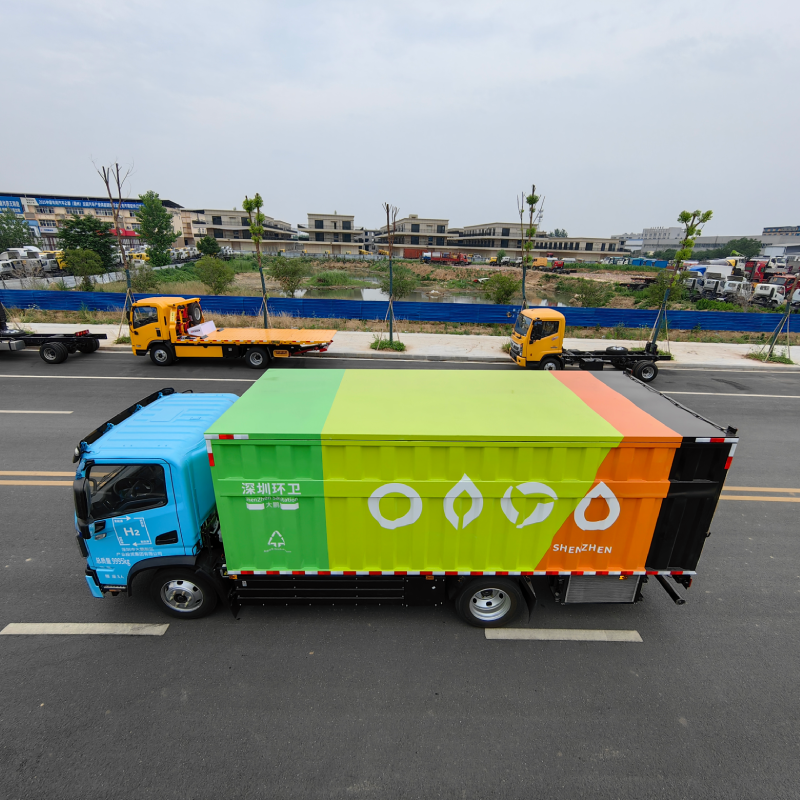

Product Appearance
Product Parameters
| Project | Parameter | Remark |
| Model | 10 ton hydrogen fuel chassis | / |
| Chassis Bulletin Number | HQG1100FCEVYW | / |
| Chassis size ( mm ) | 7385*2240*2440 | / |
| Wheelbase ( mm ) | 3800 | / |
| Front / rear overhang ( mm ) | 1275/2310 | / |
| Front / rear track ( mm ) | 1764/1644 | / |
| Second category chassis curb weight ( kg ) | 2995 | / |
| Maximum total mass ( kg ) | 9995 | / |
| Maximum speed ( km/h ) | 90 | / |
| Battery capacity ( kWh ) | 82 | Multi-component lithium |
| Hydrogen tank capacity ( L ) | 540 | 35MPa |
| Driving range ( km ) | 315 | WLTP |
| Charging time ( min ) | 30 | 3 0%- 80 %soc |
| Rated/Peak power-Motor(KW) | 90/160 | |
| Rated/Peak power-FC engine(KW) | 80/82 |

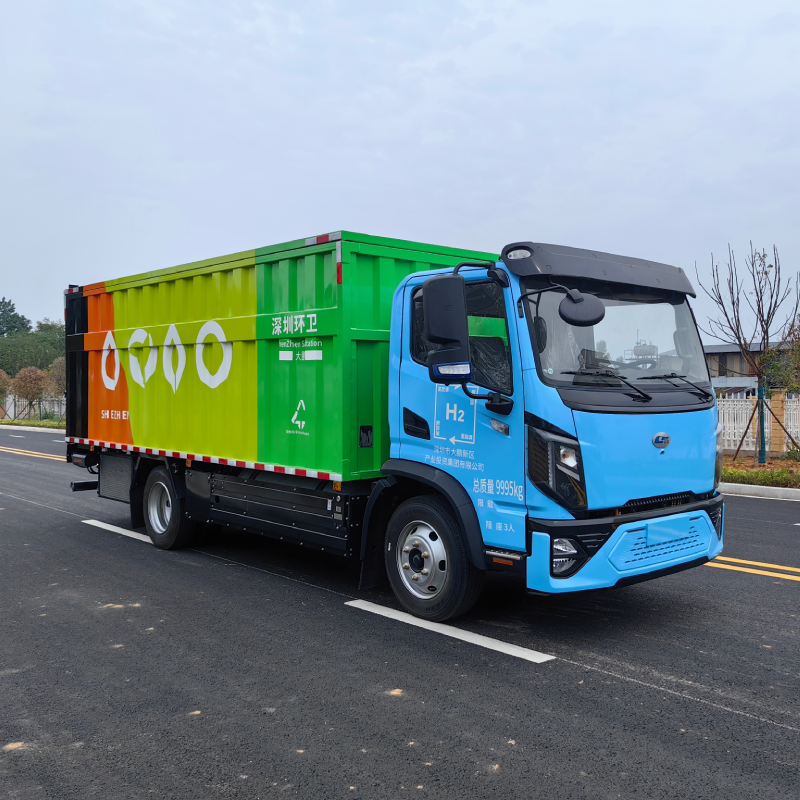

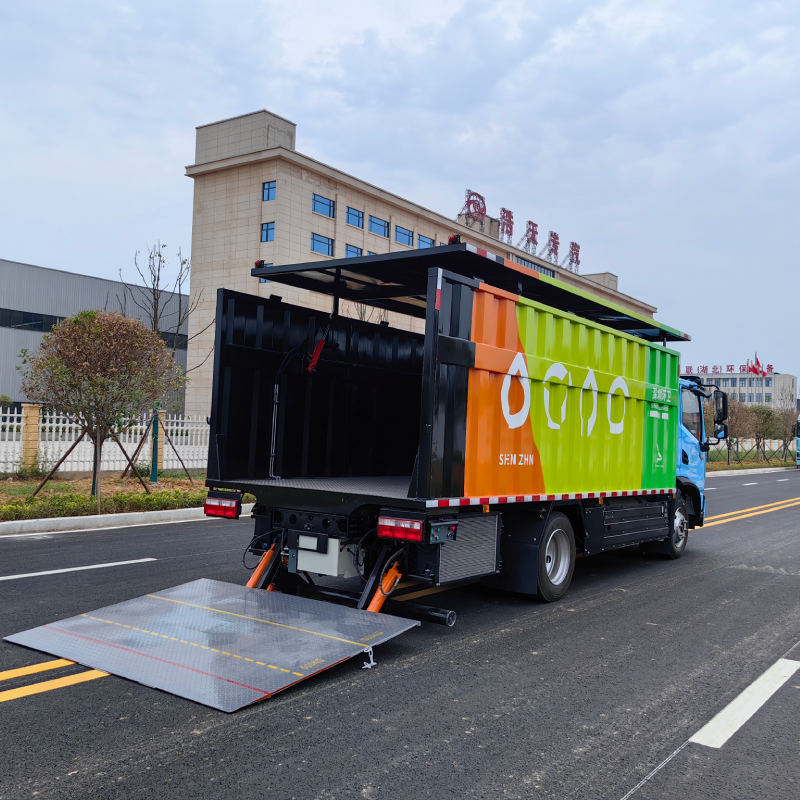

Applications
