Product Detail
Efficiency And Functionality
Equipped with multiple operation modes including front flushing, rear dual flushing, rear spraying, side spraying,water and fog cannon.Suitable for road cleaning, sprinkling, dust suppression, and sanitation tasks on urban roads, industrial and mining sites, bridges, and other large areas.
High-Performance Tank with Large Capacity
Lightweight vehicle design with a 6.7m³ water tank actual capacity-the largest tank capacity in its class;
Made from high-strength 510L/610L beam steel and treated with international-standard electrophoresis for 6-8 years of corrosion resistance;
Durable and reliable with a dense anti-corrosion coating;
High temperature baking paint ensures stronger adhesion and long-lasting finish.
Smart and Safe, Reliable Performance
Anti-Rollback: Hill-start assist, EPB, AUTOHOLD for stable driving
Easy Operation: Cruise control, rotary gear shift
Smart System: Real-time monitoring, big data on upper-body usage, improved efficiency
Reliable Pump: Branded water pump with high reliability and strong reputation

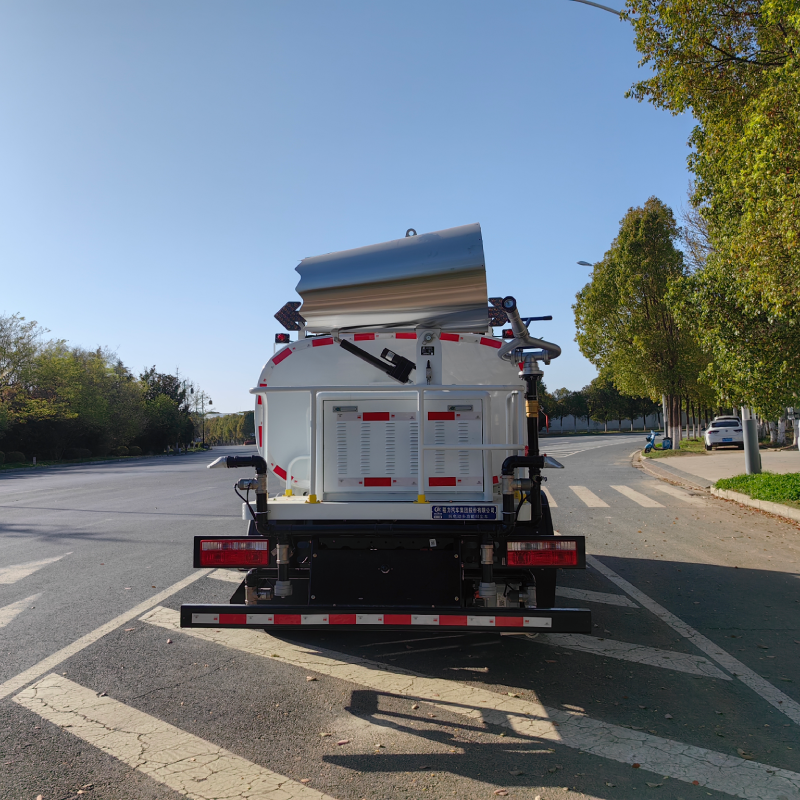

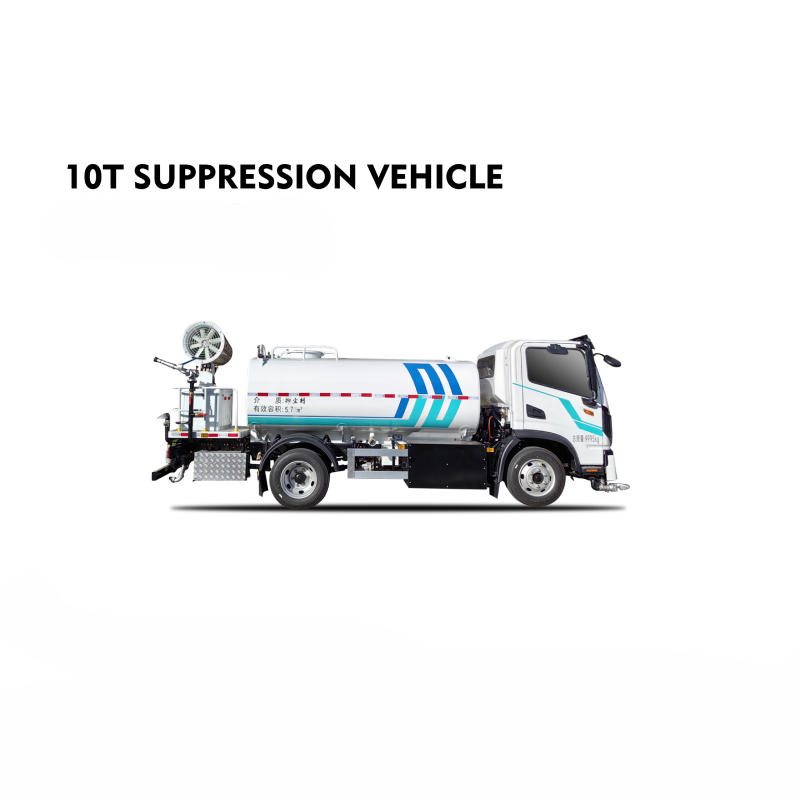

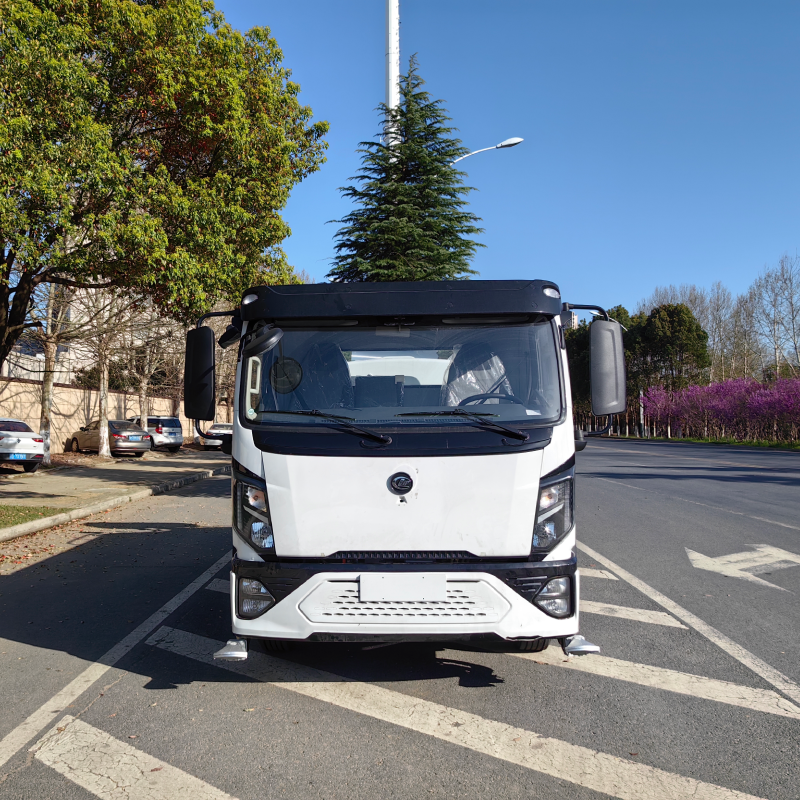

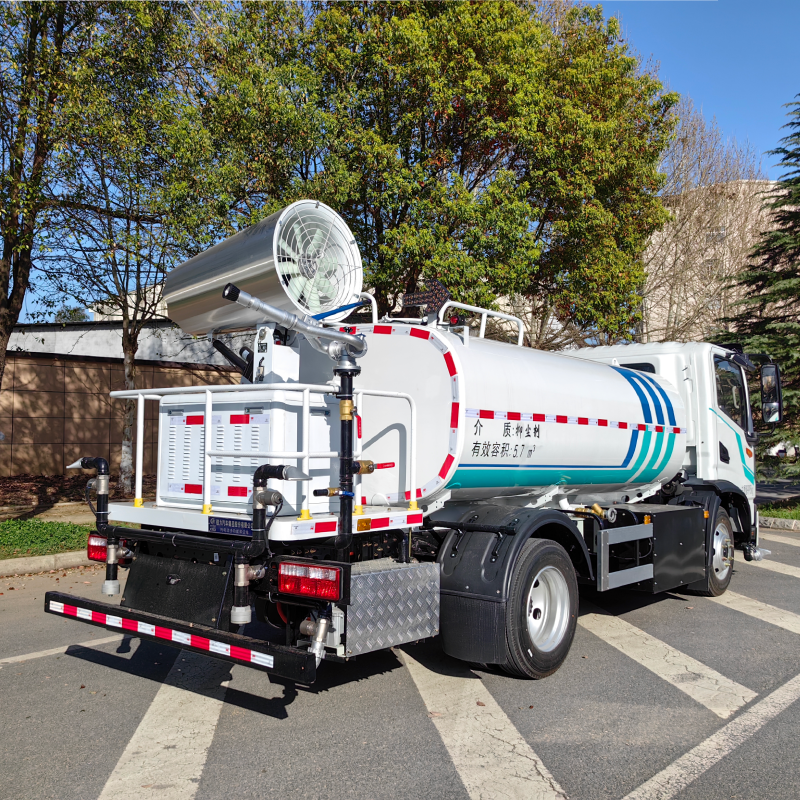

Product Appearance
Product Parameters
| Items | Parameter | Remark | |
| Approved Parameters |
Vehicle |
CL5100GSSBEV
|
|
| Chassis |
CL1100JBEV
|
||
| Weight Parameters |
Max.Gross Vehicle Weight(kg) | 9995 | |
| Curb Weight(kg) | 4790 | ||
| Payload(kg) | 5010 | ||
| Dimension Parameters |
Overall Dimensions(mm) | 6730×2250×2720,2780 | |
| Wheelbase(mm) | 3360 | ||
| Front/Rear Overhang(mm) | 1275/2095 | ||
| Front/Rear Wheel Track(mm) | 1780/1642 | ||
| Power Battery | Type | Lithium Iron Phosphate | |
| Brand | CALB | ||
| Battery Capacity(kWh) | 128.86 | ||
| Chassis Motor | Type | Permanent Magnet Synchronous Motor | |
| Rated/Peak Power(kW) | 120/200 | ||
| Rated/Peak Torque(N·m) | 200/500 | ||
| Rated /Peak Speed(rpm) | 5730/12000 | ||
| Additional Parameters |
Max.Vehicle Speed(km/h) | 90 | / |
| Driving Range(km) | 240 | Costant Speed Method | |
| Charging Time(min) | 35 | 30%-80%SOC | |
| Superstructure Parameters |
Water Tank Approved Effective Capacity (m³)
|
5.7 | |
|
Total Capacity of Water Tank(m³)
|
6.7 | ||
|
Superstructure Motor Rated/Peak Power(kW)
|
15/20 | ||
|
Low-Pressure Water Pump Brand
|
WLOONG | ||
|
Low-Pressure Water Pump Model
|
65QSB-40/45ZLD
|
||
|
Head(m)
|
45 | ||
| Flow Rate(m³/h) | 40 | ||
|
Washing Width(m)
|
≥16
|
||
|
Sprinkling Speed(km/h)
|
7-20 | ||
|
Water Cannon Range(m)
|
≥30 | ||
|
Fog Cannon Range(m)
|
≥40 | ||
Applications
Watering truck
Dust suppression truck
Compressed garbage truck
Kitchen waste truck
