Product Detail
Lightweight Design
• Axle：The rear integrated welded axle housing reduces weight while ensuring load-bearing capacity.
• Battery：Based on big data analysis, the battery capacity is precisely configured (142.19°), reducing chassis weight and purchase cost while meeting operational needs.
• Integrated Structure：Multiple areas adopt integrated design, reducing structure components and effectively lowering weight.
Independent R&D
• Adjustable Energy Recovery：Efficient energy management extends driving range and working time；Smart adjustment of recovery levels enhances energy efficiency.
• Real-time Monitoring & Worry-free Service：Supports online and batch upgrades across multiple vehicle models for efficient service.
• Customized Cruise Control：Customized cruise settings reduce driver workload during operations；PID algorithm ensures precise and stable vehicle control.
• Versatile Scenarios, Flexible Operation：Equipped with real-time PTO adjustment to adapt to various working conditions；Meets diverse vehicle demands across different scenarios.
Integrated Design
• Chassis & Body Integration：Customized chassis-body integration for compactor trucks and kitchen waste trucks；Integration of sewage tanks, water tanks, toolboxes, and lifting devices for optimized space utilization.
• Unified Control Interface: MP5 screen integrates body control with entertainment, 360° monitoring, and operation management；Unified interface enhances convenience and user experience.
• Optimized Development Model：Eliminates redundant switches or control panels, simplifying interior layout；Improves operational efficiency while reducing costs.

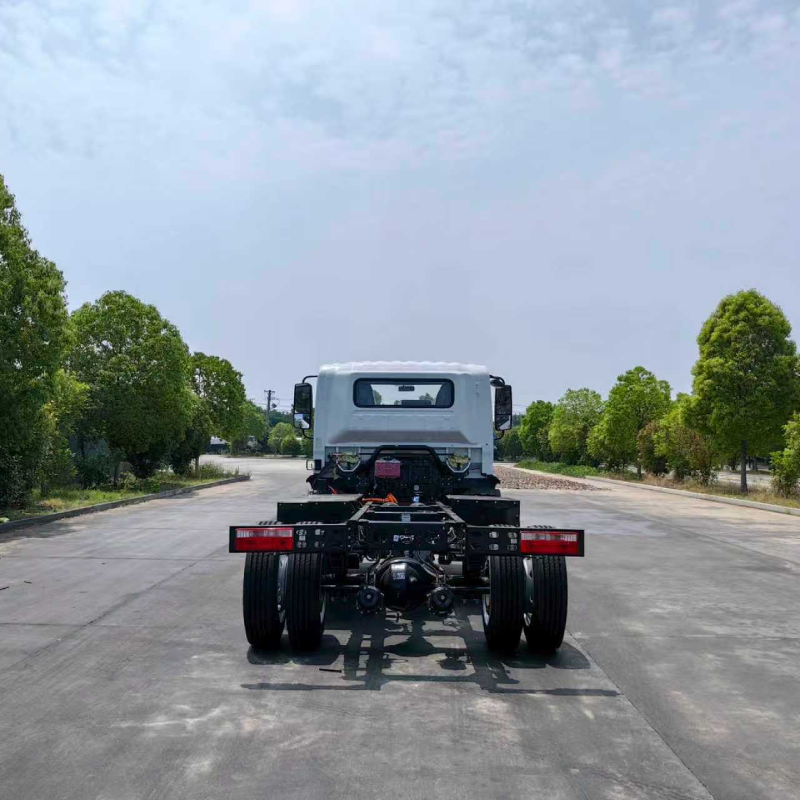

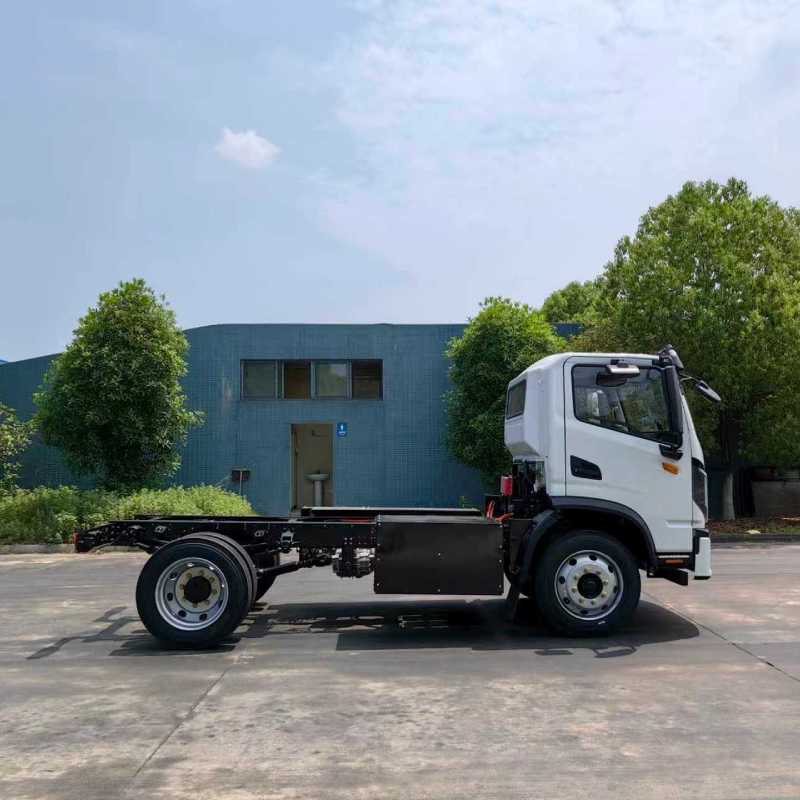

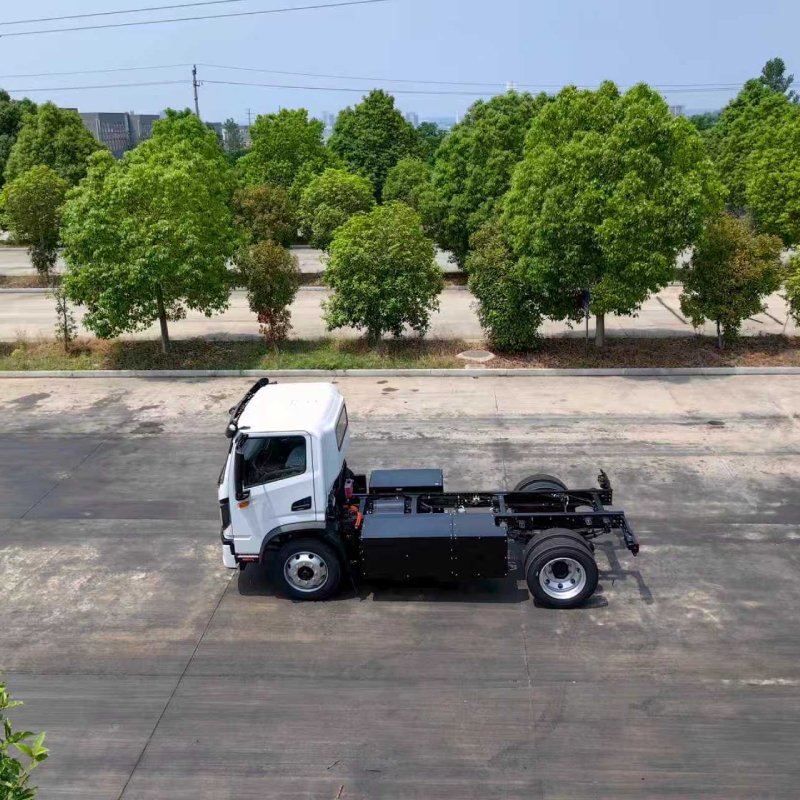

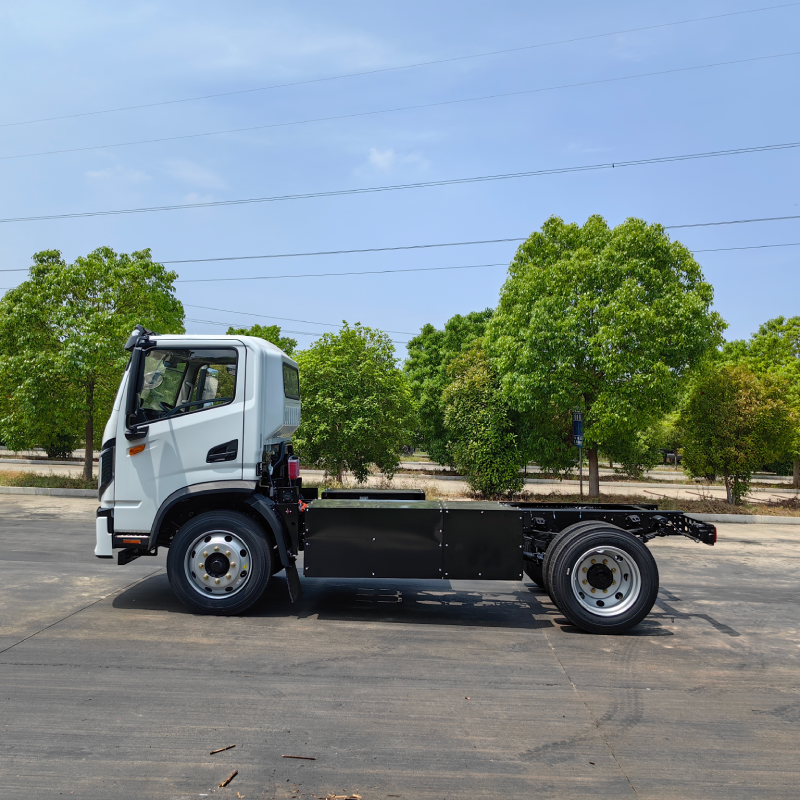

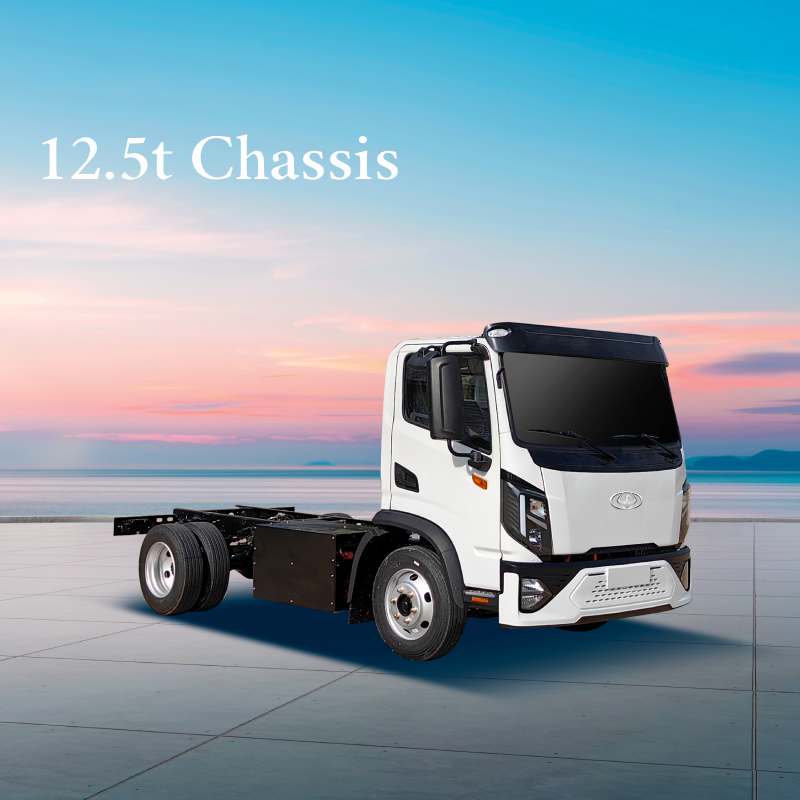

Product Appearance
Product Parameters
| CL1120JBEV | |||
| Size
Specifications |
Drive type | 4×2 | |
| Overall Dimensions（mm） | 5960×2370×2500 | ||
| Wheelbase（mm） | 3800 | ||
| Front/Rear Track（mm） | 1895/1802 | ||
| Front/Rear Overhang（mm） | 1250/910 | ||
| Weight Parameters | No-load | Curb Weight （kg） | 4480 |
| Front Axle Load / Rear Axle Load（kg） | 2570/1910 | ||
| Full-load | Gross Vehicle Weight（kg） | 12495 | |
| Front / Rear Axle Load（kg） | 3745/8750 | ||
| ThreeElectric Systems | Battery | Type | LFP |
| Battery capacity（kWh） | 142.19 | ||
| Assembly Nominal Voltage((V) | 618.24 | ||
| Motor | Type | PMSM | |
| Rated/Peak Power（kW） | 120/200 | ||
| Rated/Peak Torque（N·m） | 200/500 | ||
| Controller | Type | Five-in-one | |
| Charging Method | Fast Charging | ||
| Power Performance | Maximum Speed，km/h | 90 | |
| Maximum Gradeability，% | ≥30 | ||
| 0～50km/h Acceleration Time，s | ≤15 | ||
| Driving Range | 270 | ||
| Off Road Capability | Minimum Turning Diameter，m | 15.5 | |
| Minimum Ground Clearance，mm | 330 | ||
| Approach Angle | 20° | ||
| Departure Angle | 36° | ||
|
CL1120JBEV |
|||
|
Cabin |
Vehicle Width | 2080 | |
| Seat | Type | Driver's Airbag Seat | |
| Quantity | 3 | ||
| Adjustment method | 4-Way Adjustable Driver's Seat | ||
| Air conditioning | Electric AC | ||
| Heating | PTC Electric Heating | ||
| Shifting Mechanism | Rotary Gear Selector | ||
| Steering Wheel Type | Multifunction Steering Wheel | ||
| Central Control MP5 | 10.1-inch LCD screen | ||
| Dashboard Instruments | 7-inch LCD + Segment Display | ||
| Exterior Rearview Mirror | Type | Integrated Rearview Mirror | |
| Adjustment Method | Electric | ||
| Multimedia/Charging port | USB | ||
| Chassis | Transmission | Shifting Mechanism | AMT Automatic Transmission |
| Forward Gear Ratio | 6.75/3.16 | ||
| Reverse Gear Ratio | 6.75 | ||
| Rear Axle | Type | Air/Emergency brake cut-off | |
| Gear Ratio | 5.286 | ||
| Tire | Specification | 255/70R22.5 16PR | |
| Quantity | 6 | ||
| Leaf Spring | Front/Rear | 9/10+7 | |
| Steering System | Power Assist Type | EHPS(（Electric-Hydraulic Power Steering) | |
| Braking System | Braking Method | Air brake | |
| Brake | Drum brake | ||

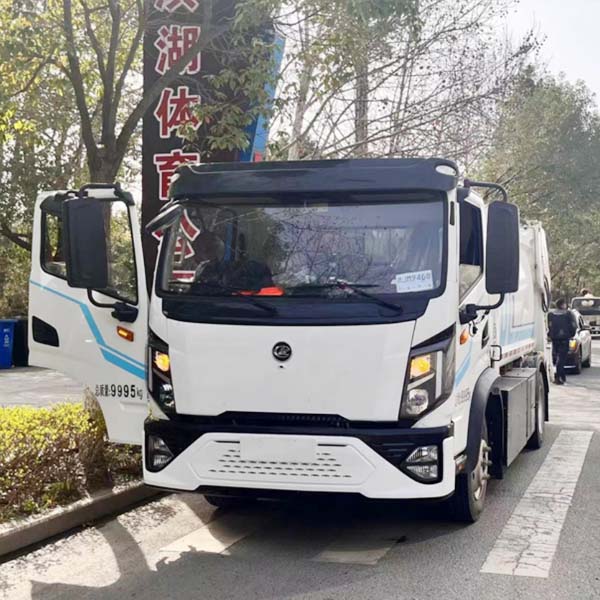

Applications
