Product Detail
High-Performance Operation
Enables waste loading and compaction to occur simultaneously, with both single and multiple-cycle modes; large loading volume combined with strong compression force significantly boosts working efficiency.
Excellent Sealing, No Leakage
Advanced standardized welding and assembly processes ensure superior vehicle consistency;
Horseshoe-style sealing strips offer resistance against oxidation, corrosion, and dripping;

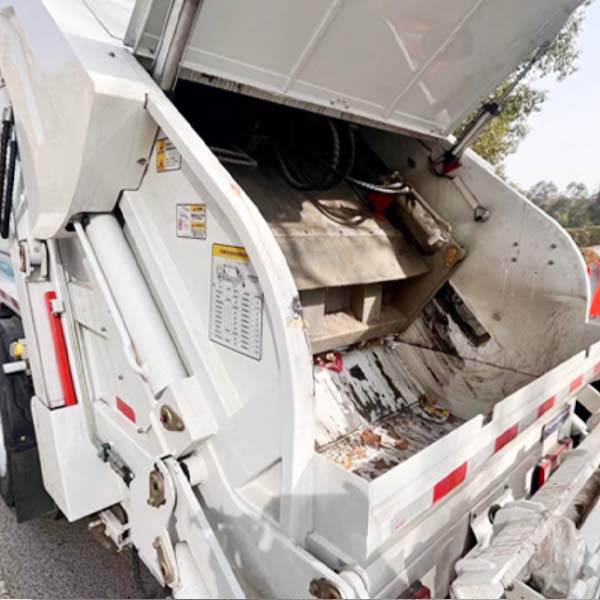

Cylinder-driven compactor cover fully seals the bin and compactor to prevent odors.
Large Capacity, Versatile Compatibility
8.5 m³ effective volume, far exceeding industry standards;
Capable of handling around 180 units (fully filled 240L bins), with a total load capacity of approximately 6 tons;
Compatible with 240L/660L plastic containers, 300L tipping metal bins, and semi-sealed hopper designs to meet diverse operational needs.

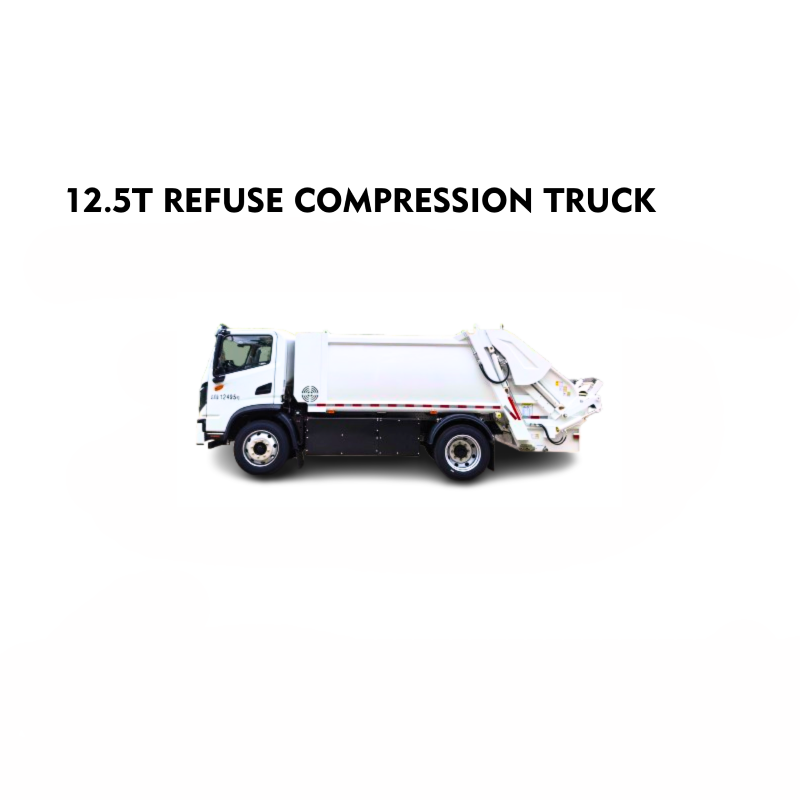

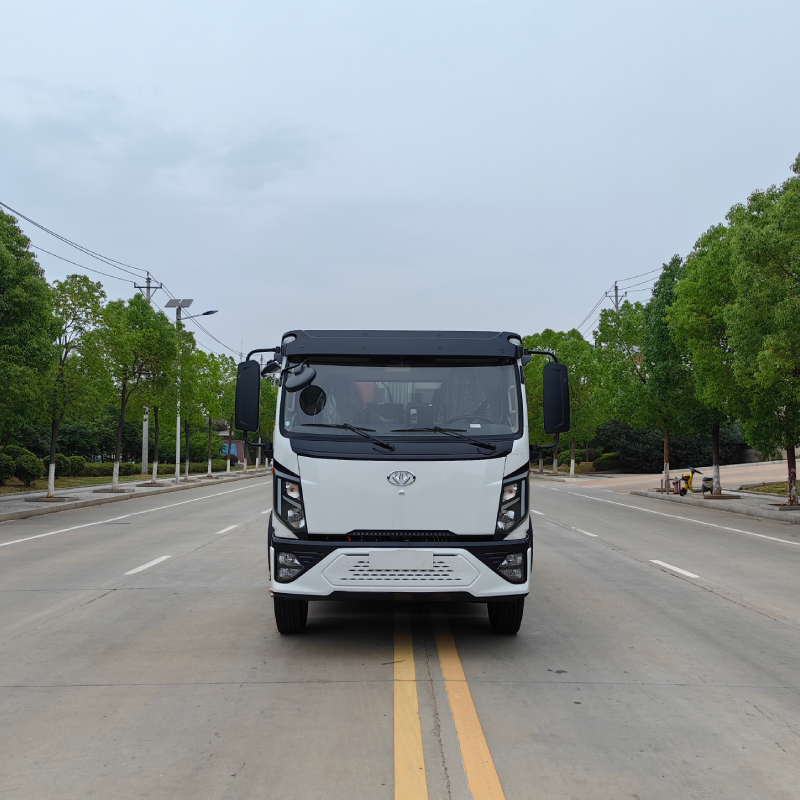

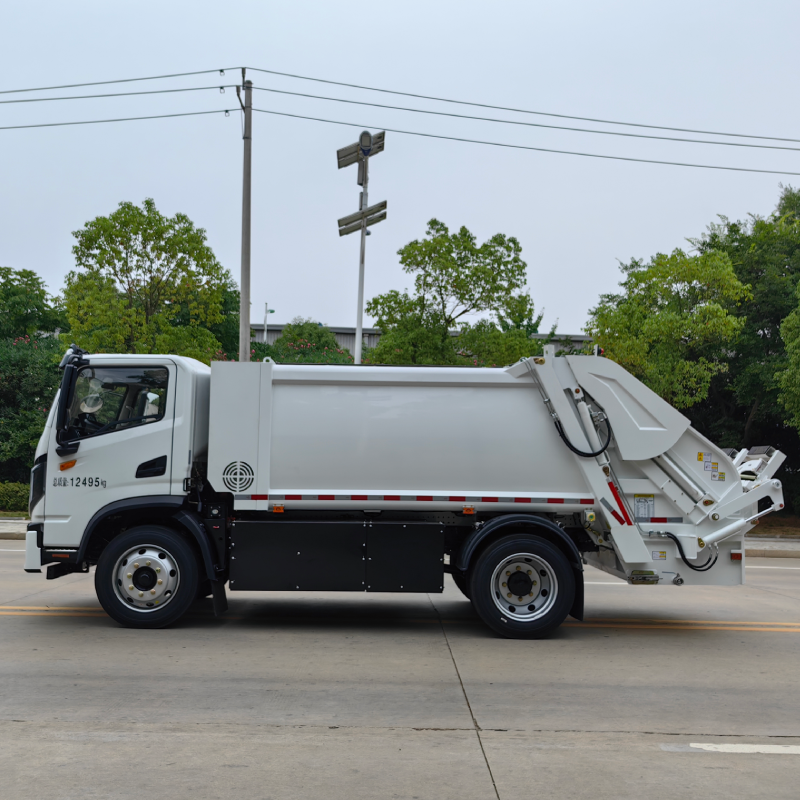

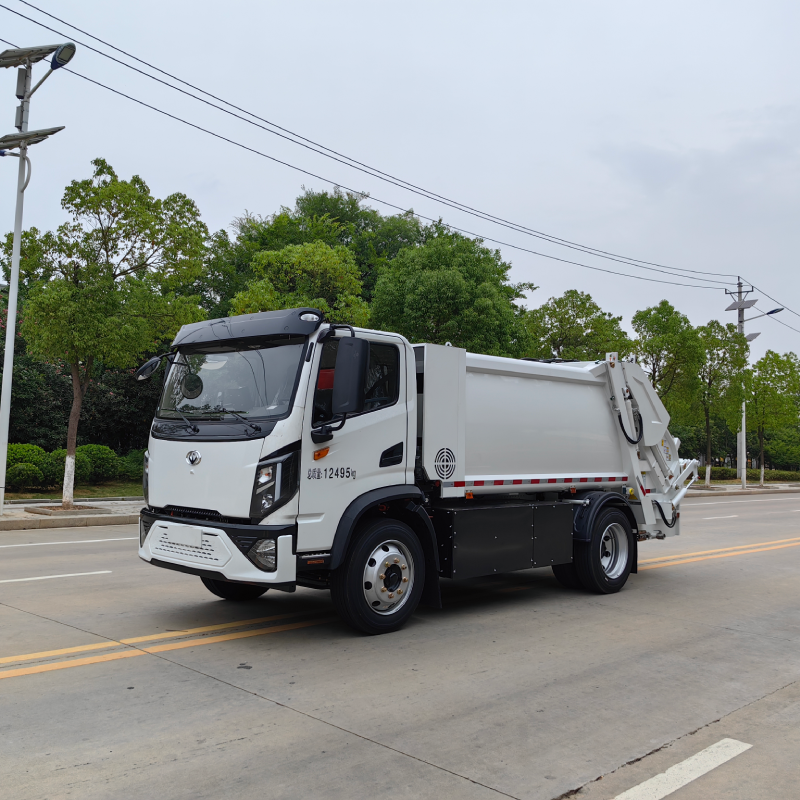

Product Appearance
Product Parameters
| Items | Parameter | Remark | |
| Approved Parameters |
Vehicle |
CL5125ZYSBEV
|
|
| Chassis |
CL1120JBEV
|
||
| Weight Parameters |
Max.Gross Vehicle Weight(kg) |
12495
|
|
| Curb Weight(kg) | 7960 | ||
| Payload(kg) | 4340 | ||
| Dimension Parameters |
Overall Dimensions(mm) | 7680×2430×2630 | |
| Wheelbase(mm) | 3800 | ||
| Front/Rear Overhang(mm) | 1250/2240 | ||
| Front/Rear Wheel Track(mm) | 1895/1802 | ||
| Power Battery | Type | Lithium Iron Phosphate | |
| Brand | CALB | ||
| Battery Capacity(kWh) | 142.19 | ||
| Chassis Motor | Type | Permanent Magnet Synchronous Motor | |
| Rated/Peak Power(kW) | 120/200 | ||
| Rated/Peak Torque(N·m) | 200/500 | ||
| Rated /Peak Speed(rpm) | 5730/12000 | ||
| Additional Parameters |
Max.Vehicle Speed(km/h) | 90 | / |
| Driving Range(km) | 270 | Constant Speed Method | |
| Charging Time(min) | 35 | 30%-80%SOC | |
| Superstructure Parameters |
Container Capacity
|
8.5m³ | |
| Packer Mechanism Capacity | 0.7m³ | ||
|
Packer Sewage Tank Capacity
|
340L | ||
|
Side-Mounted Sewage Container Capacity
|
360L | ||
|
Loading Cycle Time
|
≤15s | ||
|
Unloading Cycle Time
|
≤45s | ||
| Lifting Mechanism Cycle Time | ≤10s | ||
|
Hydraulic System Rated Pressure
|
18Mpa | ||
| Bin Lifting Mechanism Type | · Standard 2×240L plastic bins · Standard 660L bin liftingSemi-Sealed Hopper (Optional) |
||

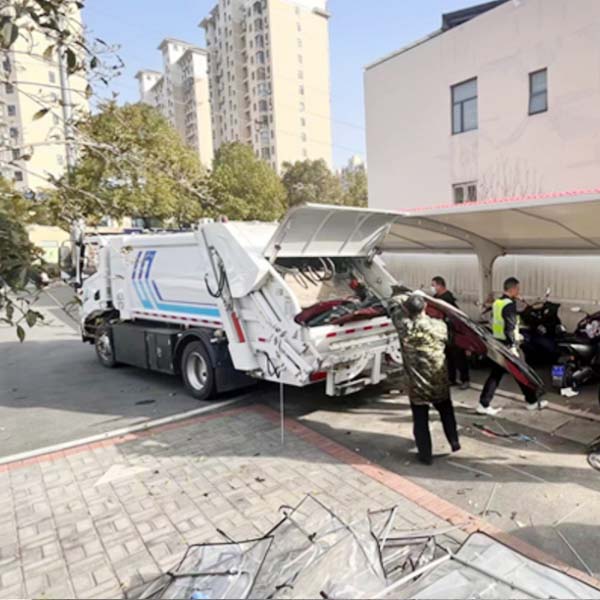

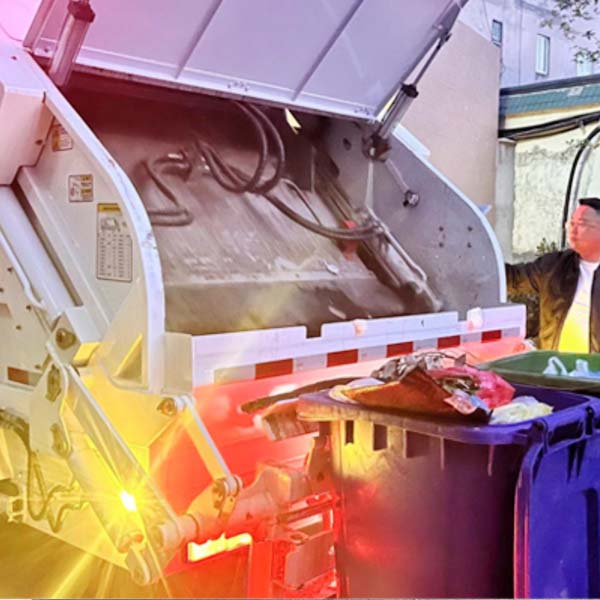

Applications
