Product Detail
Performance & Versatility
The vehicle supports a variety of operation modes, such as front flushing, dual rear flushing, rear spraying, side spraying, water spraying, and mist cannon use.
It is well-suited for road cleaning, watering, dust suppression, and sanitation operations across urban streets, industrial or mining areas, bridges, and other wide spaces.
Equipped with a reliable brand of mist cannon, available in different sizes and models, with spray coverage ranging 30m to 60m.
Large-Capacity Tank & Robust Design
Tank: 7.25 m³ effective volume—the largest capacity in its category.
Structure: Built from 510L/610L high-strength beam steel, treated with electrophoresis technology to ensure 6–8 years of corrosion resistance.
Durability: Protected with dense anti-corrosion coating and high-temperature baked paint for stronger adhesion and long-lasting appearance.
Intelligent & Safe Operation
Anti-Rollback System: Hill-start assist, EPB, and AUTOHOLD functions enhance stability on slopes.
Smart Monitoring: Real-time data collection and analysis of upper-body operations improves efficiency.
Reliable Pump: Premium water pump brand, trusted for durability and performance.

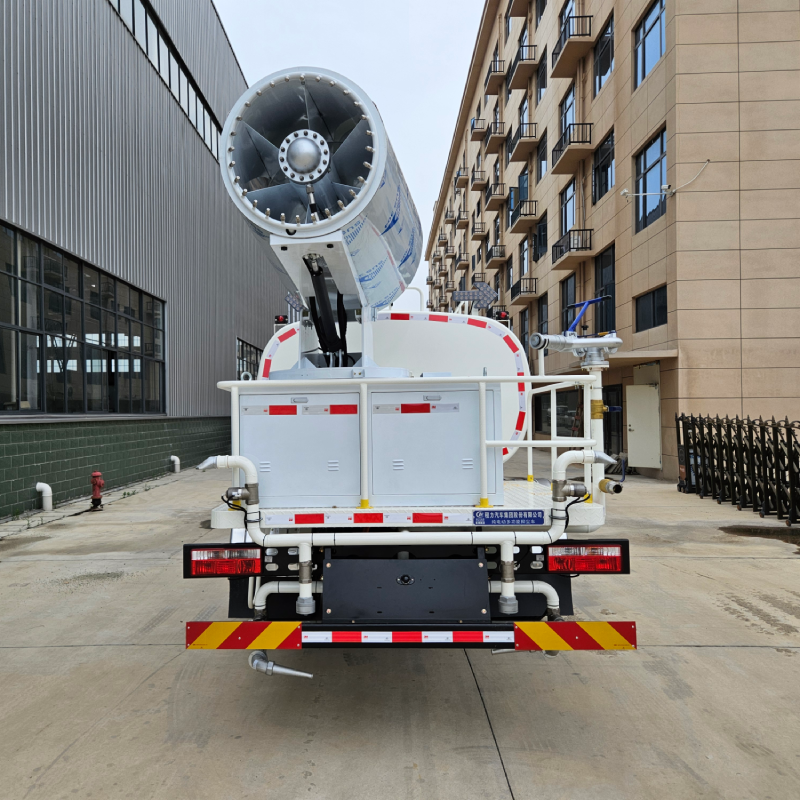

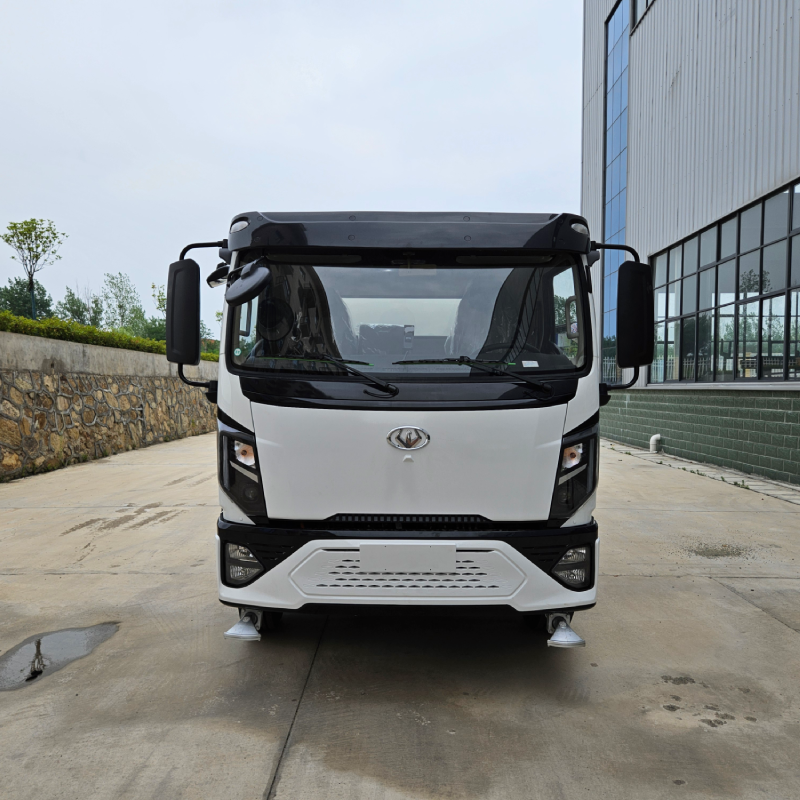

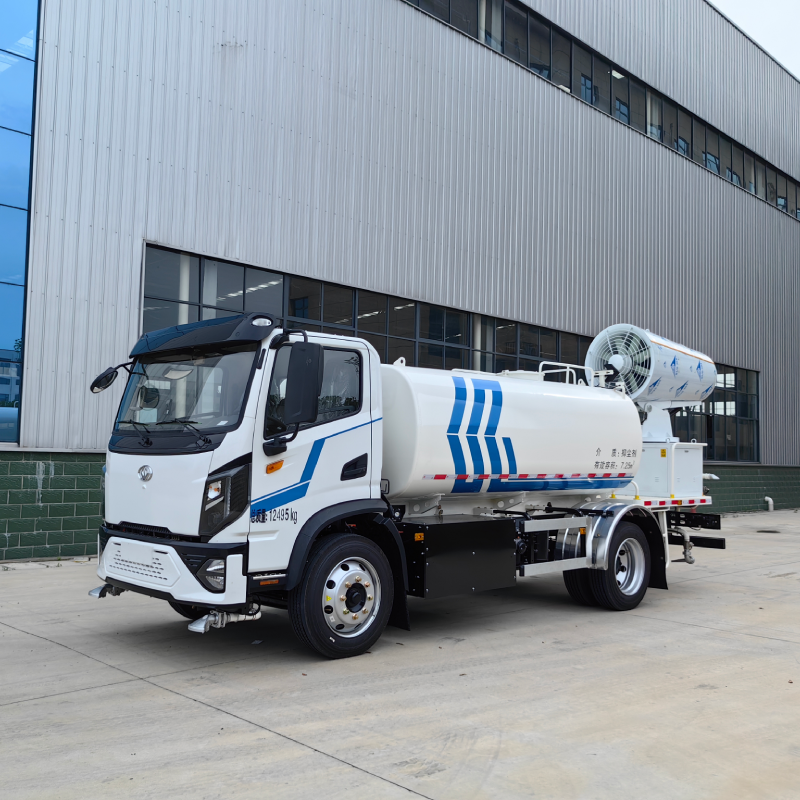

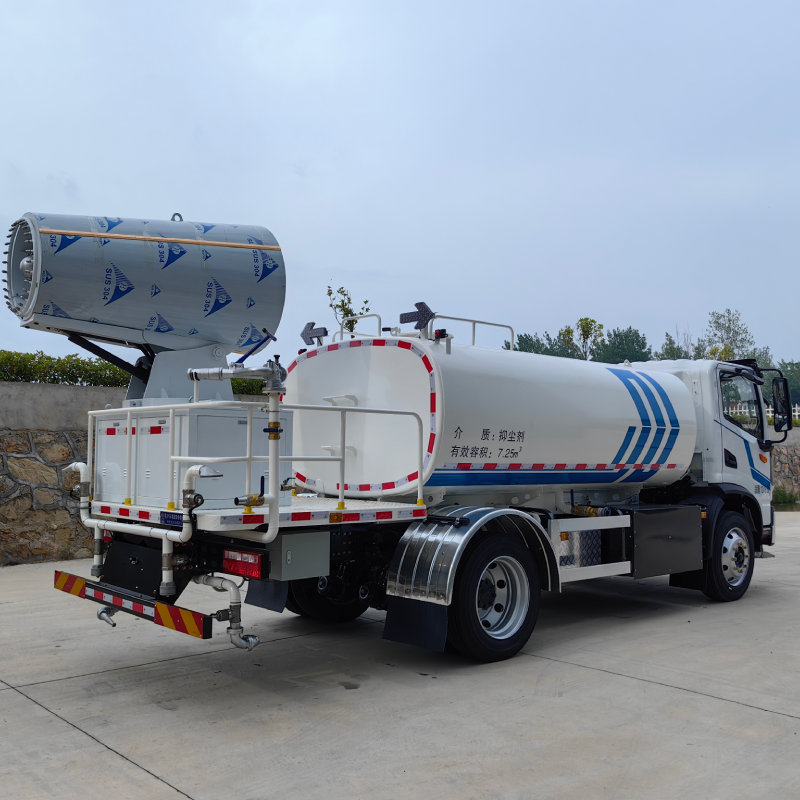

Product Appearance
Product Parameters
| Items | Parameter | Remark | |
| Approved Parameters |
Vehicle |
CL5122TDYBEV
|
|
| Chassis |
CL1120JBEV
|
||
| Weight Parameters |
Max.Gross Vehicle Weight(kg) | 12495 | |
| Curb Weight(kg) | 6500,6800 | ||
| Payload(kg) | 5800,5500 | ||
| Dimension Parameters |
Overall Dimensions(mm) | 7510,8050×2530×2810,3280,3350 | |
| Wheelbase(mm) | 3800 | ||
| Front/Rear Overhang(mm) | 1250/2460 | ||
| Front/Rear Wheel Track(mm) | 1895/1802 | ||
| Power Battery | Type | Lithium Iron Phosphate | |
| Brand | CALB | ||
| Battery Capacity(kWh) | 128.86/142.19 | ||
| Chassis Motor | Type | Permanent Magnet Synchronous Motor | |
| Rated/Peak Power(kW) | 120/200 | ||
| Rated/Peak Torque(N·m) | 200/500 | ||
| Rated /Peak Speed(rpm) | 5730/12000 | ||
| Additional Parameters |
Max.Vehicle Speed(km/h) | 90 | / |
| Driving Range(km) | 270/250 | Constant Speed Method | |
| Charging Time(min) | 35 | 30%-80%SOC | |
| Superstructure Parameters |
Water Tank Approved Effective Capacity (m³)
|
7.25 | |
|
Actual Capacity of Water Tank(m³)
|
7.61 | ||
|
Superstructure Motor Rated/Peak Power(kW)
|
15/20 | ||
|
Low-Pressure Water Pump Brand
|
Weijia | ||
|
Low-Pressure Water Pump Model
|
65QSB-40/45ZLD
|
||
|
Head(m)
|
45 | ||
|
Flow Rate(m³/h)
|
40
|
||
| Washing Width(m) | ≥16 | ||
|
Sprinkling Speed(km/h)
|
7~20 | ||
|
Water Cannon Range(m)
|
≥30 | ||
|
Fog Cannon Range(m)
|
30-60 | ||
Applications

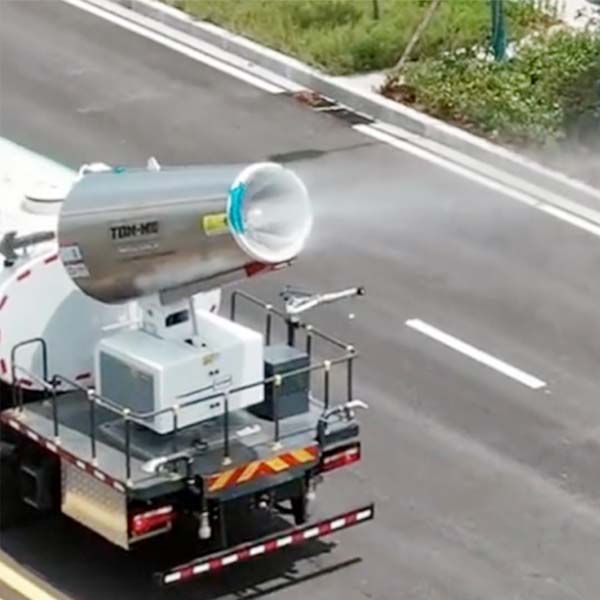

Fog Cannon
Water Cannon
Side Spraying

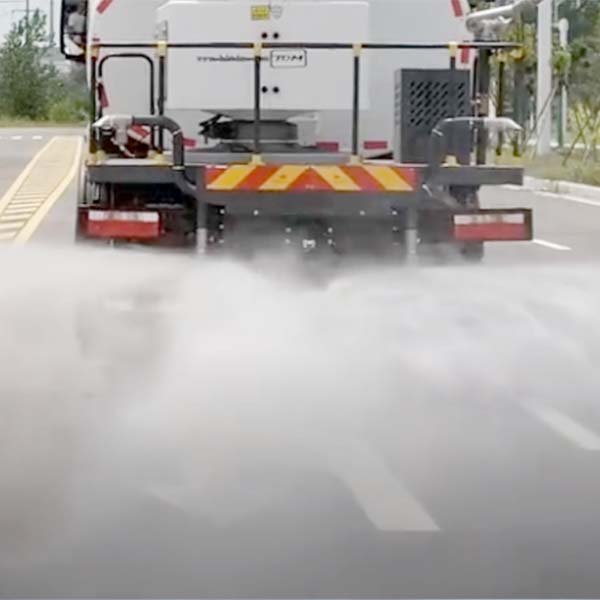

Rear Spraying
