Product Detail
High Efficiency
Supports simultaneous loading and compression with single or multiple cycles, enhancing efficiency with high loading capacity and compaction.
Powerful Protection –No Sewage or Odor Escape
Painting Process:All structural components are coated using electrophoretic painting, ensuring 6–8 years of corrosion resistance for enhanced durability and reliability;
Horseshoe-shaped sealing strips are used for superior oxidation resistance, corrosion protection, and leak prevention;
A filler cover is installed at the filler opening to shield the hopper, preventing garbage spillage and odor leakage.
High Capacity, Multiple Options,Intelligent Platforms
13m³ Large Capacity — Significantly Exceeds Industry Peers, Capable of Loading 250 Bins
Compatible with 240L/660L Plastic Bins, 300L Metal Barrel Lifting, and Semi-Sealed Hopper Tipping
Real-Time Vehicle Information Monitoring
Big Data on Upper-Body Operations;
Accurate Insight into Usage Patterns to Enhance Management Efficiency
Advanced Features:
360° Surround View System, Anti-Rollback, Auto Hold, Electronic Parking Brake, Cruise Control, Rotary Gear
Selector, and Low-Speed Creep Mode
Compatible with 240L/660L Plastic Bins, 300L Metal Barrel Lifting, and Semi-Sealed Hopper Tipping
Real-Time Vehicle Information Monitoring
Big Data on Upper-Body Operations;
Accurate Insight into Usage Patterns to Enhance Management Efficiency
Advanced Features:
360° Surround View System, Anti-Rollback, Auto Hold, Electronic Parking Brake, Cruise Control, Rotary Gear
Selector, and Low-Speed Creep Mode

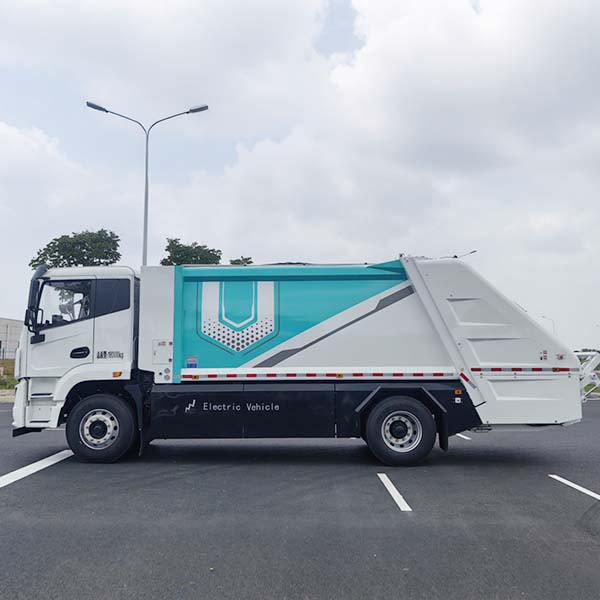

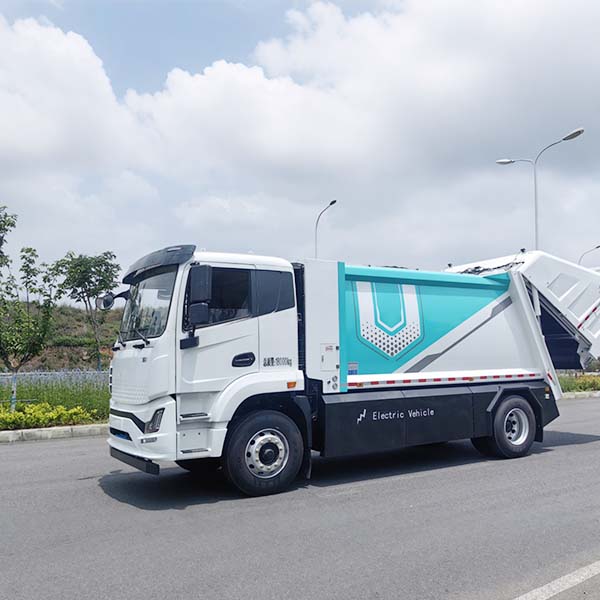

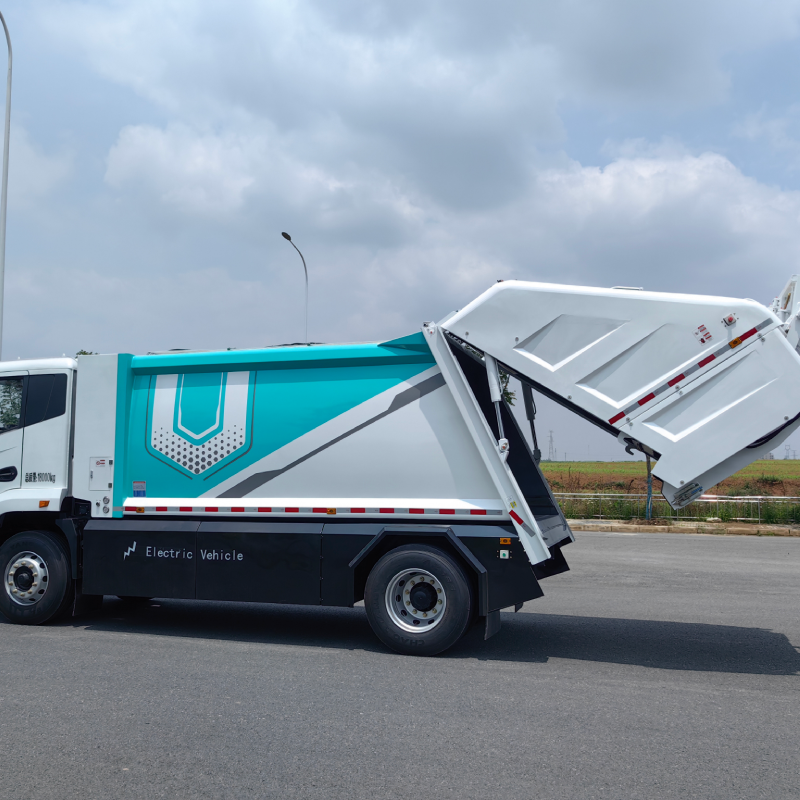

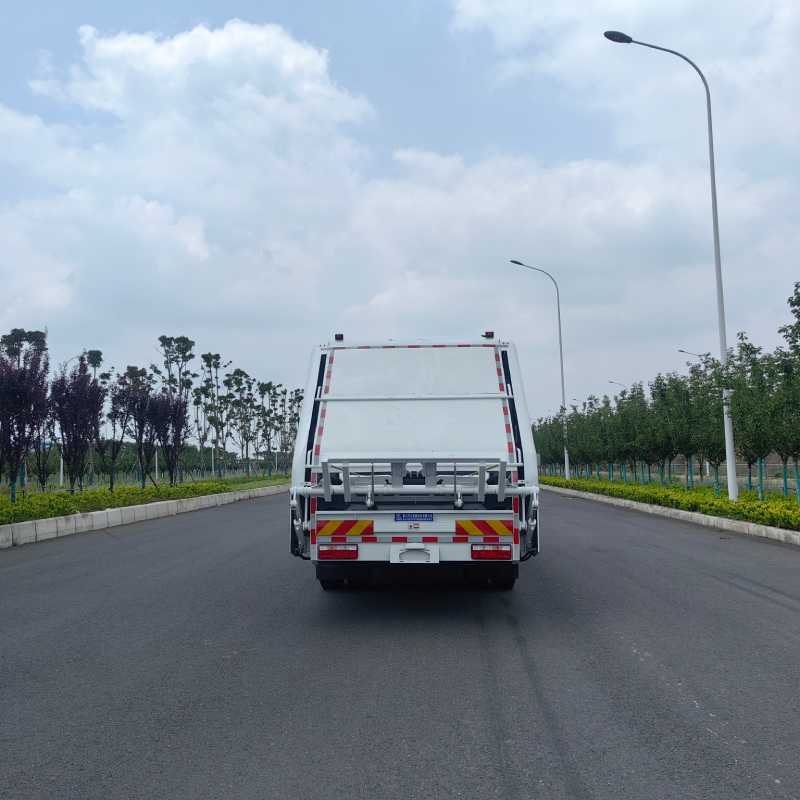

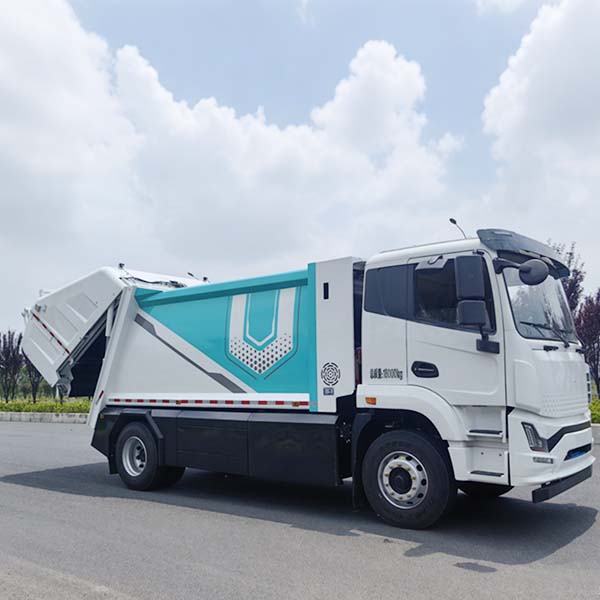

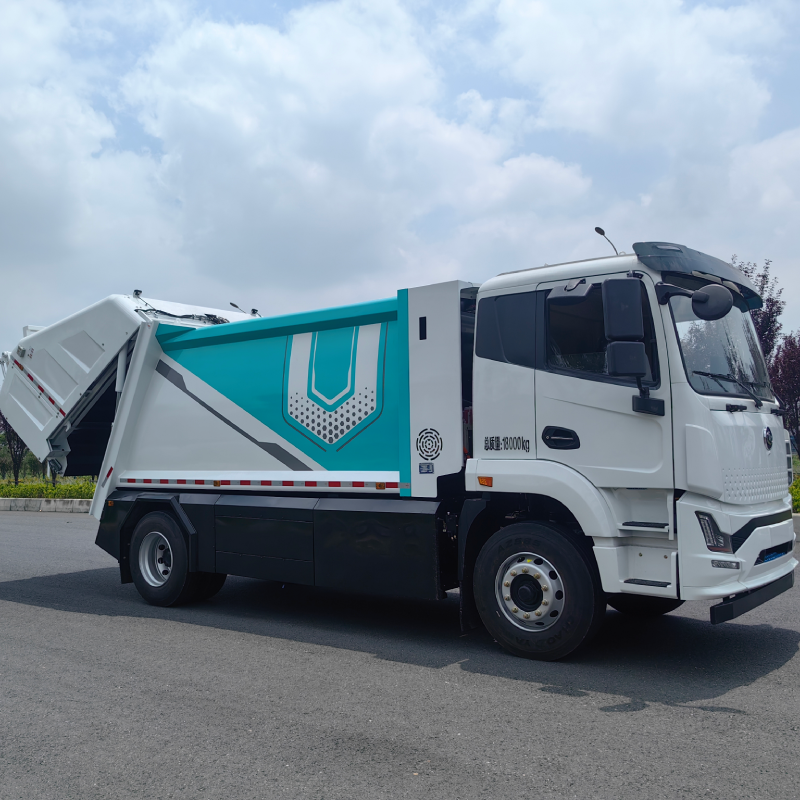

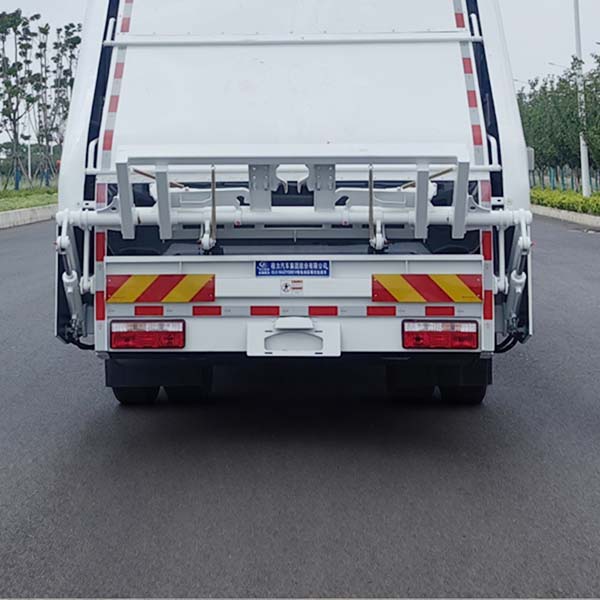

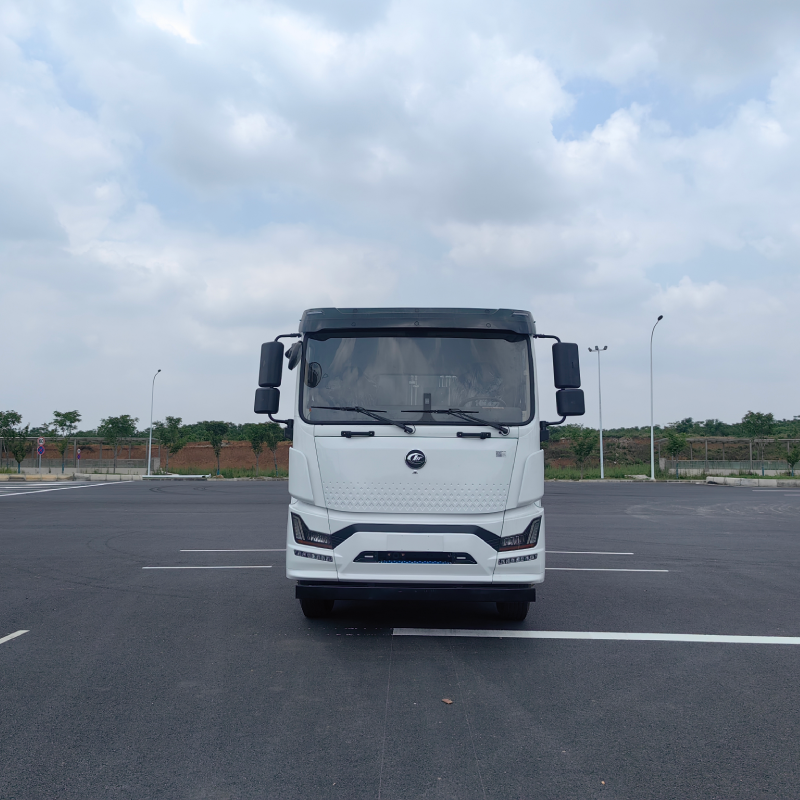

Product Appearance
Product Parameters
| Items | Parameter | Remark | |
| Approved Parameters |
Vehicle |
CL5184ZYSBEV
|
|
| Chassis |
CL1180JBEV
|
||
| Weight Parameters |
Max.Gross Vehicle Weight(kg) | 18000 | |
| Curb Weight(kg) | 11500,11850 | ||
| Payload(kg) | 6370,6020 | ||
| Dimension Parameters |
Overall Dimensions(mm) | 8935,9045,9150×2550×3200 | |
| Wheelbase(mm) | 4500 | ||
| Front/Rear Overhang(mm) | 1490/2795 | ||
| Front/Rear Wheel Track(mm) | 2016/1868 | ||
| Power Battery | Type | Lithium Iron Phosphate | |
| Brand | CALB | ||
| Battery Capacity(kWh) | 194.44 | ||
| Chassis Motor | Type | Permanent Magnet Synchronous Motor | |
| Rated/Peak Power(kW) | 120/200 | ||
| Rated/Peak Torque(N·m) | 500/1000 | ||
| Rated /Peak Speed(rpm) | 2292/4500 | ||
| Additional Parameters |
Max.Vehicle Speed(km/h) | 90 | / |
| Driving Range(km) | 300 | Constant Speed Method | |
| Charging Time(min) | 35 | 30%-80%SOC | |
| Superstructure Parameters |
Container Capacity
|
13m³ | |
| Packer Mechanism Capacity | 1.8m³ | ||
|
Packer Sewage Tank Capacity
|
520L | ||
|
Side-Mounted Sewage Tank Capacity
|
450L | ||
|
Loading Cycle Time
|
≤25s
|
||
|
Unloading Cycle Time
|
≤45s | ||
|
Lifting Mechanism Cycle Time
|
≤10s | ||
|
Hydraulic System Rated Pressure
|
18MPa | ||
| Bin Lifting Mechanism Type | · Standard 2×240L plastic bins · Standard 660L bin lifterSemi-Sealed Hopper (Optional) |
||
