High Efficiency&Versatile Functions
Equipped with multiple operation modes including front flushing, rear dual flushing, rear spraying, side spraying, and water cannon.
Suitable for road cleaning, sprinkling, dust suppression, and sanitation tasks on urban roads, industrial and mining sites, bridges, and other large areas.
High-Performance Tank with Large Capacity
Lightweight vehicle design with a 12m³ water tank actual volume;
Made from high-strength 510L/610L beam steel and treated with international-standard electrophoresis
for 6-8 years of corrosion resistance;
Durable and reliable with a dense anti-corrosion coating;
High temperature baking paint ensures stronger adhesion and long-lasting finish.
Smart and Safe, Reliable Performance
Anti-rollback: When the vehicle is on a slope, the system activates anti-rollback function by controling the motor at zero speed, preventing the vehicle
from rolling backward.
Tire Pressure Monitoring System: Continuously monitors tire pressure and temperature in real time, providing instant feedback on tire status to
enhance driving safety.
Electric Power Steering: Offers effortless steering and automatic return-to-center functionality, enabling intelligent power assist for improved driver
interaction and control.
360° Surround View System: Achieves full 360° visibility through cameras positioned at the front, both sides, and rear of the vehicle; also functions
as a driving recorder (DVR).
Ease of Use: Equipped with electronic parking brake, cruise control, rotary gear selector, silent mode, and an integrated cab-hydraulic lifting system.
Items | Parameter | Remark | |
Approved Parameters |
Vehicle |
CL5185GSSBEV
|
|
Chassis |
CL1180JBEV
|
||
Weight Parameters |
Max.Gross Vehicle Weight(kg) | 18000 | |
Curb Weight(kg) | 7650 | ||
Payload(kg) | 10220 | ||
Dimension Parameters |
Length × Width × Height(mm)
|
7860,7840,7910,8150,8380×2550×3050 | |
Wheelbase(mm) | 4500 | ||
Front/Rear Overhang(mm) | 1490/1740,1490/1850 | ||
Power Battery | Type | Lithium Iron Phosphate | |
Brand | CALB | ||
Battery Configuration
|
D173F305-1P33S
|
||
Battery Capacity(kWh) | 162.05 | ||
Nominal Voltage(V)
|
531.3 | ||
Nominal Capacity(Ah)
|
305 | ||
Battery System Energy Density(w·hkg)
|
156.8 | ||
Chassis Motor |
Manufacturer / Model
|
CRRC/TZ366XS5OE
|
|
Type | Permanent Magnet Synchronous Motor | ||
Rated/Peak Power(kW) | 120/200 | ||
Rated/Peak Torque(N·m) | 500/1000 | ||
Rated /Peak Speed(rpm) | 2292/4500 | ||
Additional Parameters |
Max.Vehicle Speed(km/h) | 90 | / |
Driving Range(km) | 230 | Constant Speed Method | |
Charging Time(min) | 0.5 | 30%-80%SOC | |
Superstructure Parameters |
Tank Dimensions:
Length × Major Axis × Minor Axis (mm)
|
4500×2200×1350
|
|
Water Tank Approved Effective Capacity(m³)
|
10.2 | ||
Actual Capacity(m³)
|
12 | ||
Low-Pressure Water Pump Brand
|
WLOONG | ||
Low-Pressure Water Pump Model
|
65QZ-50/110N-K-T2-YW1
|
||
Head(m)
|
110 | ||
Flow Rate(m³/h)
|
50 | ||
Washing Width(m)
|
≥24
|
||
Sprinkling Speed(km/h)
|
7~20 | ||
Water Cannon Range(m)
|
≥40 |
Water Cannon

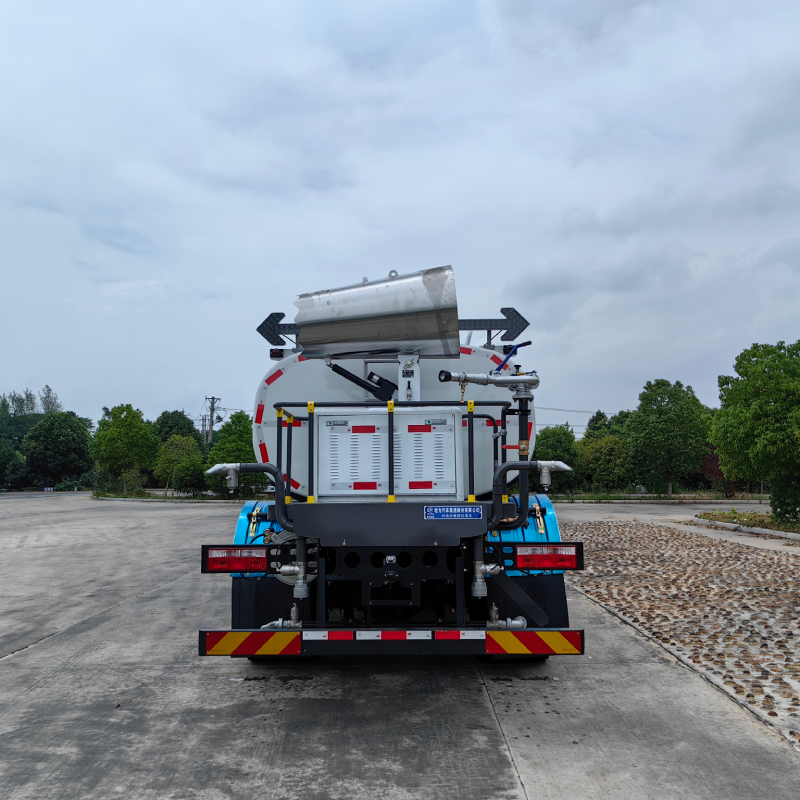

Rear Spraying

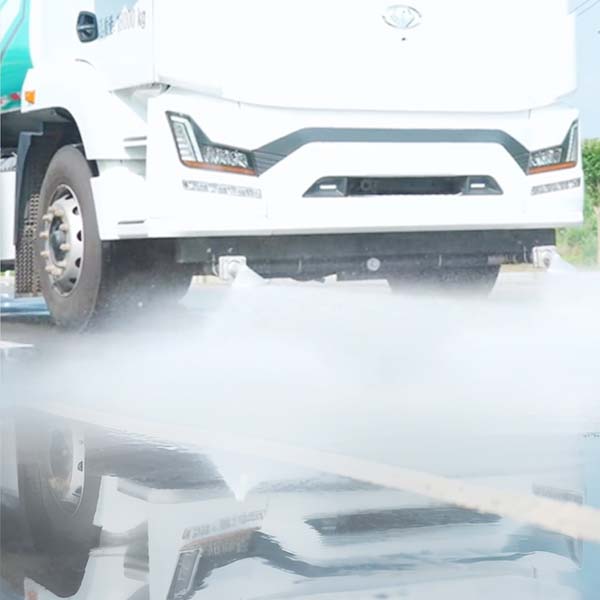

Front Spraying

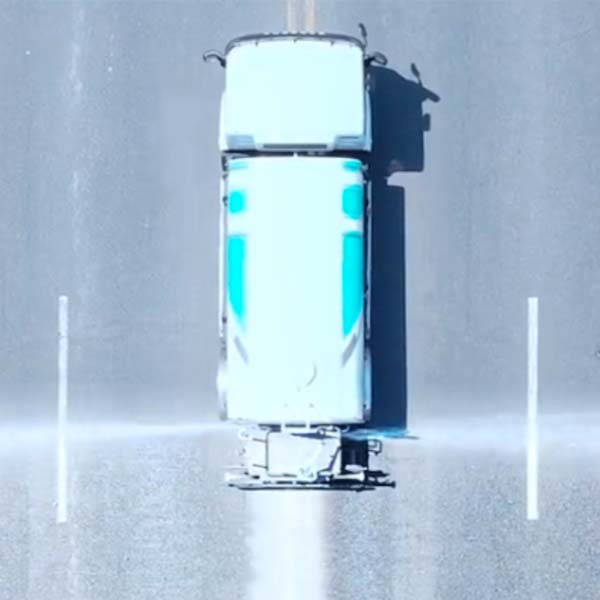

Dual Flushing
