Efficient In-House Chassis & Smart Control
Yiwei’s self-developed chassis integrates seamlessly with the body, reserving space for attachments while maintaining structural integrity and corrosion resistance.
Integrated thermal management and high-efficiency electric system ensure optimal power and energy savings.
Real-time vehicle and attachment data monitoring improves operational management.
Safe, Reliable & Easy to Operate
Batteries and motors with IP68 protection, equipped with over-temperature, overload, and short-circuit safeguards.
360° surround view system and hill-hold function enhance driving safety.
Cabin features include electronic parking brake, auto hold, rotary gear selector, low-speed creep mode, and hydraulic cab lift for easy operation.
Fast Charging & Comfortable Experience
Dual fast-charging ports: SOC 30%→80% in just 60 minutes, supporting long-duration operations.
Integrated body control screen displays real-time operation data and fault status.
Comfortable cabin with air-cushioned seats, floating suspension, automatic air-conditioning, flat-through floor, multi-function steering wheel, and ample storage space.

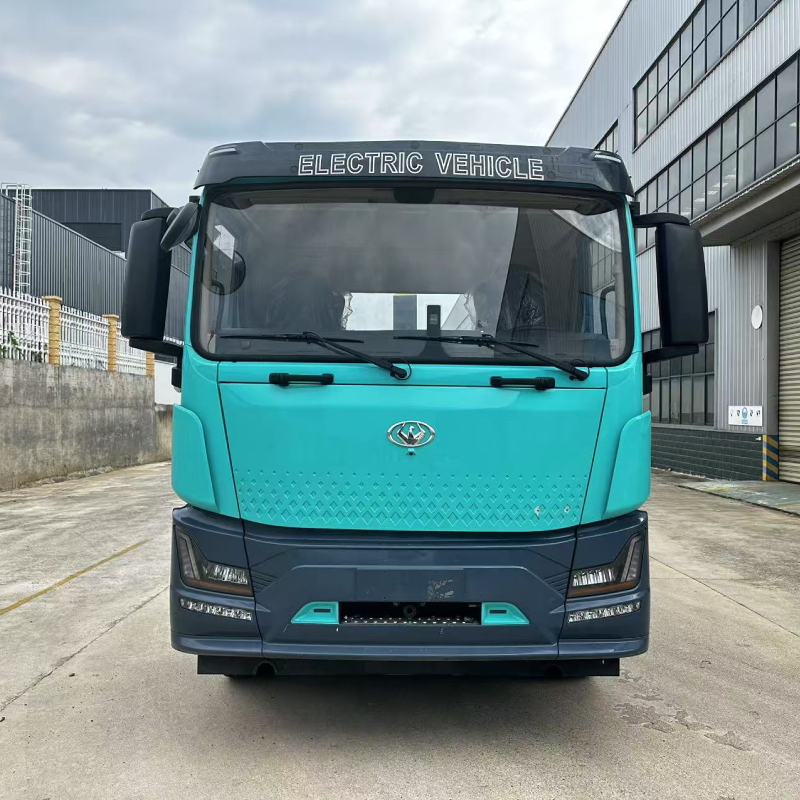

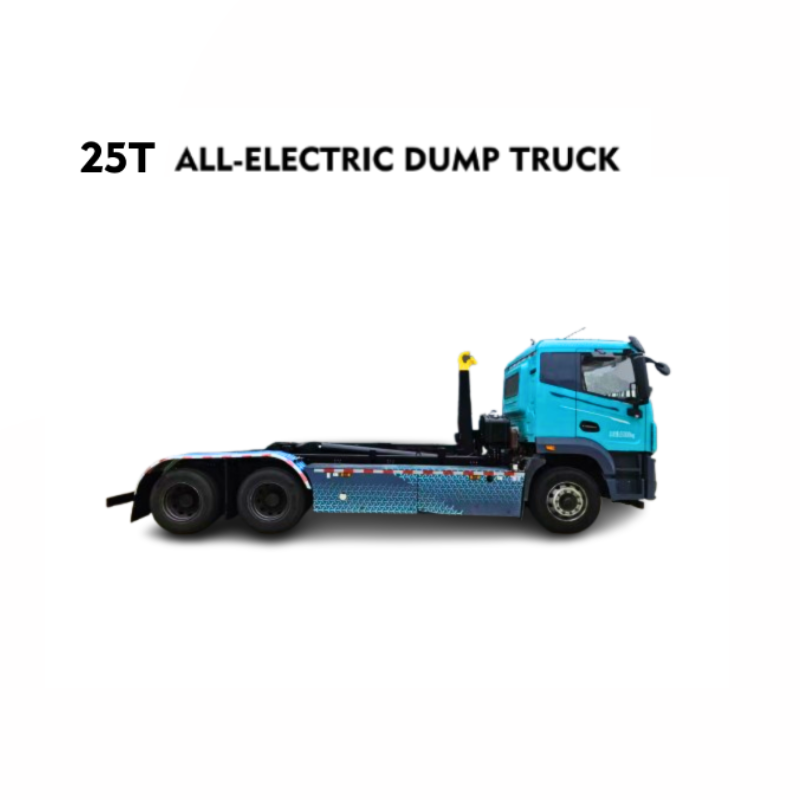

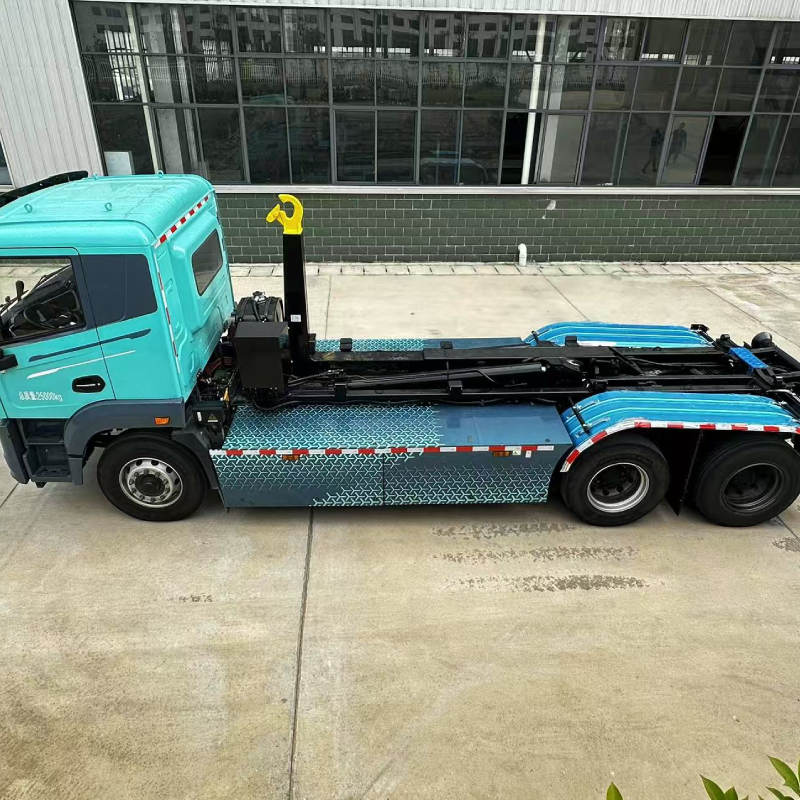

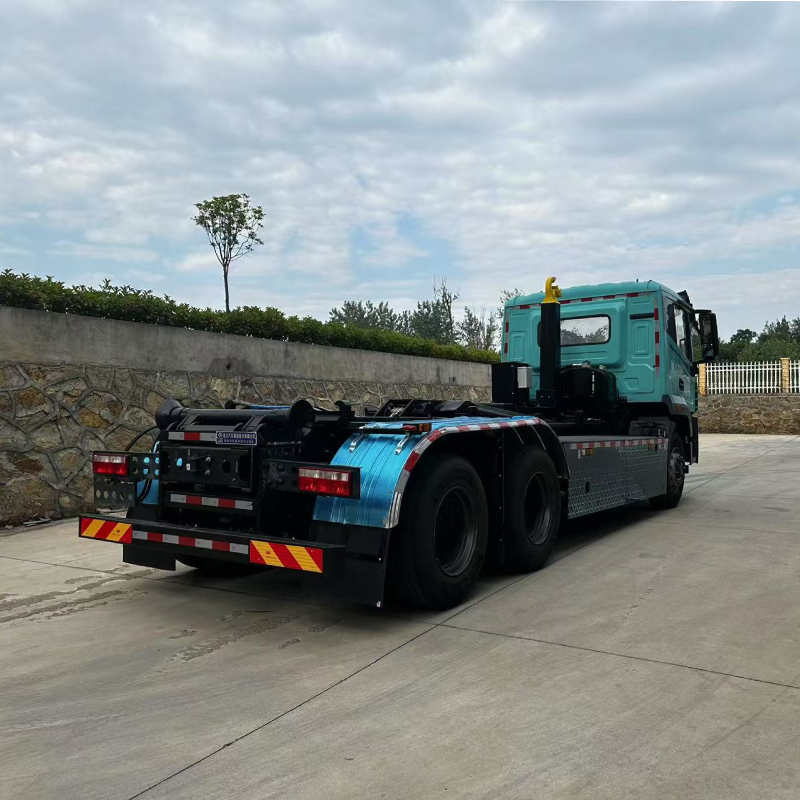

Product Appearance
Product Parameters
| Items | Parameter | Remark | |
| Approved Parameters |
Vehicle |
CL5251ZXXBEV
|
|
| Chassis |
CL1250JBEV
|
||
| Weight Parameters |
Max.Gross Vehicle Weight(kg) |
25000
|
|
| Curb Weight(kg) |
11800
|
||
| Payload(kg) |
13070
|
||
| Dimension Parameters |
Overall Dimensions(mm) |
8570×2550×3020
|
|
| Wheelbase(mm) |
4500+1350
|
||
| Front/Rear Overhang(mm) |
1490/1230
|
||
| Approach Angle / Departure Angle (°) |
20/20
|
||
| Power Battery | Type | Lithium Iron Phosphate | |
| Brand | CALB | ||
| Battery Capacity(kWh) |
244.39
|
||
| Nominal Voltage(V) |
531.3
|
||
| Nominal Capacity(Ah) |
460
|
||
| Battery System Energy Density(w·hkg) |
156.60，158.37
|
||
| Chassis Motor | Type | Permanent Magnet Synchronous Motor | |
| Manufacturer | CRRC | ||
| Rated/Peak Power(kW) |
250/360
|
||
| Rated/Peak Torque(N·m) | 480/1100 | ||
| Rated /Peak Speed(rpm) |
4974/12000
|
||
| Additional Parameters |
Max.Vehicle Speed(km/h) | 89 | / |
| Driving Range(km) | 265 | Constant Speed Method | |
| Minimum Turning Diameter (m) | 19 | ||
| Minimum Ground Clearance (m) | 260 | ||
| Superstructure Parameters |
Lifting Capacity (T)
|
20 | |
|
Unloading Angle (°)
|
52 | ||
|
Horizontal Distance from Hook Center
to Rear Tipping Pivot(mm)
|
5360 | ||
|
Horizontal Sliding Distance of Hook Arm(mm)
|
1100 | ||
|
Hook Center Height (mm)
|
1570 | ||
|
Container Track Outer Width (mm)
|
1070 | ||
|
Container Loading Time (s)
|
≤52
|
||
|
Container Unloading Time (s)
|
≤65
|
||
|
Lifting and Unloading Time (s)
|
≤57
|
||
Applications
Watering truck
Dust suppression truck
Compressed garbage truck
Kitchen waste truck
