31T Electric Chassis

The 31-ton pure electric hook lift truck is ideal for urban solid waste and sanitation operations, efficiently transporting heavy-load municipal, food, and wet waste between transfer stations and disposal sites. Its high payload capacity, stable full-load performance, and fast hook lift container swapping enable continuous multi-station operations, while zero-emission, low-noise electric drive makes it suitable for urban cores and nighttime collection. With long range, fast charging, and reduced maintenance costs, it supports city low-carbon initiatives and maximizes operational efficiency.

Product Detail

High Performance & Extended Range
· 31-ton electric hook lift truck with a 405.5 kWh battery and 410 kW peak power motor.
· Full-load speed up to 40 km/h and range up to 320 km, capable of handling heavy-duty waste transfer and steep inclines.
· Dual fast-charging allows 30%→80% SOC in 45 minutes, supporting full-day multi-station operations.

Optimized Design & Increased Payload
· Based on a self-developed 31-ton chassis, now extended to 9,472 mm, increasing payload by 20% to 19 tons.
· Structural upgrades and technical optimizations enhance operational efficiency and reliability.

Durable & High-Quality Construction
· Hook lift body components individually sandblasted and coated for superior corrosion protection.
· Hook arm and main frame made of high-strength, tough SSAB steel from Sweden, ensuring stability under heavy-duty use.

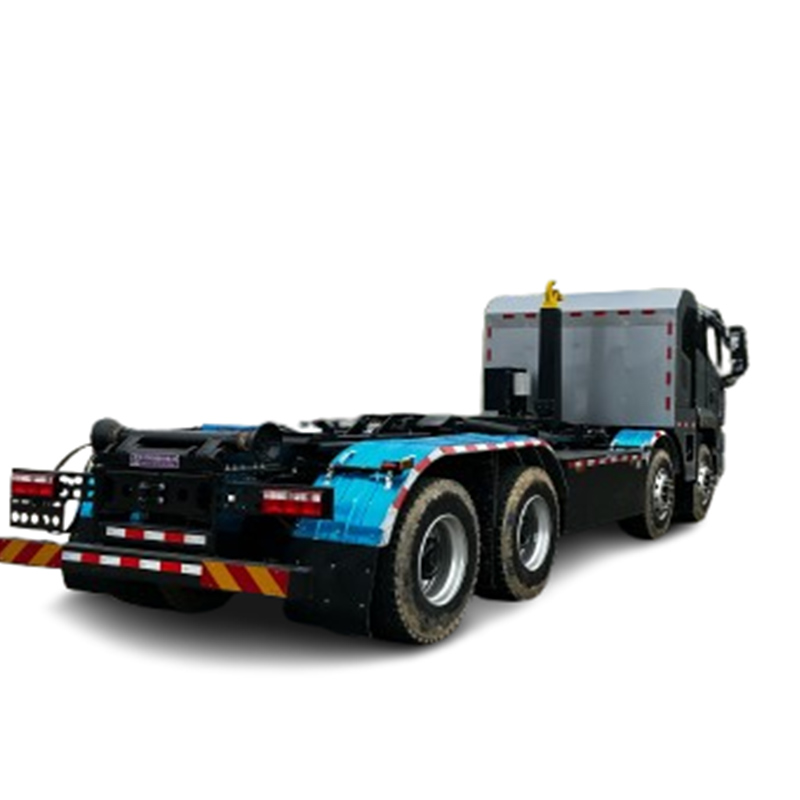

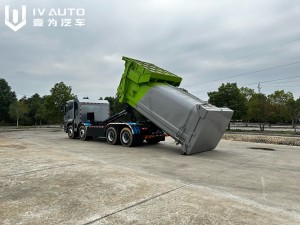

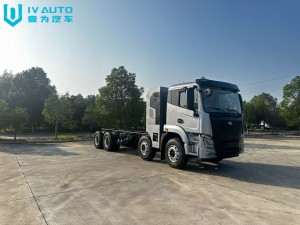

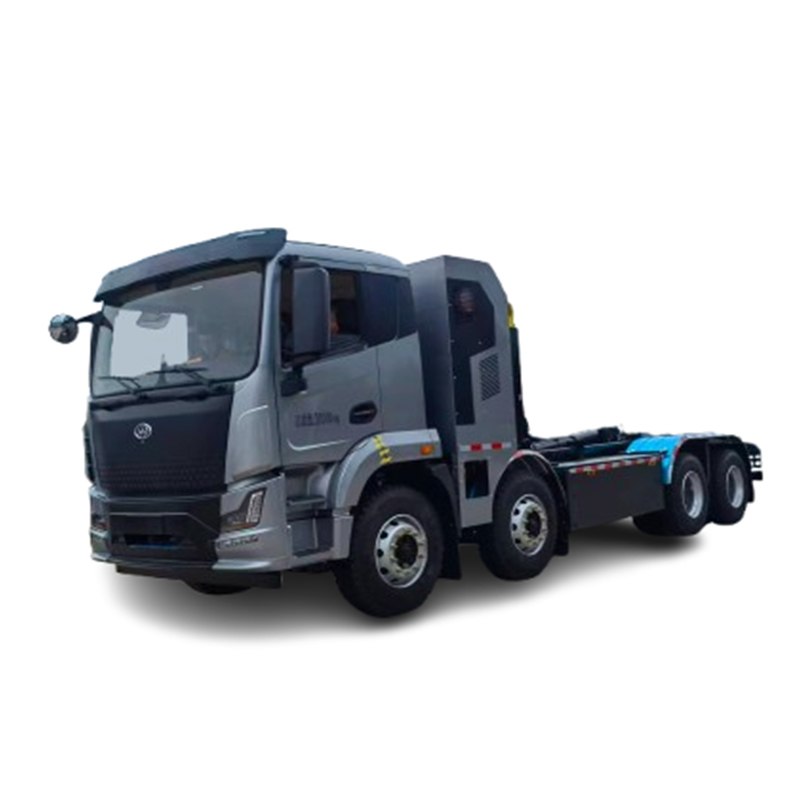

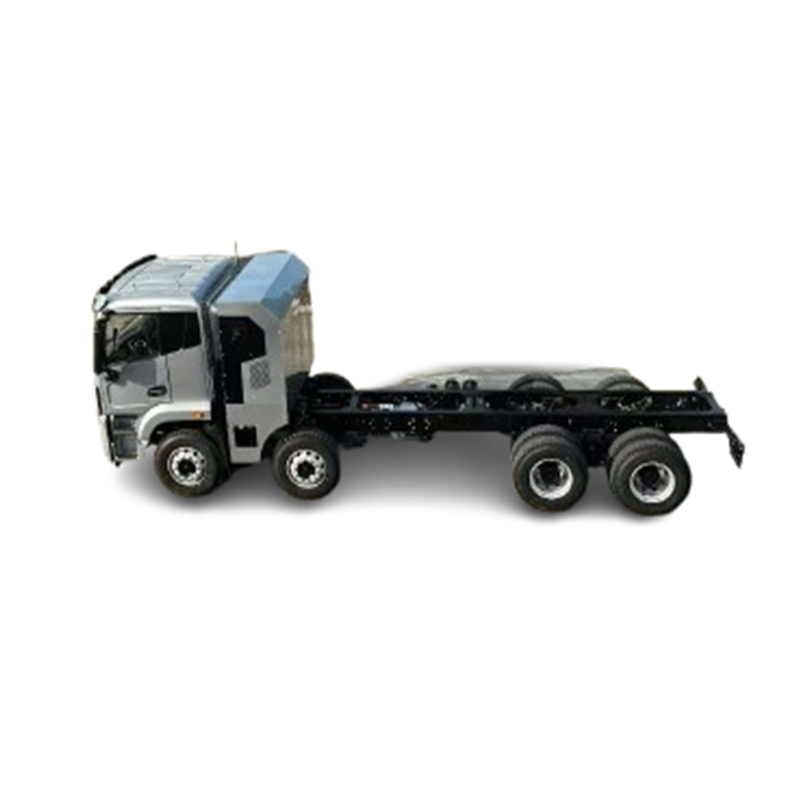

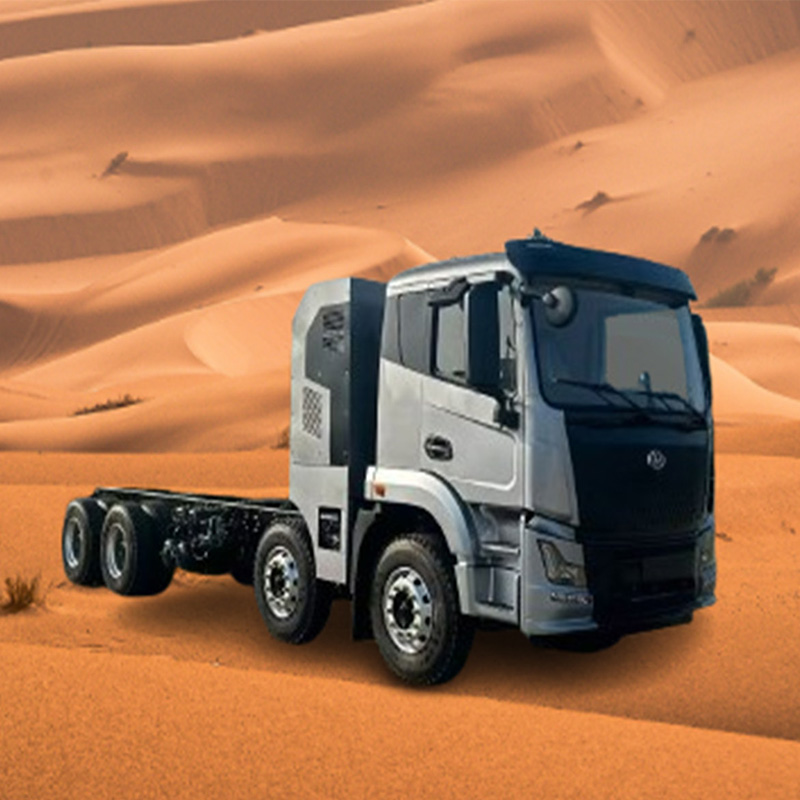

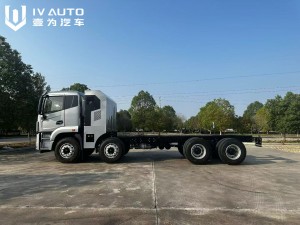

Product Appearance

Product Parameters

Chassis Model				CL1310JBEV Chassis
Battery Lay-out				Rear-mounted 405.5kWh
Basic configuration	Size Specifi-cations	Drive type		8×4
		Overall Dimensions（mm）		9480×2520×3050
		Wheelbase（mm）		1800+3500+1350
		Front /Rear wheel track（mm）		2075/2075/1864/1864
		Front /Rear overhang（mm）		1490/1340
	Weight Param -eters	No-load	Curb weight（kg）	11800
			Front/Rear axle load（kg）	3720/3650/4430（Two-Axle Assembly）
		Full-load	Gross vehicle weight（kg）	31000
			Front/Rear axle load（kg）	6500/6500/18000(Two-Axle Assembly)
	Three Electric Systems	Battery	Type	LFP（Gotion）
			Battery capacity（kWh）	405.5
			Assembly nominal voltage(V)	614.4
		Motor	Type	PMSM
			Rated/Peak power（kW）	263/410kW
			Rated/Peak torque（N·m）	600/1200
		controller	Type	Four-in-one
		Charging method		Fast charging
	Power Perfor-mance	Max. vehicle speed，km/h		89
		Max. gradeability，%		≥35
		0～50km/h Acceleration Time，s		≤15
	Driving Range(Constant speed method)			360
	Passability	Min. turning diameter，m		21
		Min. ground clearance，mm		350
		Approach angle		20°
		Departure Angle		32°
