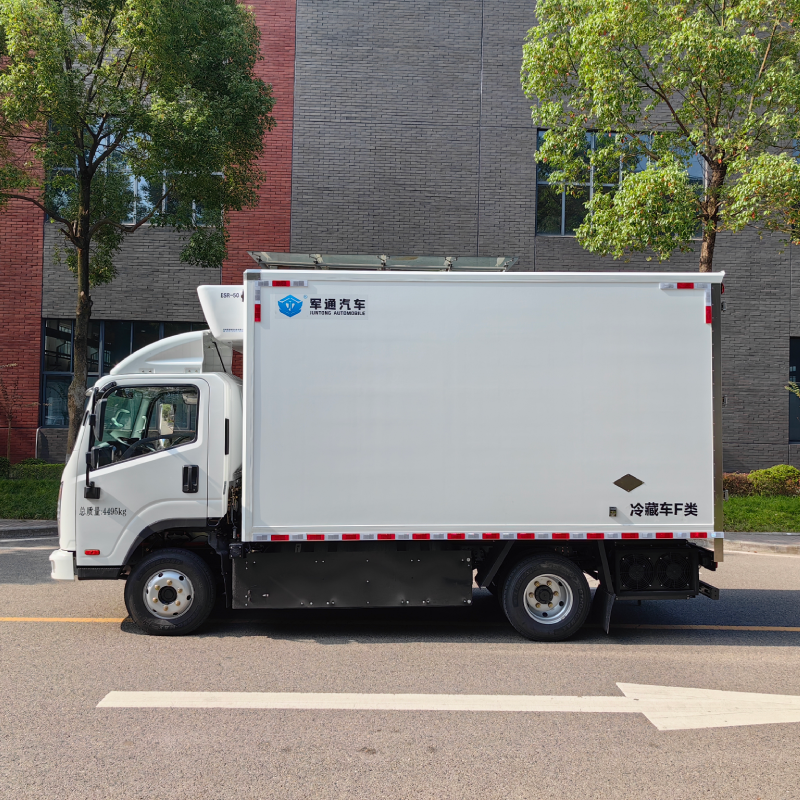

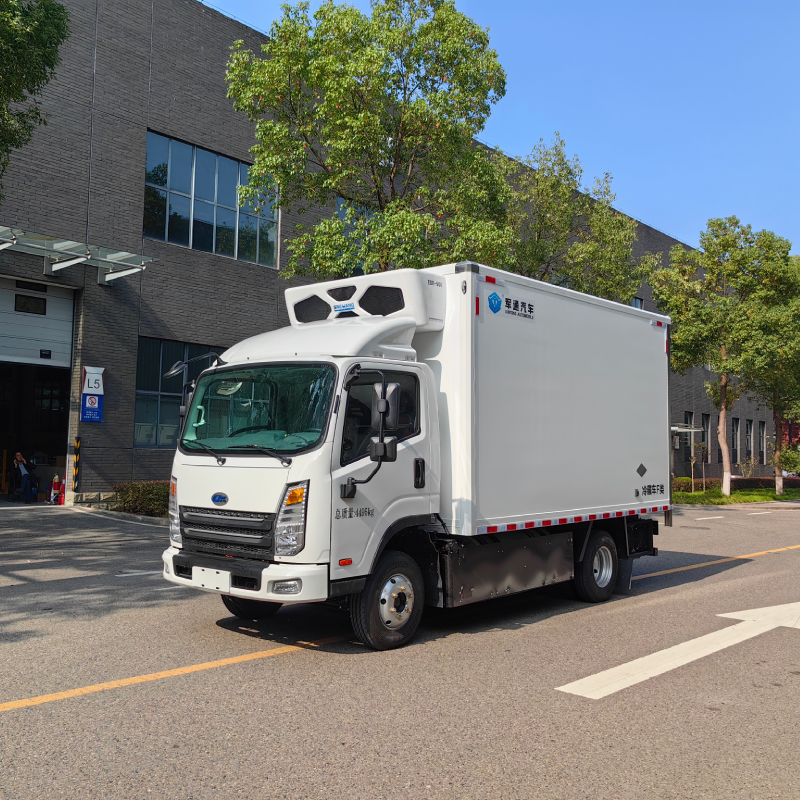

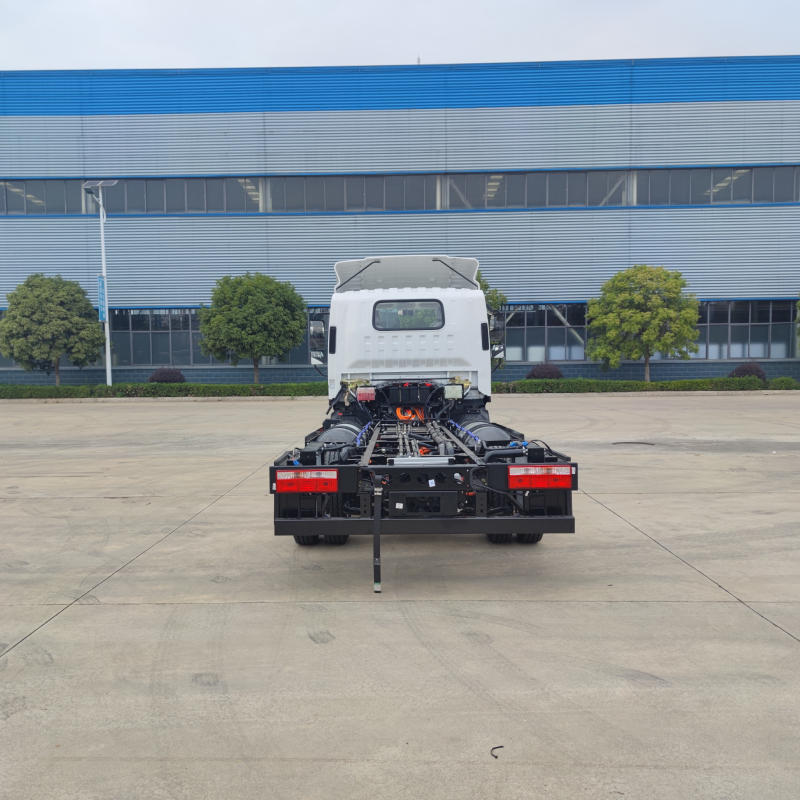

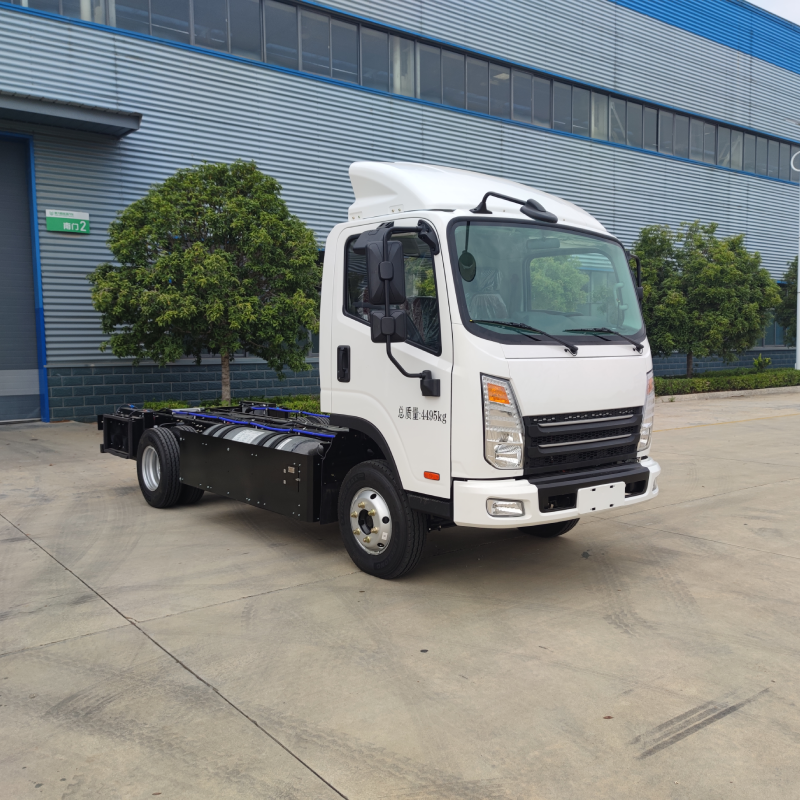

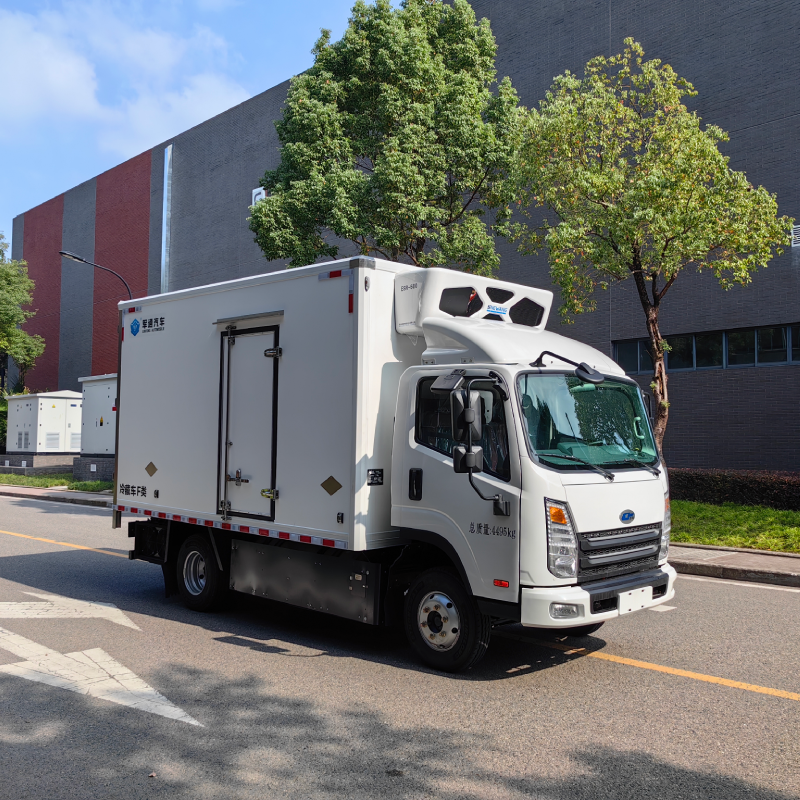

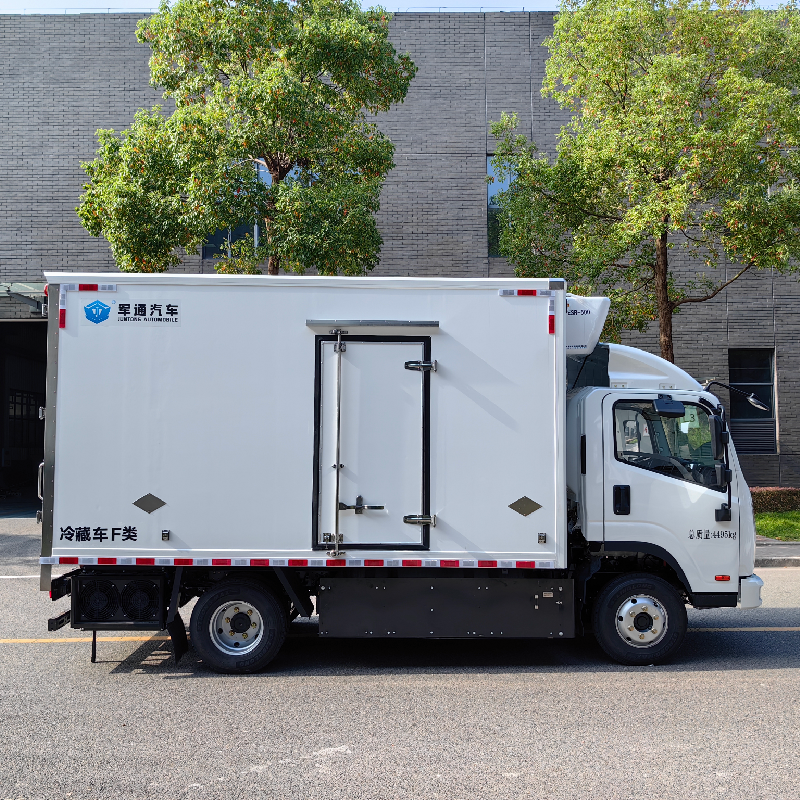

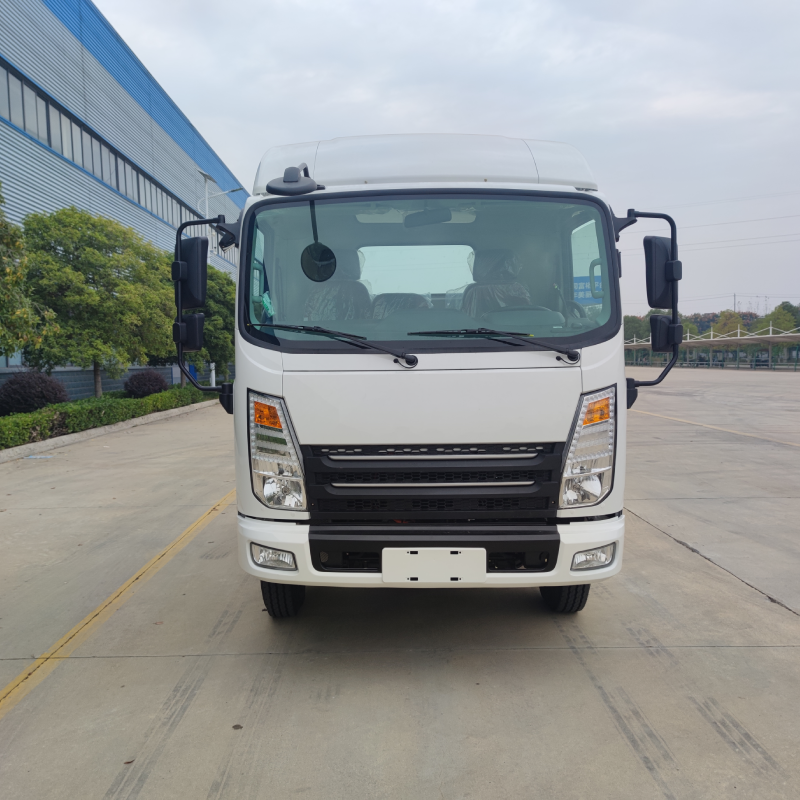

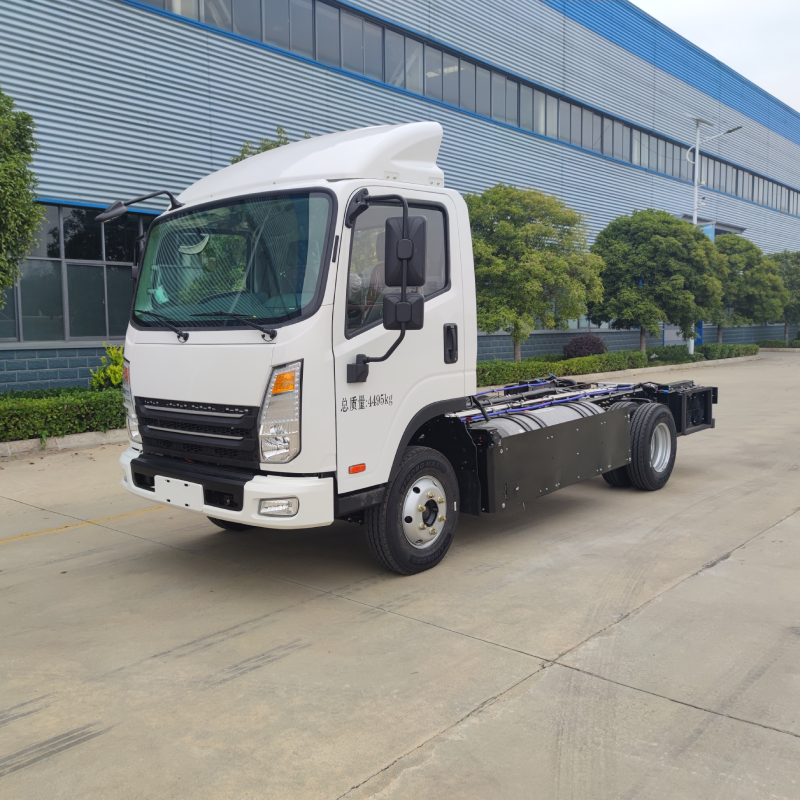

Product Appearance
Product Parameters
| Project | Parameter | Remark |
| Model | 4.5 ton hydrogen fuel chassis | / |
| Chassis Bulletin Number | HQG1040FCEVYWHQG1041FCEVYW | / |
| Chassis size ( mm ) | 5990*2000*2235,2730 | / |
| Wheelbase ( mm ) | 3360 | / |
| Front / rear overhang ( mm ) | 1150/1540 | / |
| Front / rear track ( mm ) | 1600/1555 | / |
| Second category chassis curb weight ( kg ) | 2890 | / |
| Maximum total mass ( kg ) | 4495 | / |
| Maximum speed ( km/h ) | 90 | / |
| Battery capacity ( kWh ) | 18.5 | Multi-component lithium |
| Hydrogen tank capacity ( L ) | 520 | 35MPa |
| Driving range ( km ) | 500 | Full load 40km/h constant speed |
| Charging time ( min ) | 30 | 3 0%- 80 %soc |
| 0-50km acceleration performance ( s ) | ≤ 10 | Fully loaded |
| Parking brake slope ( % ) | ≥ 18 | Fully loaded |
Applications
