Product Detail
Compact and Maneuverable
Compact vehicle design suitable for waste collection in narrow areas like residential communities, markets, alleys, and underground garages.
High-performance, Large-capacity Container
Ultra Capacity:
Effective volume of 4.5 m³. Uses a combined scraper and sliding plate structure, with actual loading capacity of over 50 bins of garbage.
Multiple Configurations:
Covers main domestic garbage collection types, specifically including: tipping 240L / 660L plastic bins, tipping 300L metal bins.
Ultra-low Noise:
Optimally matched upper-body drive motor keeps the motor operating in the highest efficiency range. Uses a silent hydraulic pump, noise ≤ 65 dB.
Clean Discharge & Easy Docking:
Adopts a high-lift self-dumping structure, enabling direct unloading and vehicle-to-vehicle docking.
Smart and Safe, Reliable Performance
The First Domestic Specialized Vehicle to Conduct High-Temperature Testing
Real-Time Operation Monitoring:
Upper-body operation big data enables precise understanding of vehicle usage habits and improves management efficiency.
Lithium Iron Phosphate System:
High-strength aerospace-grade aluminum alloy container. In dual-cell thermal runaway, only smoke is produced without fire.
Super Fast Charging:
Charging from 30% to 80% state of charge (SOC) takes only 35 minutes

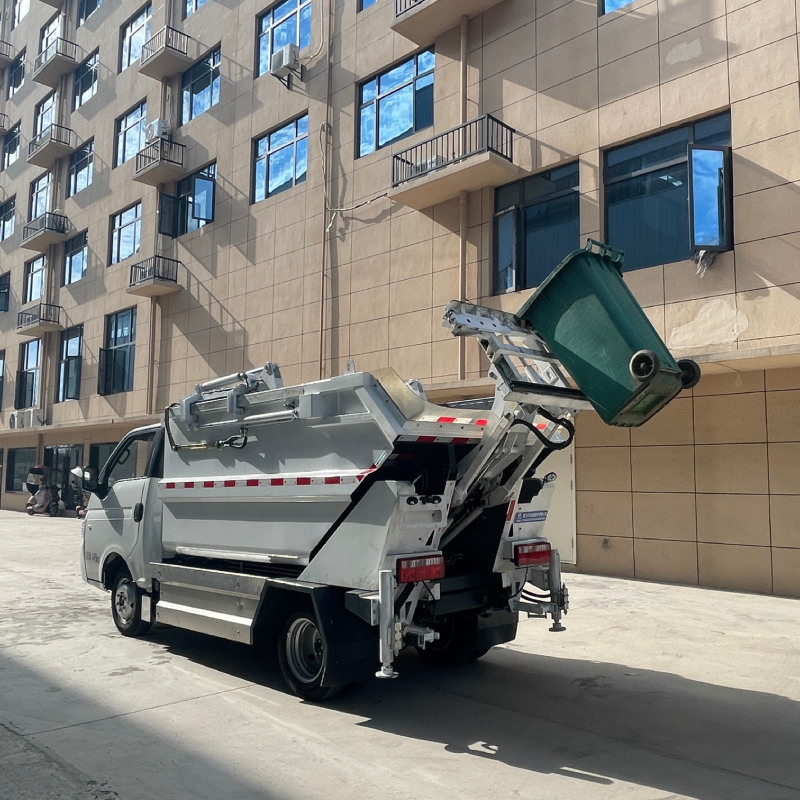

Product Appearance
Product Parameters
| Items | Parameter | Remark | |
| Approved
Parameters |
Chassis | CL1041JBEV | |
| Weight Parameters |
Max.Gross Vehicle Weight(kg) | 4495 | |
| Curb Weight(kg) | 3550 | ||
| Payload(kg) | 815 | ||
| Dimension Parameters |
Overall Dimensions(mm) | 5090×1890×2330 | |
| Wheelbase(mm) | 2800 | ||
| Front/Rear Overhang(mm) | 1260/1030 | ||
| Front/Rear Wheel Track(mm) |
1460/1328
|
||
| Power Battery | Type | Lithium Iron Phosphate | |
| Brand | Gotion High-tech | ||
| Battery Configuration | GXB3-QK-1P60S | ||
| Battery Capacity(kWh) | 57.6 | ||
|
Nominal Voltage(V)
|
3864 | ||
|
Nominal Capacity(Ah)
|
160 | ||
|
Battery System Energy Density(w.hkg)
|
140.3 | ||
| Chassis Motor | Manufacturer | Chengdu Yiwei New Energy Automobile Co.,Ltd. | |
| Type | Permanent Magnet Synchronous Motor | ||
| Rated/Peak Power(kW) | 55/150 | ||
| Rated/Peak Torque(N·m) | 150/318 | ||
| Rated /Peak Speed(rpm) | 3500/12000 | ||
| Additional Parameters |
Max.Vehicle Speed(km/h) | 90 | / |
| Driving Range(km) | 265 | Costant Speed Method | |
| Charging Time(min) | 35 | 30%-80%SOC | |
| Superstructure Parameters |
Max. Garbage Container Capacity(m³)
|
4.5 | |
| Actual Loading Capacity(t) | 2 | ||
|
Max. Hydraulic Pressure(Mpa)
|
16 | ||
| Unloading Cycle Time(s) | ≤40 | ||
| Hydrauic System Raled Pressure (MPa) | 18 | ||
|
Compatible Standard Bin Size
|
Capable of lifting two 120L standard plastic bins, two 240L
standard plastic bins, or one 660L standard garbage bin.
|
||
