Product Detail
High Efficiency
Supports simultaneous loading and compression with single or multiple cycles, enhancing efficiency with high loading capacity and compaction.
Excellent Sealing Performance
• Equipped with a horseshoe-shaped sealing strip, offering oxidation resistance, corrosion protection, and leak prevention;
• Features a dry-wet separation design to reduce waste moisture;
• The tank is fitted with a water-retaining groove to minimize sewage splashing during transport.
High Capacity, Multiple Options, Blue-plate Ready
• Equipped with a large 4.5m³ container—capable of loading over 90 bins and approximately 3 tons of waste;
• Compatible with 120L / 240L / 660L plastic bins, optional 300L metal bin device available;
• Optimized hydraulic system enables low-noise operation (≤65 dB) during loading;
Suitable for underground access/ blue-plate eligible/ drivable with C-class license.

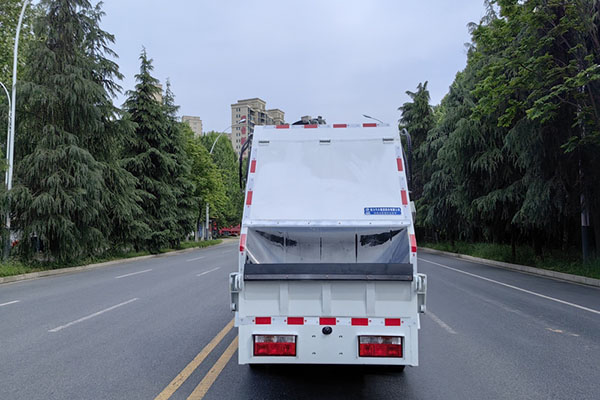

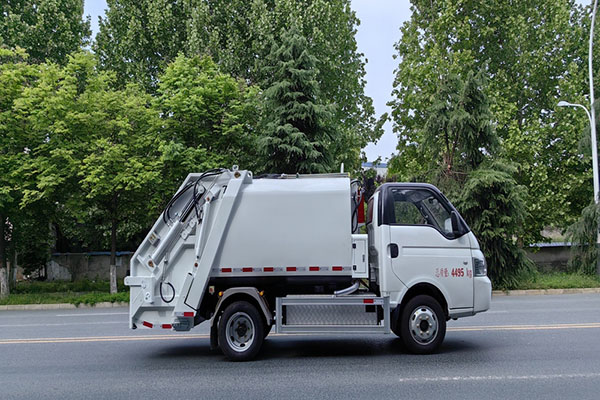

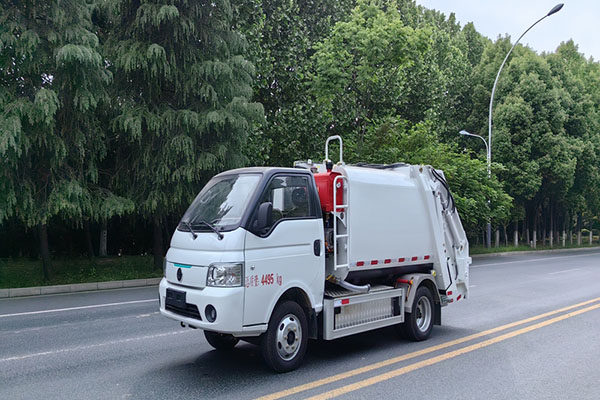

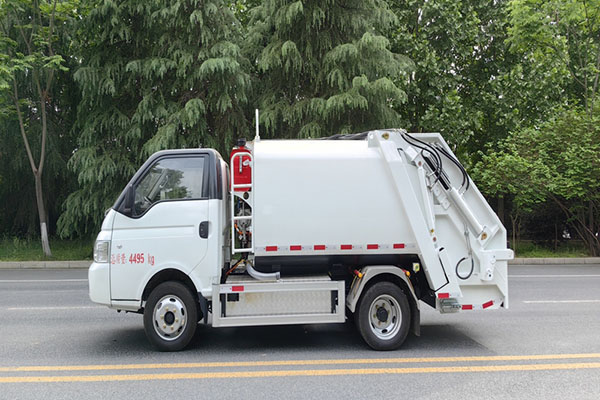

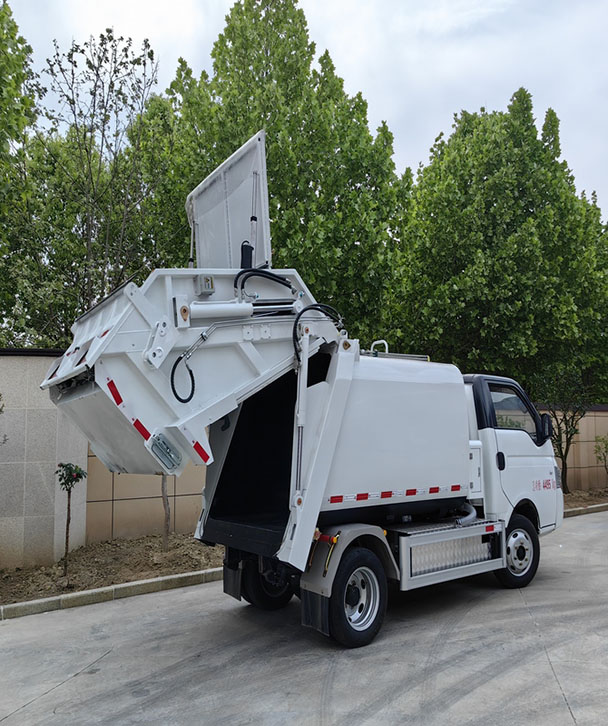

Product Appearance
Product Parameters
| Items | Parameter | Remark | |
|
Official Parameters |
Vehicle | CL5042ZYSBEV | |
| Chassis | CL1041JBEV | ||
| Weight Parameters |
Max.Gross Vehicle Weight(kg) | 4495 | |
| Curb Weight(kg) | 3960 | ||
| Payload(kg) | 405 | ||
| Dimension Parameters |
Overall Dimensions(mm) | 5850×2020×2100,2250,2430 | |
| Wheelbase(mm) | 2800 | ||
| Front/Rear Suspension(mm) | 1260/1790 | ||
| Front/Rear Wheel Track(mm) | 1430/1500 | ||
| Power Battery | Type | Lithium Iron Phosphate | |
| Brand | Gotion High-tech | ||
| Battery Capacity(kWh) | 57.6 | ||
| Chassis Motor | Type | Permanent Magnet Synchronous Motor | |
| Rated/Peak Power(kW) | 55/150 | ||
| RatedPeak Torque(Nm) | 150/318 | ||
| Rated /Peak Speed(rpm) | 3500/12000 | ||
| Additional Parameters |
Max.Vehicle Speed(km/h) | 90 | / |
| Driving Range(km) | 265 | Costant Speed Method | |
| Charging Time(min) | 35 | 30%-80%SOC | |
|
Superstructure |
Max.Compacor Container Volume(m²) | 4.5m³ | |
| Effective Loading Capacity(t) | 3 | ||
| Loading Cycle Time(s) | ≤25 | ||
| Unloading Cycle Time(s) | ≤40 | ||
| Hydrauic System Raled Pressure (MPa) | 18 | ||
| Bin Tipping Mechanism Type | · Standard 2×240Lplasfic bins · Standard 660L tipping hopper SemiSealed Hopper Opfional) |
||
