Product Detail
Efficient & Multi-Functional
Supports rear, side, and opposite spraying, plus a water cannon. Perfect for squares, service roads, and rural paths where large trucks fall short. Compact, agile, and powerful.
High-Capacity, Durable Tank
Lightweight design with a 2.5 m³ water tank made from high-strength 510L/610L beam steel. Features electrophoretic coating for 6–8 years of corrosion protection and high-temperature baked paint for long-lasting adhesion and durability.
Smart and Safe, Reliable Performance
· Anti-Rollback: When the vehicle is on a slope, the anti-rollback function will activate, controlling the
motor to enter zero-speed mode to prevent rolling.
· Tire Pressure Monitoring: Monitors tire pressure and temperature in real time, providing instant feedback
on tire status to enhance driving safety.
· Electric Power Steering: Delivers effortless steering and active return-to-center performance, enabling
intelligent power assist for smoother human-vehicle interaction

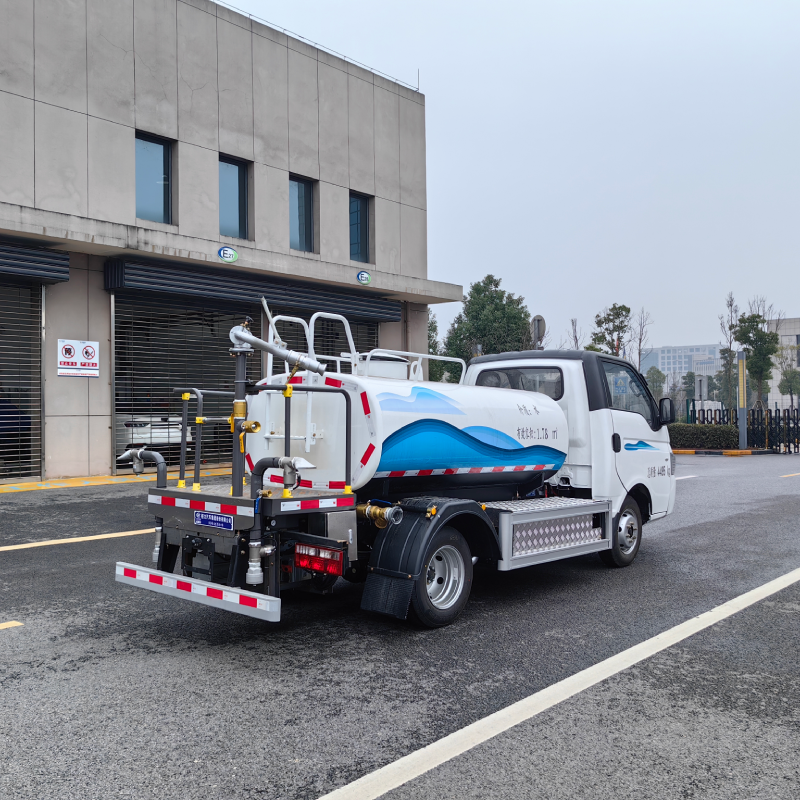

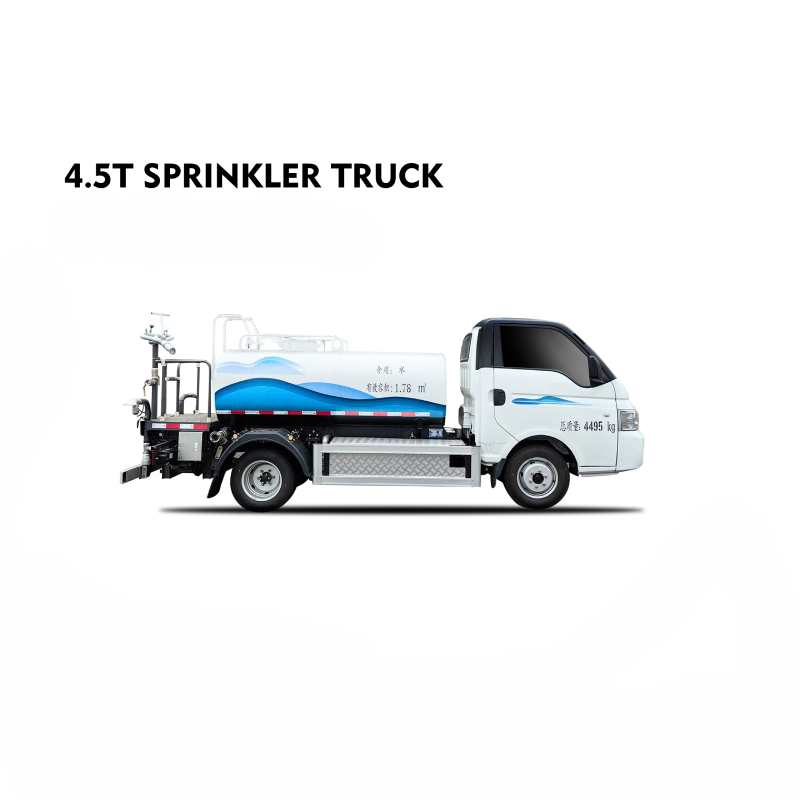

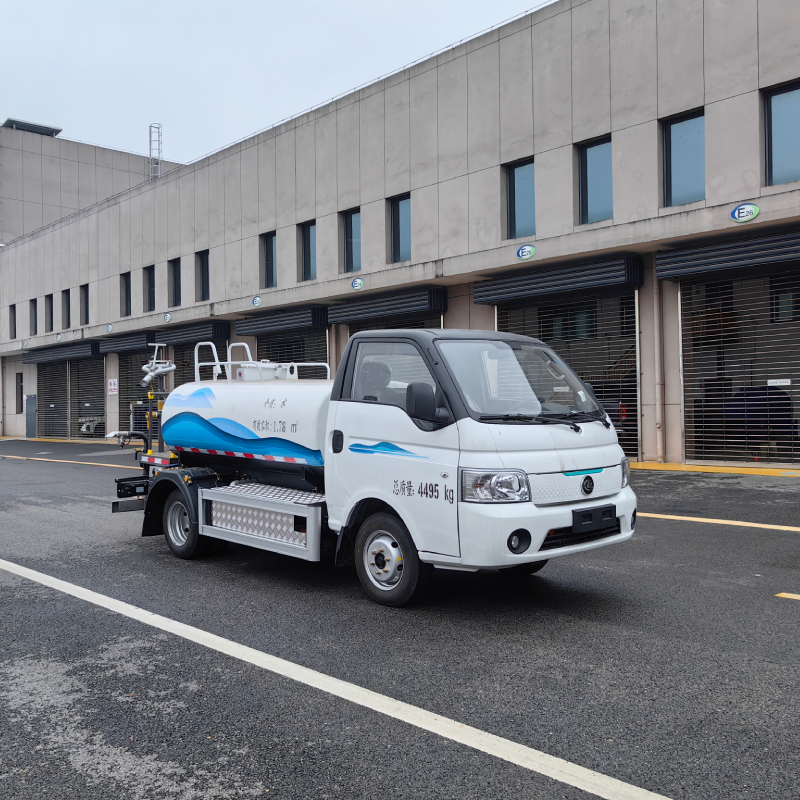

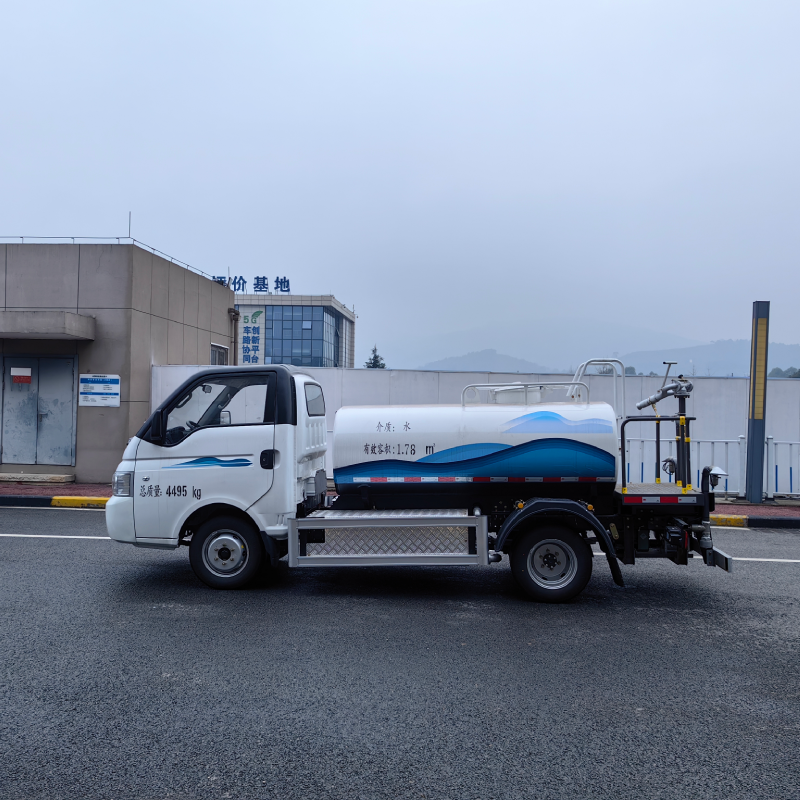

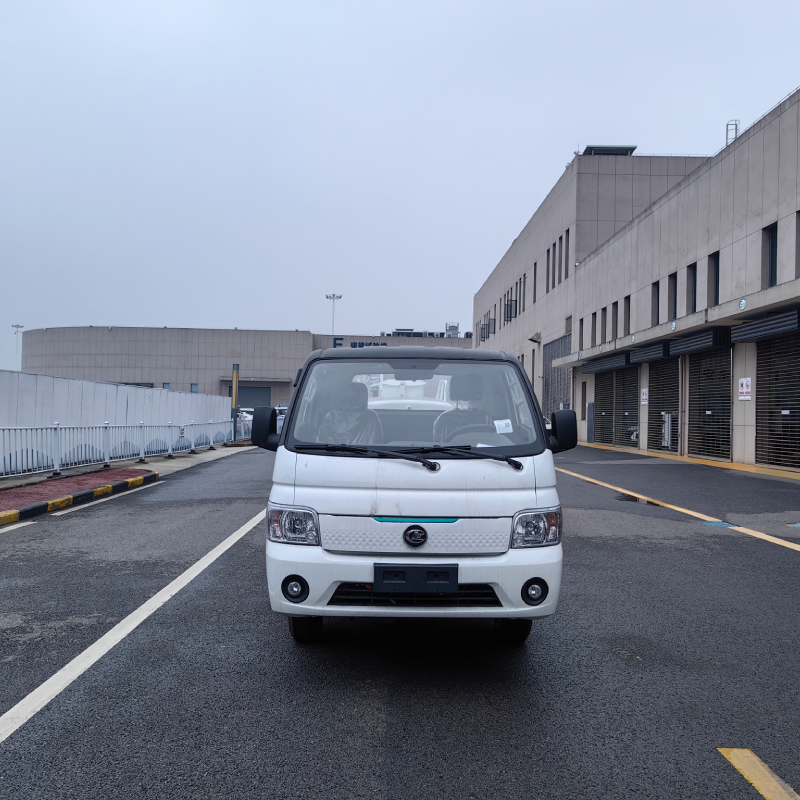

Product Appearance
Product Parameters
| Items | Parameter | Remark | |
| Approved Parameters |
Vehicle |
CL5041GSSBEV
|
|
| Chassis |
CL1041JBEV
|
||
| Weight Parameters |
Max.Gross Vehicle Weight(kg) | 4495 | |
| Curb Weight(kg) | 2580 | ||
| Payload(kg) | 1785 | ||
| Dimension Parameters |
Length×Width×Height(mm)
|
5530×1910×2075
|
|
| Wheelbase(mm) | 2800 | ||
| Front/Rear Overhang(mm) | 1260/1470 | ||
| Power Battery | Type | Lithium Iron Phosphate | |
| Brand | Gotion High-tech | ||
| Battery Configuration |
2 Battery Boxes (1P20S)
|
||
| Battery Capacity(kWh) | 57.6 | ||
|
Nominal Voltage (V)
|
384 | ||
|
Nominal Capacity (Ah)
|
150 | ||
|
Battery System Energy Density(w·hkg)
|
175 | ||
| Chassis Motor | Manufacturer | Chengdu Yiwei New Energy Automobile Co.,Ltd. | |
| Type |
Permanent Magnet Synchronous Motor
|
||
| Rated/Peak Power(kW) | 55/110 | ||
| Rated /Peak Torque(N·m) | 150/318 | ||
| Rated /Peak Speed(rpm) | 3500/12000 | ||
| Additional Parameters |
Max.Vehicle Speed(km/h) | 90 | / |
| Driving Range(km) | 265 | Costant Speed Method | |
| Charging Time(h) | 1.5 | ||
| Superstructure Parameters |
Tank Dimensions:length×major axis×minor axis（mm） |
2450×1400×850
|
|
|
Water Tank Approved Effective Capacity(m³)
|
1.78 | ||
|
Total Capacity of Water Tank (m³)
|
2.5 | ||
|
Low-Pressure Water Pump Brand
|
WLOONG | ||
|
Low-Pressure Water Pump Type
|
50QZR-15/45N | ||
|
Head (m)
|
45 | ||
|
Flow Rate (m³/h)
|
15 | ||
|
Washing Width (m)
|
≥12 | ||
|
Sprinkling Speed (km/h)
|
7~20 | ||
|
Water Cannon Range (m)
|
≥20 | ||
Applications
Watering truck
Dust suppression truck
Compressed garbage truck
Kitchen waste truck
