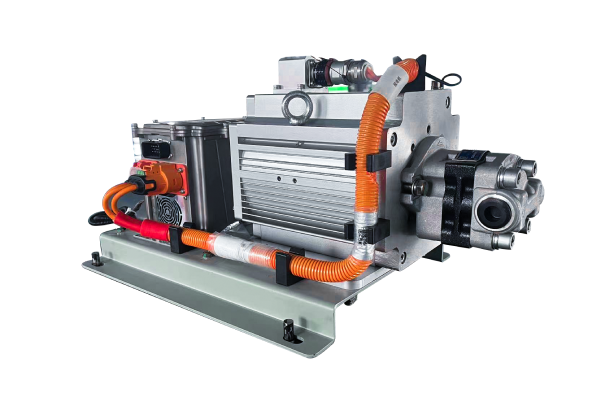

5.5KW Hydraulic Oil Pump Power Unit
3-4 tons:
hook arm truck / self-loading garbage truck / self-unloading garbage truck
| RATING VOLTAGE | AC220V | NOMINAL DISPLACEMENT | 12.5ml/r |
| RATED SPEED | 1500r/min | RATED PRESSURE | 20MPa |
| RATED POWER | 5.5KW | MAXIMUM PRESSURE | 25MPa |
| PEAK SPEED | 2000r/min | COOLING METHOD | natural cooling |
| PEAK POWER | 11kW | WEIGHT | 48kg |

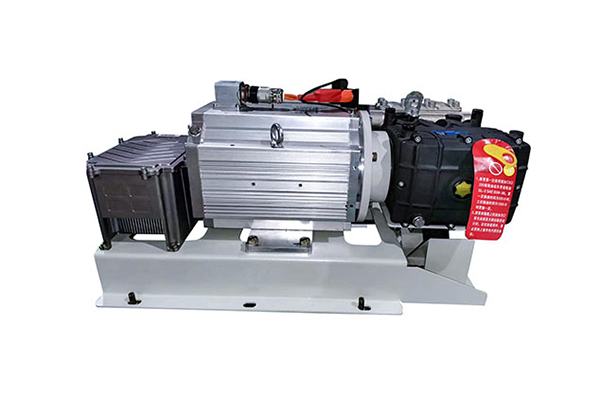

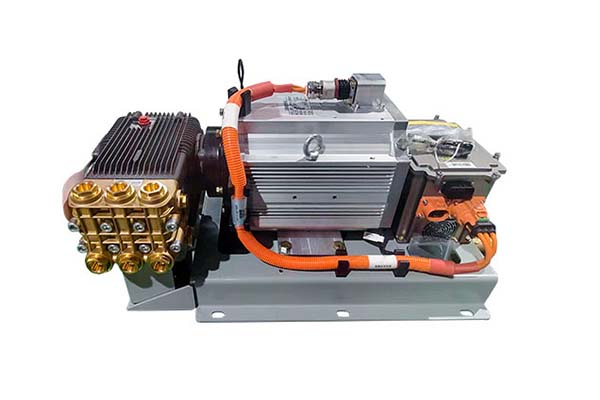

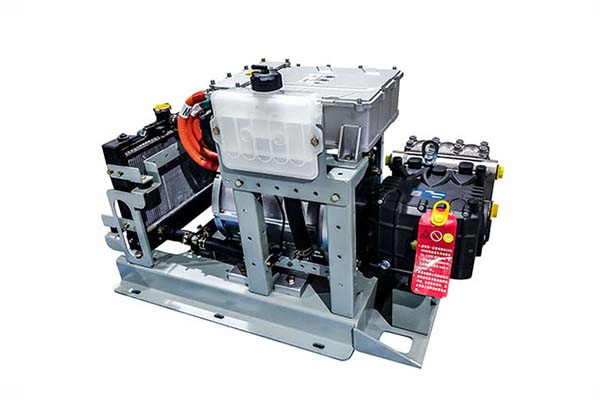

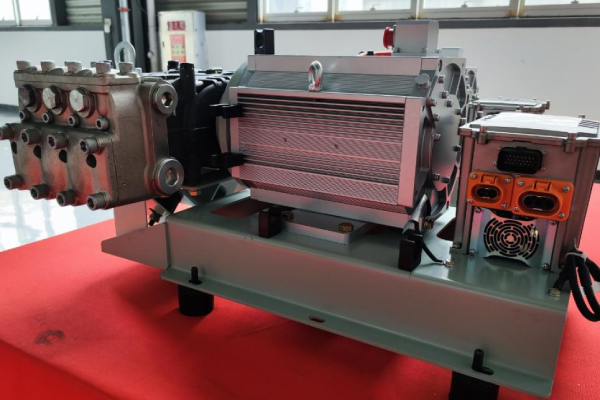

15kW High Pressure Water Pump Power Unit
8-10 tons of hydrogen fuel/pure electric:
road maintenance vehicles, high pressure cleaning, cleaning vehicles
| RATING VOLTAGE | AC380V | FLOW | 142L/min |
| RATED SPEED | 1500r/min | GREATEST PRESSURE | 10MPa |
| RATED POWER | 15KW | PUMP BRAND | Pinfu |
| PEAK SPEED | 2200r/min | COOLING METHOD | natural cooling |
| PEAK POWER | 20kW | WEIGHT | 105kg |

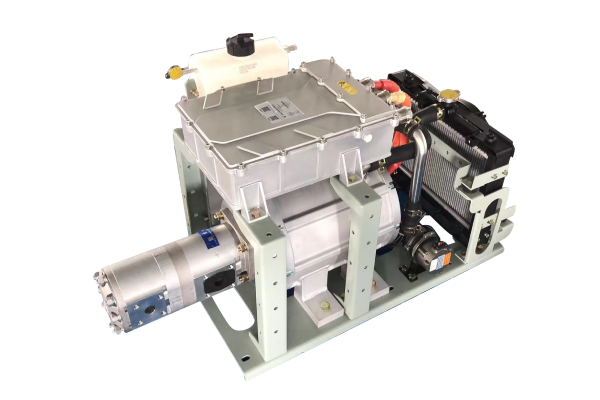

30KW Hydraulic Oil Pump Power Unit
12-18 tons of hydrogen fuel/pure electric:
compression garbage truck
| RATED VOLTAGE | AC380V | NOMINAL DISPLACEMENT | 50+16ml/r |
| RATED SPEED | 1500r/min | RATED PRESSURE | 20MPa |
| RATED POWER | 30kW | MAXIMUN PRESSURE | 25MPa |
| PEAK SPEED | 2250r/min | COOLING METHOD | Liquid cooling |
| PEAK POWER | 45KW | WEIGHT | 85kg |

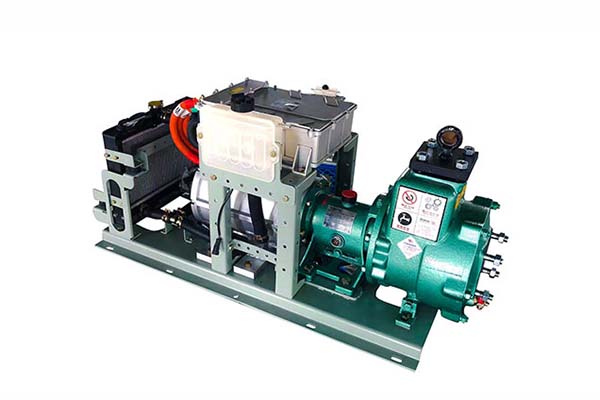

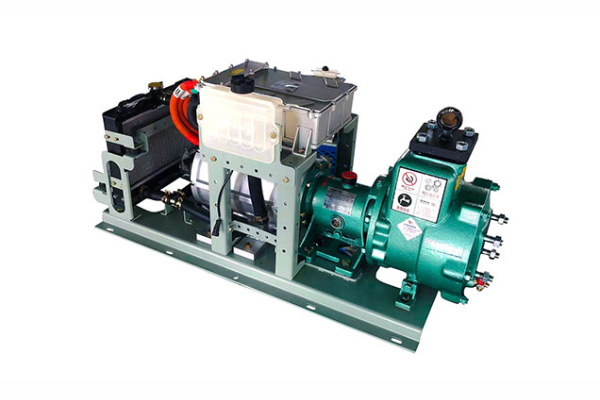

30KW Low Pressure Water Pump Power Unit
18 tons of hydrogen fuel/pure electric:
sprinkler, multi-functional dust suppression vehicle
| RATING VOLTAGE | AC380V | FLOW | 50m³/h |
| RATED SPEED | 3000r/min | LIFT | 110m |
| RATED POWER | 30kW | BRAND | VEYRON |
| PEAK SPEED | 4500r/min | COOLING METHOD | Liquid cooling |
| PEAK POWER | 45kW | WEIGHT | 185kg |
