Product Detail
High Efficiency
Supports simultaneous loading and compression with single or multiple cycles, enhancing efficiency with high loading capacity and compaction.
Good Sealing Consistency, Prevents Sewage Leakage
Industry-leading standardized welding and assembly ensure high vehicle consistency;
The packer’s locking mechanism adopts an independent hydraulic-cylinder driven lock, and a U-shaped sealing strip is fitted between it and the waste hopper, effectively preventing sewage leakage;
Cylinder-driven compactor cover fully seals the bin and packer to prevent odors.
High Capacity, Multiple Options
7 m³ large capacity, significantly surpassing industry peers;
Actual loading of 150 bins (240L full bins) with an approximate load weight of 4.5 tons;
Compatible with 240L/660L plastic bins, 300L lifting metal bins, and semi-sealed hopper types.

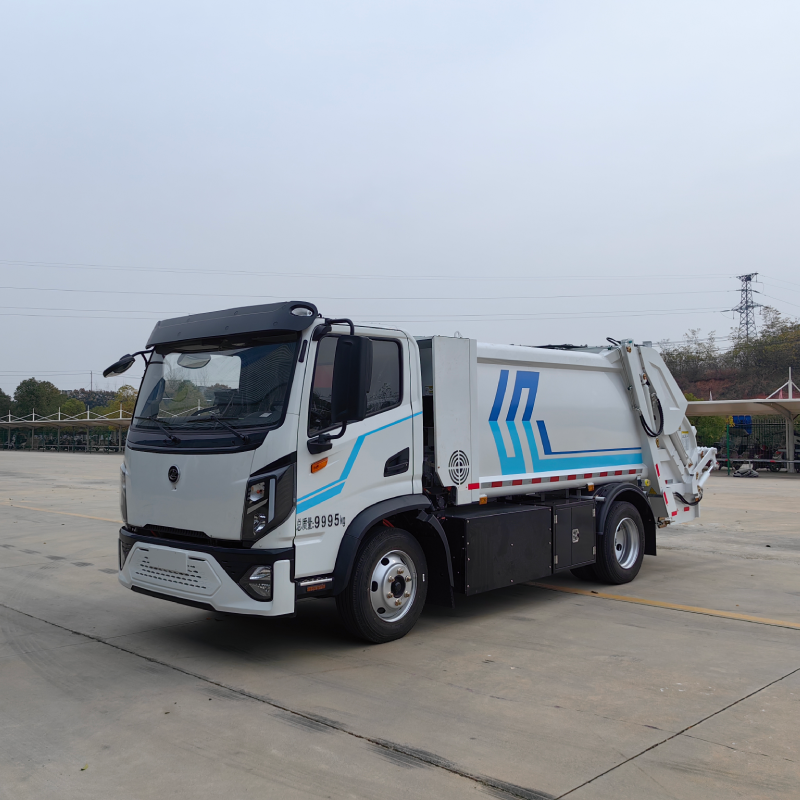

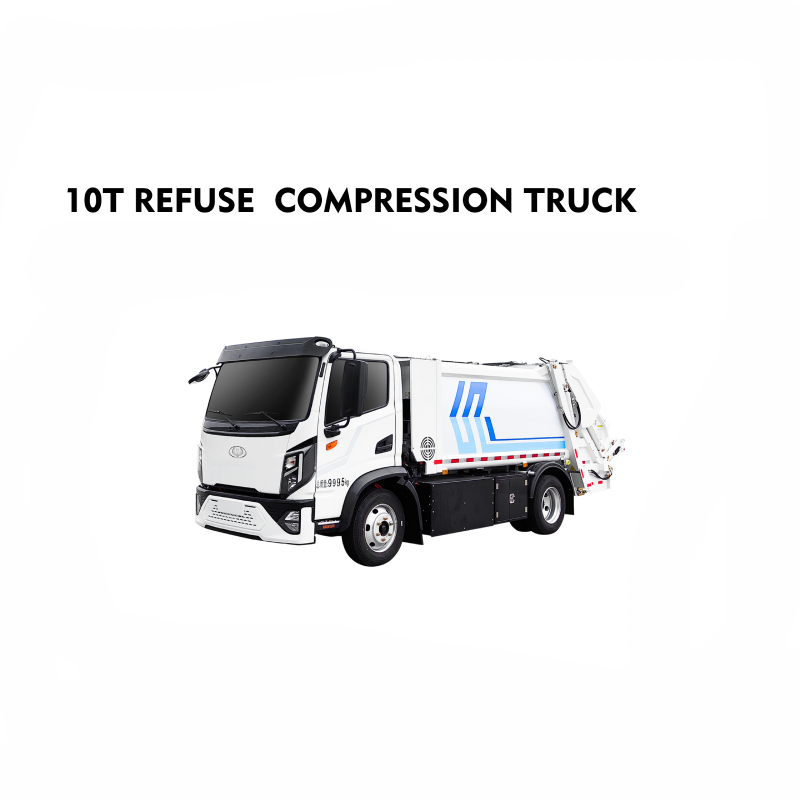

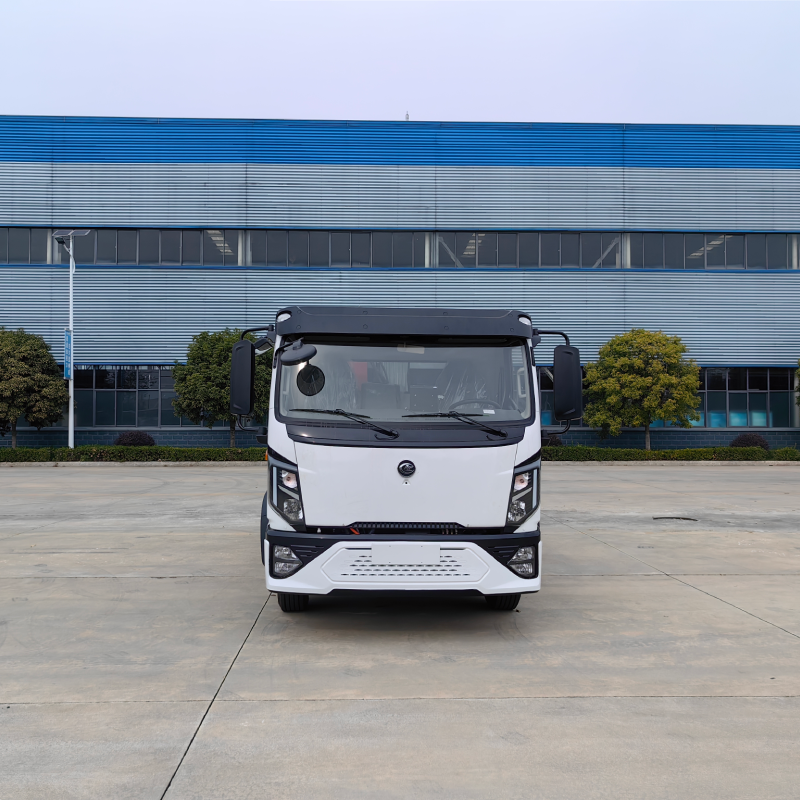

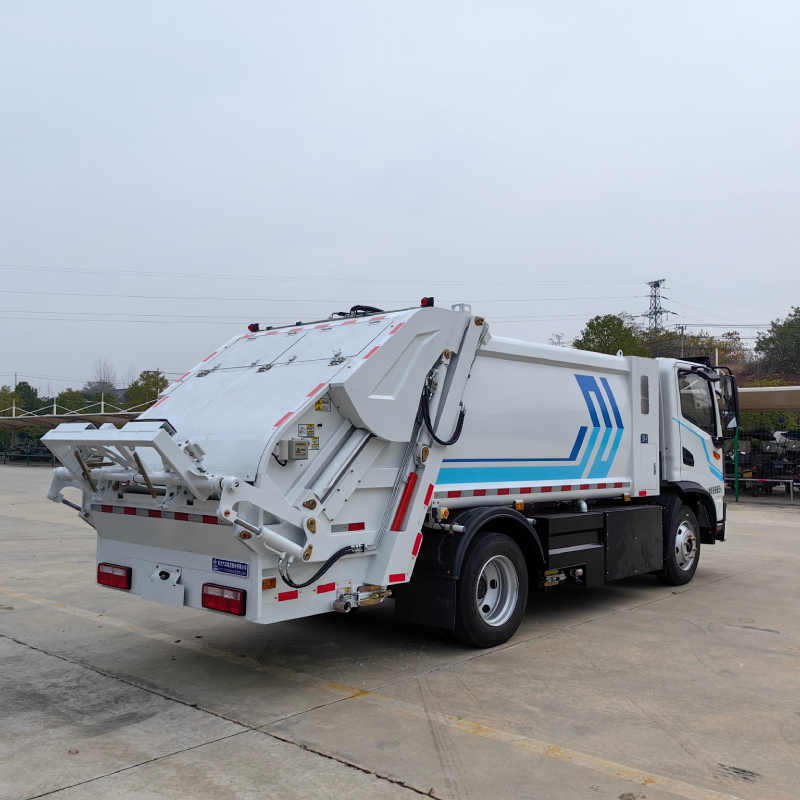

Product Appearance
Product Parameters
| Items | Parameter | Remark | |
| Approved Parameters |
Vehicle |
CL5101ZYSBEV
|
|
| Chassis |
CL1100JBEV
|
||
| Weight Parameters |
Max.Gross Vehicle Weight(kg) | 9995 | |
| Curb Weight(kg) |
6790, 7240
|
||
| Payload(kg) |
3010, 2660
|
||
| Dimension Parameters |
Overall Dimensions(mm) |
7210×2260×2530
|
|
| Wheelbase(mm) |
3360
|
||
| Front/Rear Overhang(mm) |
1275/2195
|
||
| Front/Rear Wheel Track(mm) |
1780/1642
|
||
| Power Battery | Type | Lithium Iron Phosphate | |
| Brand | CALB | ||
| Battery Capacity(kWh) | 128.86 | ||
| Chassis Motor | Type | Permanent Magnet Synchronous Motor | |
| Rated/Peak Power(kW) |
120/200
|
||
| Rated/Peak Torque(N·m) | 200/500 | ||
| Rated /Peak Speed(rpm) | 5730/12000 | ||
| Additional Parameters |
Max.Vehicle Speed(km/h) | 90 | / |
| Driving Range(km) | 220 | Costant Speed Method | |
| Charging Time(min) | 35 | 30%-80%SOC | |
| Superstructure Parameters |
Container Capacity
|
7m³ | |
| Packer Mechanism Capacity | 0.7m³ | ||
|
Packer Sewage Tank Capacity
|
220L | ||
|
Side-Mounted Sewage Tank Capacity
|
120L | ||
|
Loading Cycle Time
|
≤15s | ||
|
Unloading Cycle Time
|
≤45s | ||
| Lifting Mechanism Cycle Time | ≤10s | ||
|
Hydraulic System Rated Pressure
|
18MPa
|
||
| Bin Lifting Mechanism Type | · Standard 2×240L plastic bins · Standard 660L bin lifter Semi-Sealed Hopper (Optional) |
||
