18-Ton Chassis

Short Description:


Product Detail

Product Tags

18T Electric Chassis

Yiwei self-developed 18-ton E-chassis, equipped with rich cabin configuration, such as wrap-around dashboard, leather airbag seats, multi-functional steering wheel, central control screen, 360° HD cameras and so on. Features in integration and lightweight design, with reserved configurations for different modification needs.

Product Detail

Self-Developed System-VCU
Capable of meeting diverse customization needs and providing intelligent services.

  • Adjustable energy recovery, green and energy-saving
  • Customizable cruise features for effortless control
  • Versatile power-take-off modes, freedom at your command
  • Big data platforms for real-time monitoring and worry-free service

Integrated Design
Structure Design:
Body-chassis development, integrating custom chassis and body for compact/kitchen garbage trucks with reserved space for tanks and toolbox, achieving full-vehicle integration; for sweepers, fresh water tank integrates with battery bracket to optimize space and capacity.
Software Design:Integrated design of body control screen and central MP5 screen, combining entertainment, 360° view, and body control; enables easier future modifications, improves interior cohesion and usability, and reduces cost.

Product Appearance

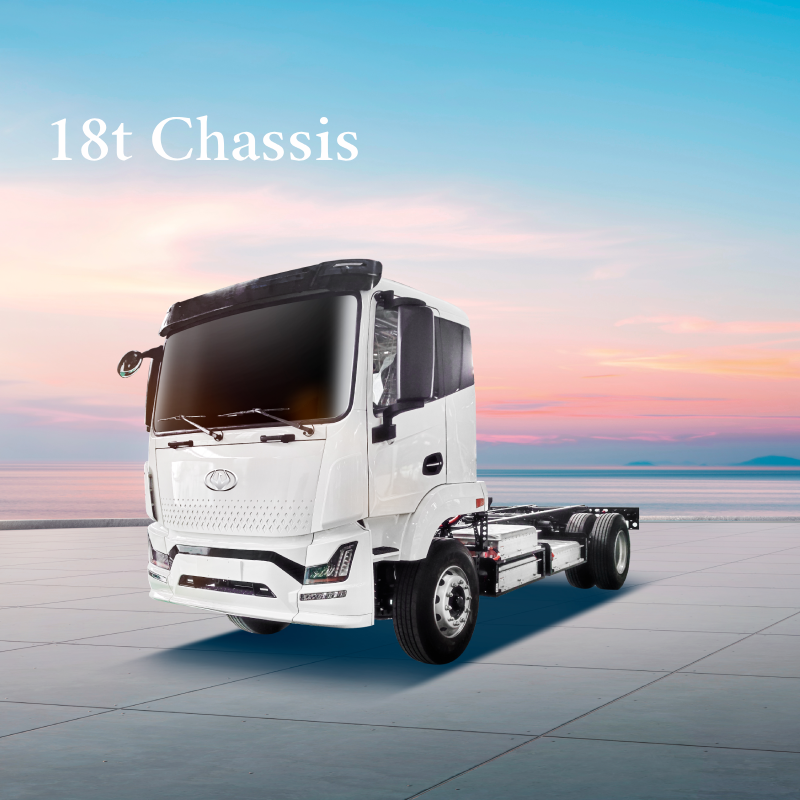

chassis

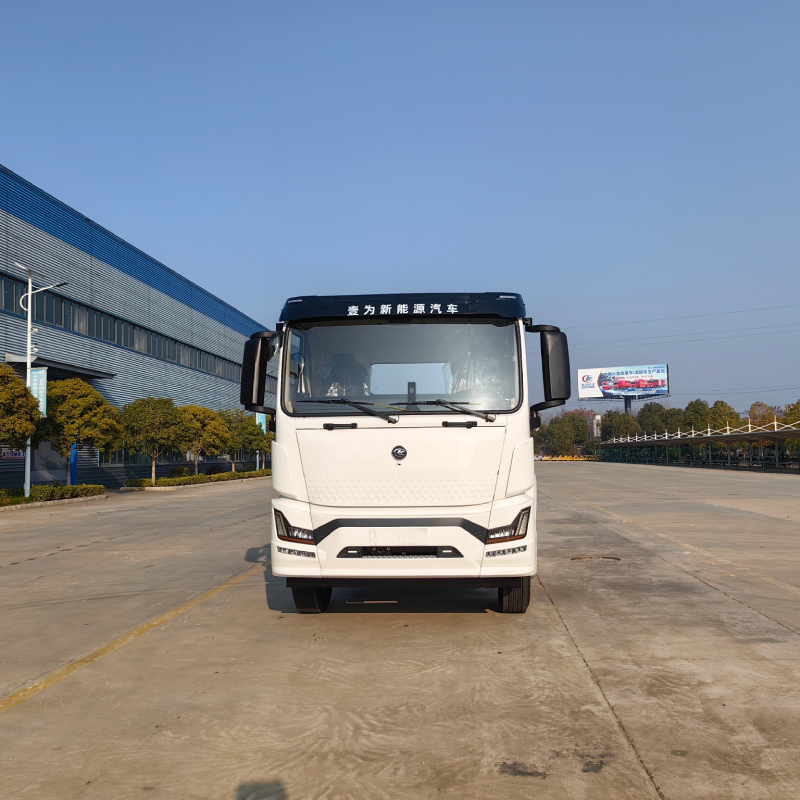

18t chassis (3)

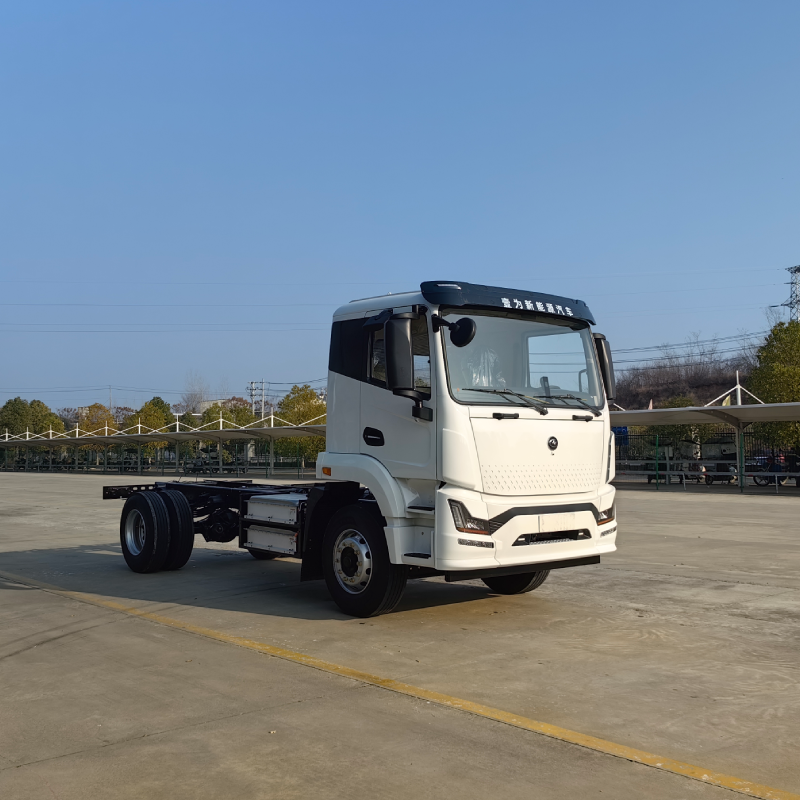

18t chassis (2)

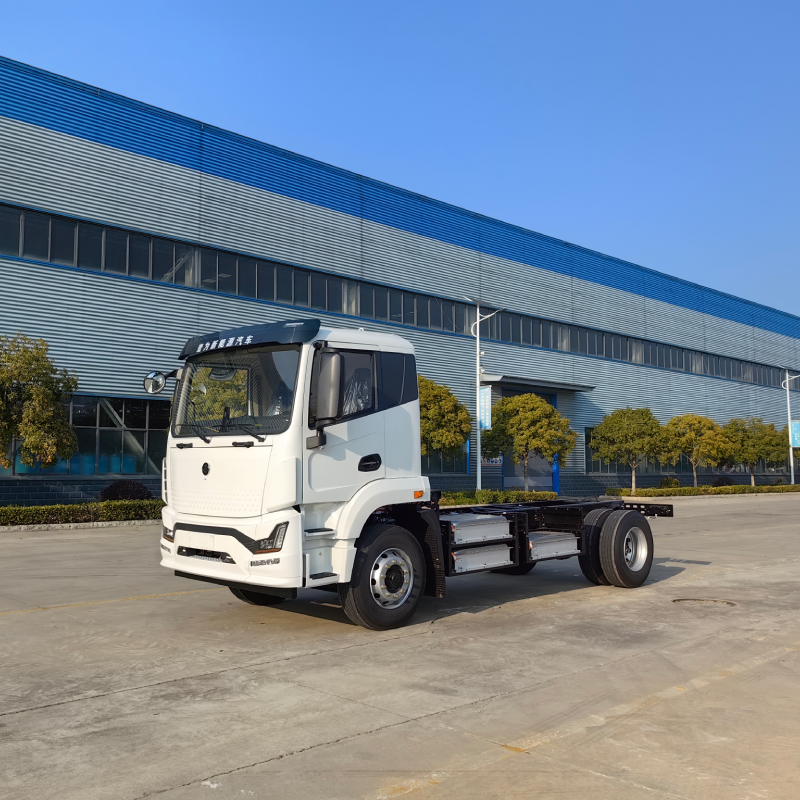

18t chassis (4)

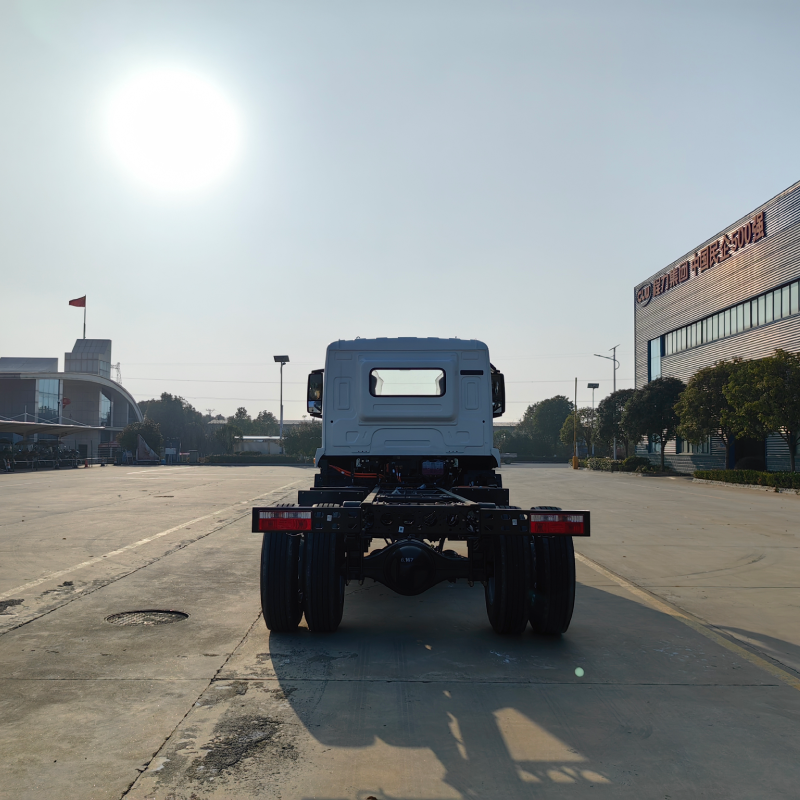

18t chassis (1)

Product Parameters

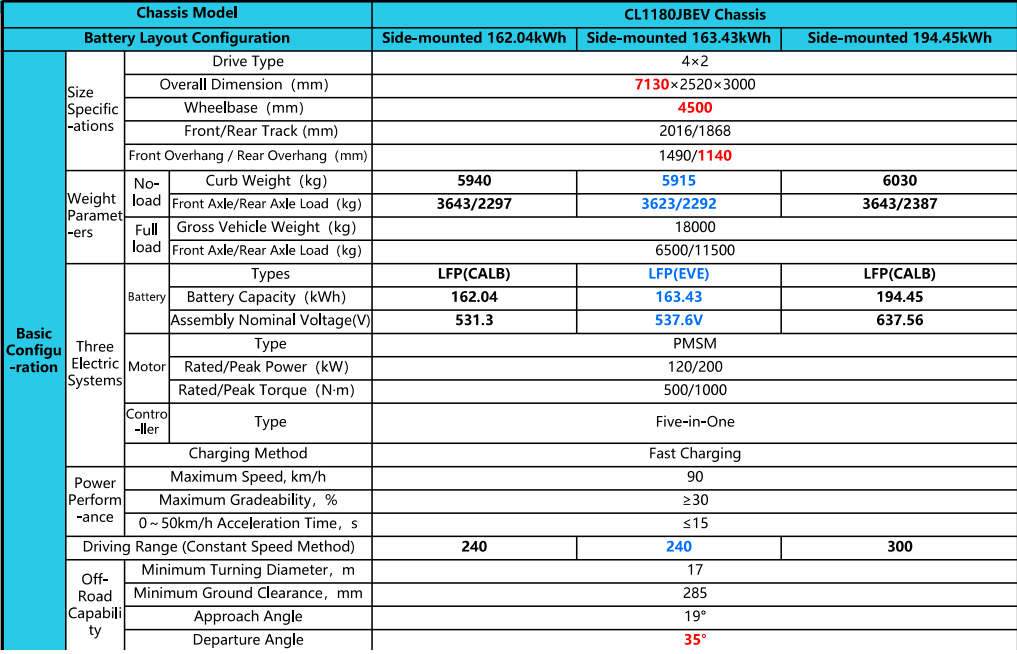

18t chassis

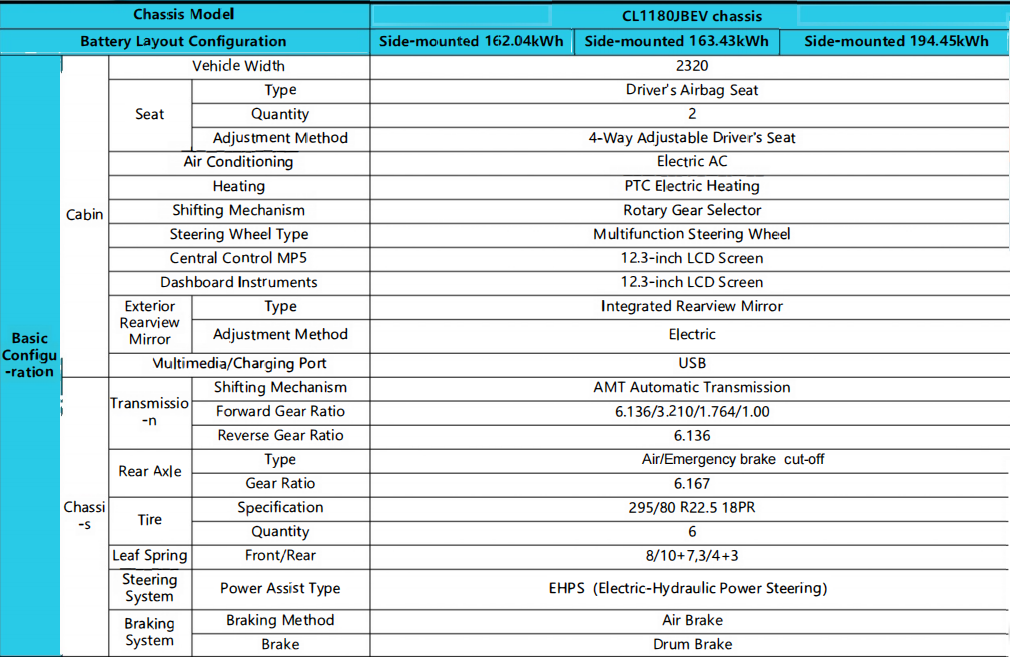

18t chassis para

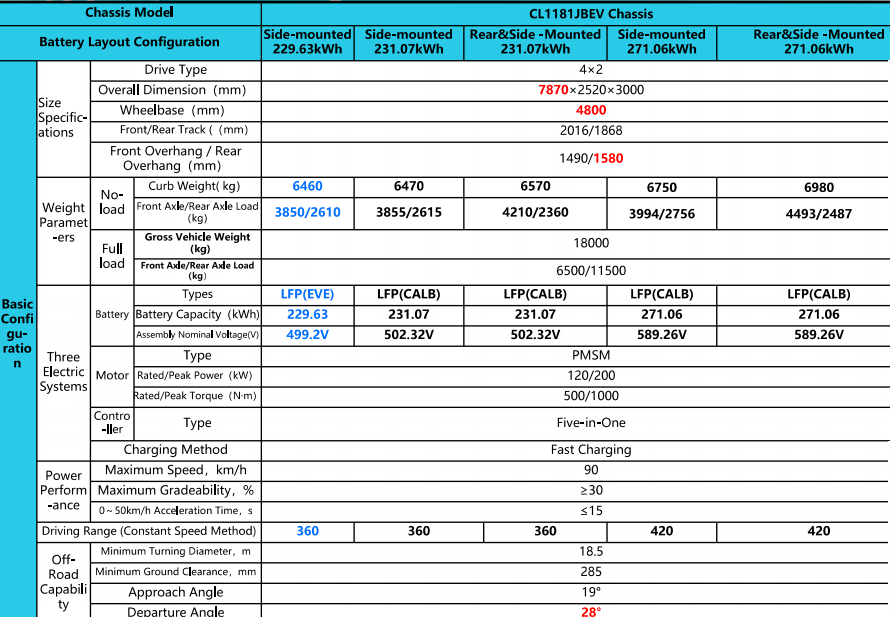

18t chassis 2

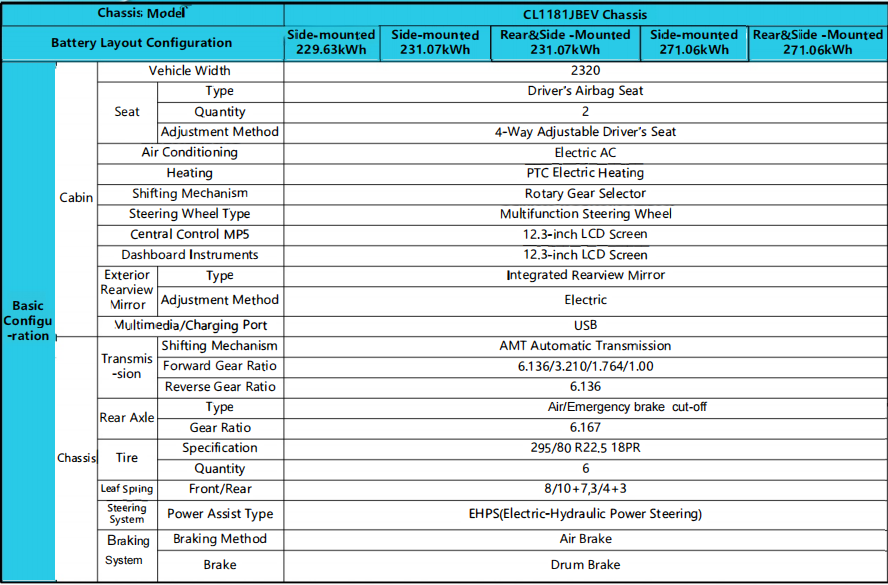

18t chassis 2(1)

Applications

1
18t sprinkler (2)
10t PEV Dust Suppression Vehicles (6)
street sprinkler truck (1)
