Product Advantages & Key Features
· Purpose-Built Electric Vacuum Truck
Designed specifically for sewage, sludge and liquid waste collection, with the electric chassis and vacuum superstructure engineered as an integrated system for reliable sanitation operations.
· Powerful Vacuum Suction Performance
A high-performance vacuum system provides strong and stable suction for collecting sewage, sludge, mud and other difficult-to-handle materials, including deposits from sewers and drainage systems.
· Efficient Collection, Transportation & Discharge
Combines vacuum suction, pressure discharge and hydraulic tank lifting functions, enabling efficient collection, sealed transportation and convenient unloading of liquid waste.
· Large-Capacity Waste Collection
The optimized tank structure provides high loading capacity while maintaining a practical vehicle layout, making the truck suitable for continuous municipal sanitation and waste collection operations.
· Multi-Level Safety Protection
Features multiple anti-overflow systems, liquid-level warning, automatic pressure relief and emergency shutdown functions to help protect the vacuum system and reduce the risk of sewage leakage or secondary pollution.
· Zero-Emission & Low-Noise Operation
The pure electric powertrain eliminates tailpipe emissions and significantly reduces operating noise, making the truck particularly suitable for urban sanitation, residential areas and environmentally sensitive locations.

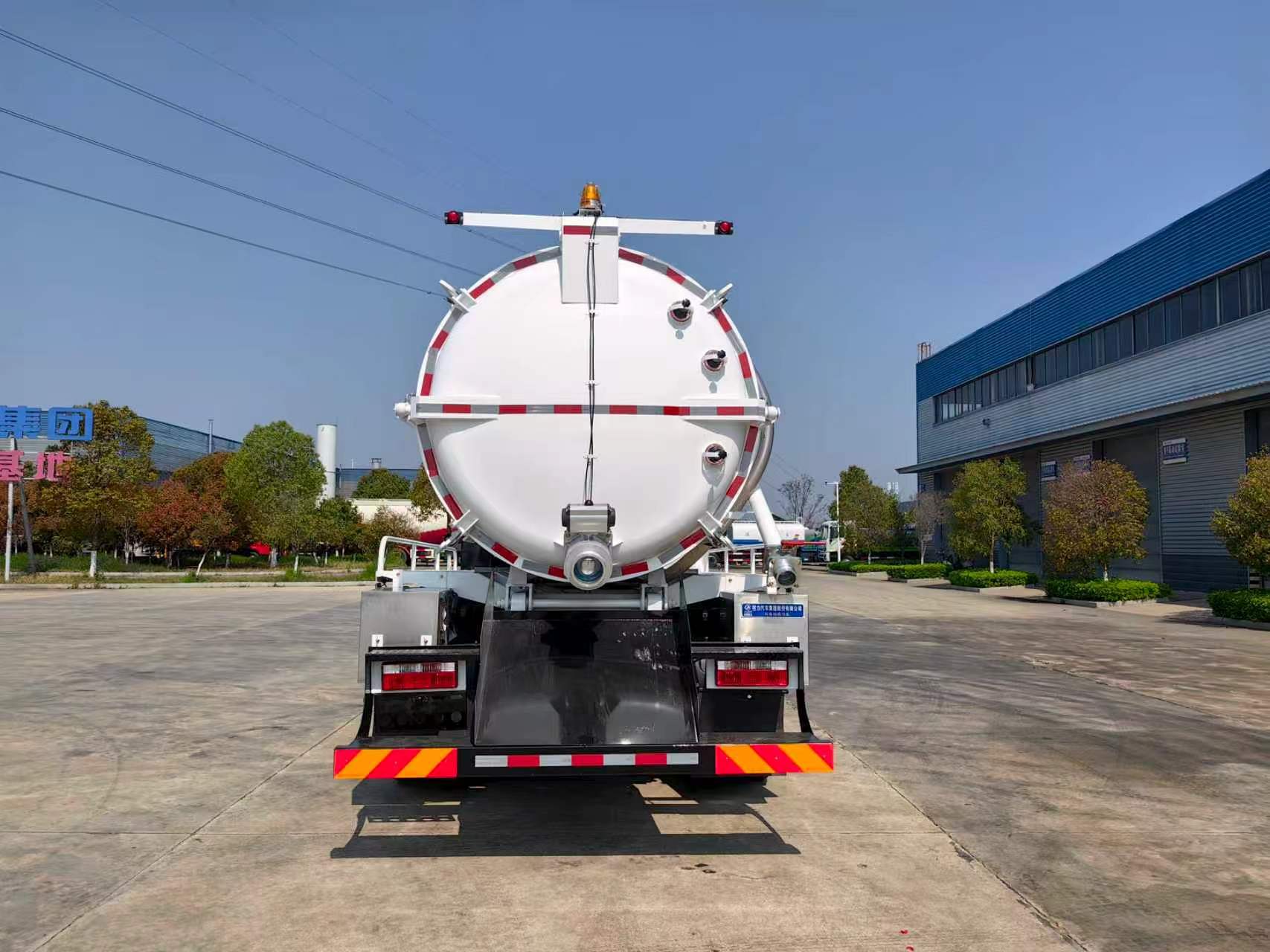

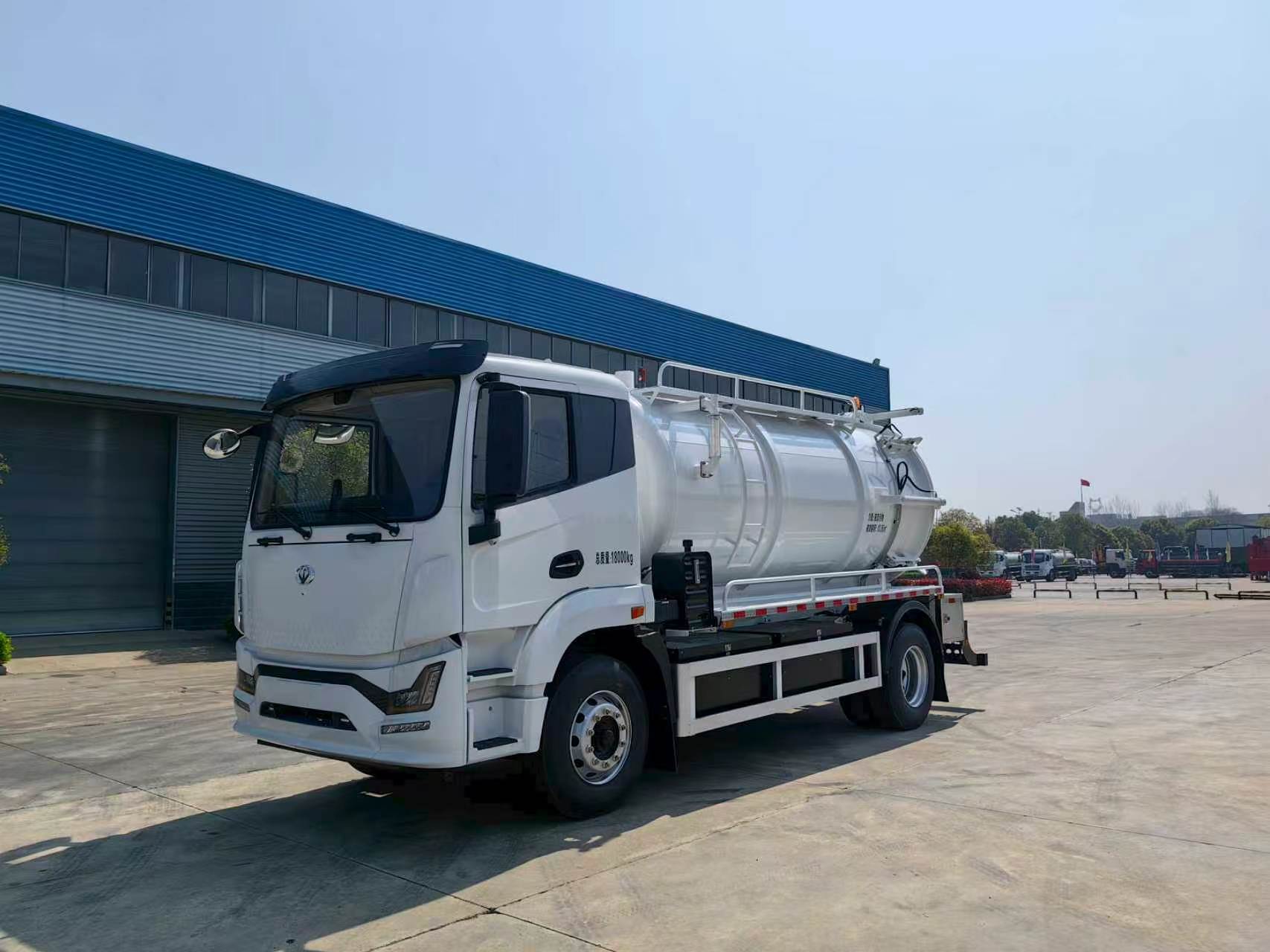

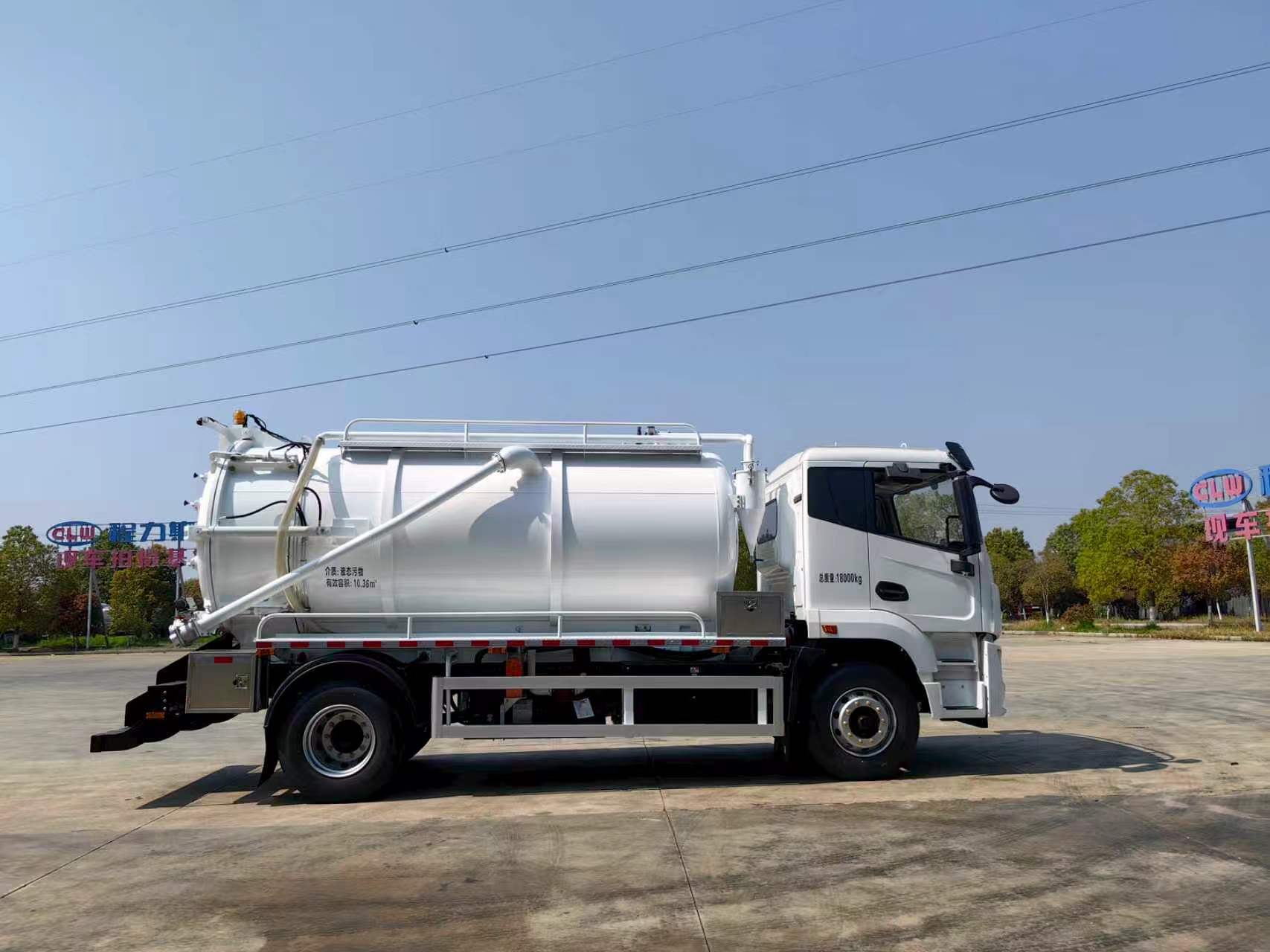

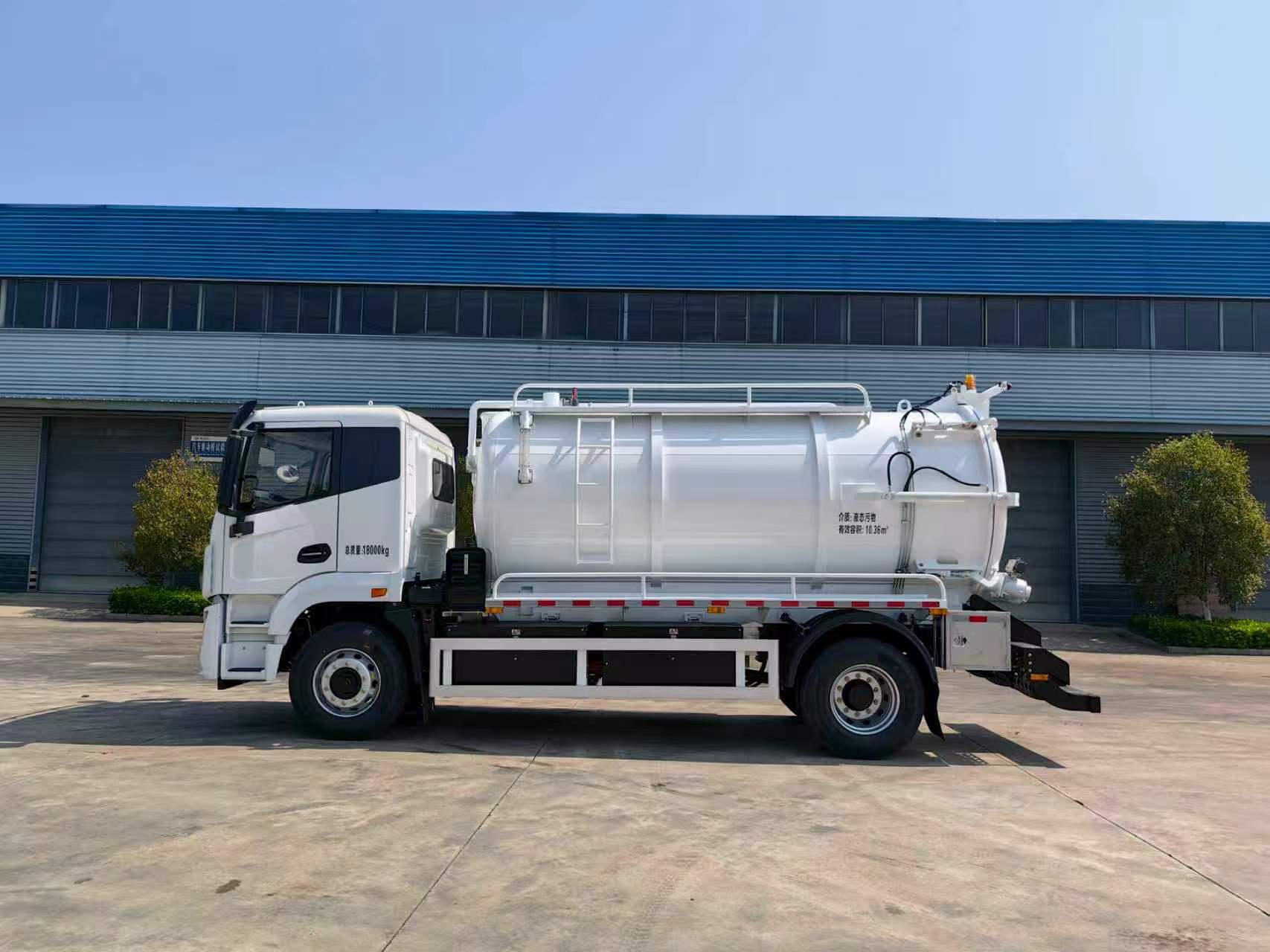

Product Appearance
Product Parameters
| Items | Parameter | Remark | |
| Vehicle Parameters | Vehicle | CL5180GXWBEVYW | |
| Max.Gross Vehicle Weight(kg) | 18000 | ||
| Curb Weight(kg) | 9580 | ||
| Payload(kg) | 8290 | ||
| Overall Dimensions(mm) | 8010×2520,2550×3450,3600 | ||
| Wheelbase(mm) | 4500 | ||
| Front/Rear Overhang(mm) | 1490/2020 | ||
| Front/Rear Wheel Track(mm) | 2016/1868 | ||
| Chassis Parameters | Battery Type | Lithium Iron Phosphate | |
| Brand | CALB | ||
| Battery Capacity(kWh) | 194.45 | ||
| Motor Type | Permanent Magnet Synchronous Motor | ||
| Rated/Peak Power(kW) | 120/200 | ||
| RatedPeak Torque(Nm) | 500/1000 | ||
| Rated /Peak Speed(rpm) | 2292/4500 | ||
| Max.Vehicle Speed(km/h) | 90 | / | |
| Driving Range(km) | 300 | Costant Speed Method | |
| Charging Time(min) | 30(single-gun fast charging) | 30%-80%SOC | |
| Superstructure Parameters |
Tank dimensions: Overall length (including end caps) × diameter(mm) | 5000×Φ1800 | |
| Total tank volume(m³) | 10.87 | ||
| Vacuum pump shaft power（kW） | 13.6 | ||
| Vacuum pump speed(r/min) | 1300 | ||
| Effective suction depth(m) | ≥7 | ||
| Horizontal suction distance（m） | ≥40 | ||
| Tank filling time (excluding vacuum generation time)（min） | ≤12 | ||
| Tank lifting and discharge time（s） | ≤60 | ||
| Discharge method | Bottom-cylinder hydraulic lifting discharge | ||
Applications
The 18 Ton Electric Vacuum Truck is widely used for municipal sanitation, sewage collection, sewer and drainage cleaning, septic tank and cesspit cleaning, sludge removal, wastewater treatment, industrial wastewater management, and liquid waste transportation. It is also suitable for construction sites, urban drainage maintenance, emergency wastewater removal, residential communities, commercial facilities, hospitals, schools and rural sanitation operations, providing an efficient and environmentally friendly solution for the collection, transportation and disposal of sewage, sludge and other liquid waste.

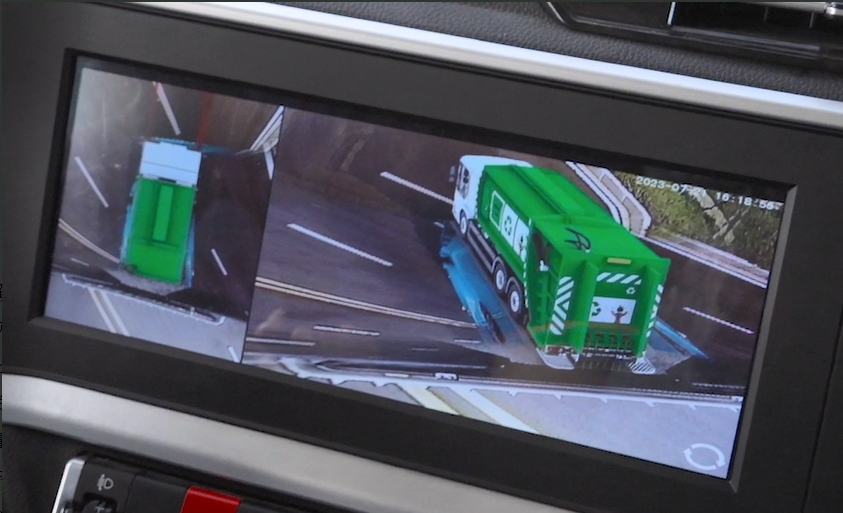

360° Around-View Camera System

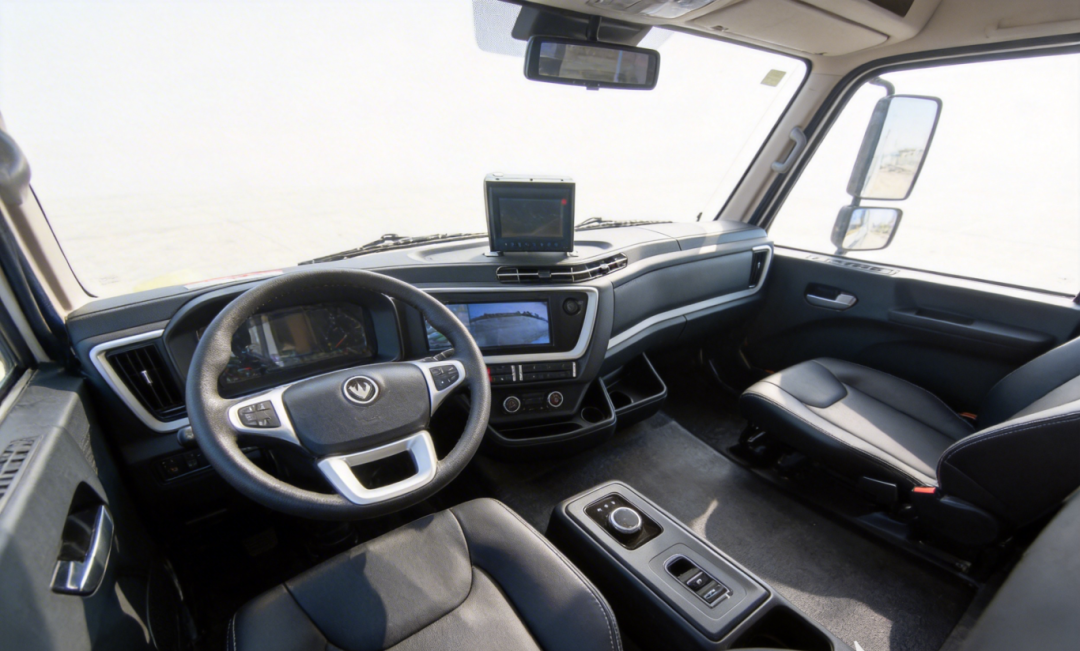

Ergonomic & Comfortable Cabin

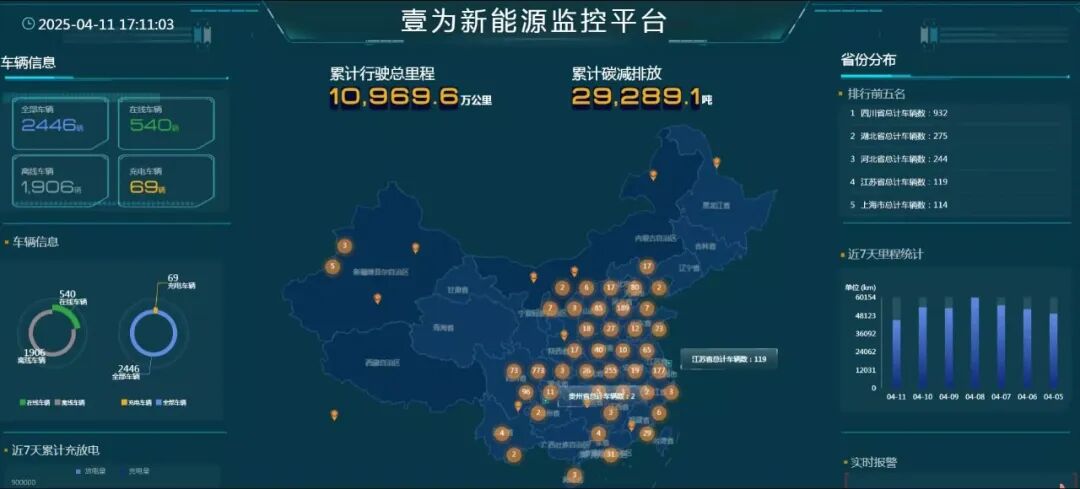

Data Monitoring Patform

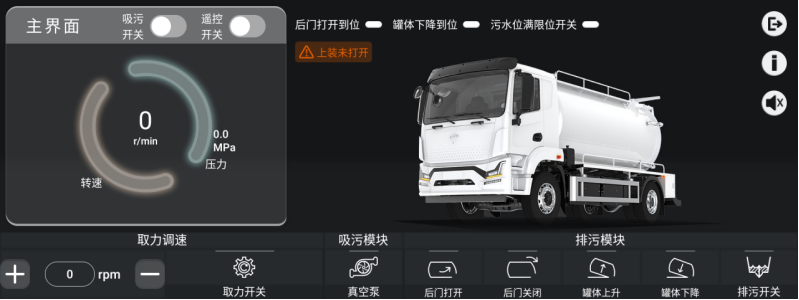

Central Control Display
Request a Quote now!
Looking for an efficient solution for sewage collection, sludge removal or sewer cleaning? Contact us to get product specifications, pricing, delivery options and technical support for the 18 Ton Electric Vacuum Truck. Our team can help you select the right configuration for your application and market requirements.
