Product Advantages & Key Features
· Pure Electric Powertrain –
Zero tailpipe emissions and low operating noise, providing an efficient and environmentally friendly solution for urban waste collection and municipal sanitation.
· Efficient Hook Lift System –
The hydraulic hook lift enables quick loading, unloading and replacement of detachable waste containers, simplifying daily waste transfer operations.
· One Truck, Multiple Containers –
One electric hook lift truck can work with multiple detachable containers, improving vehicle utilization and supporting flexible waste collection and transfer.
· Compact & Highly Maneuverable –
Designed for narrow streets, residential communities, commercial areas and other space-constrained environments where larger waste collection trucks may have limited access.
· Versatile Waste Collection Solution –
Compatible with different container types for household waste, commercial waste, construction debris and other solid waste collection and transportation needs.
· Lower Operating & Maintenance Costs –
Electric drive and simplified vehicle structure help reduce energy consumption, routine maintenance requirements and overall operating costs compared with conventional diesel garbage trucks.

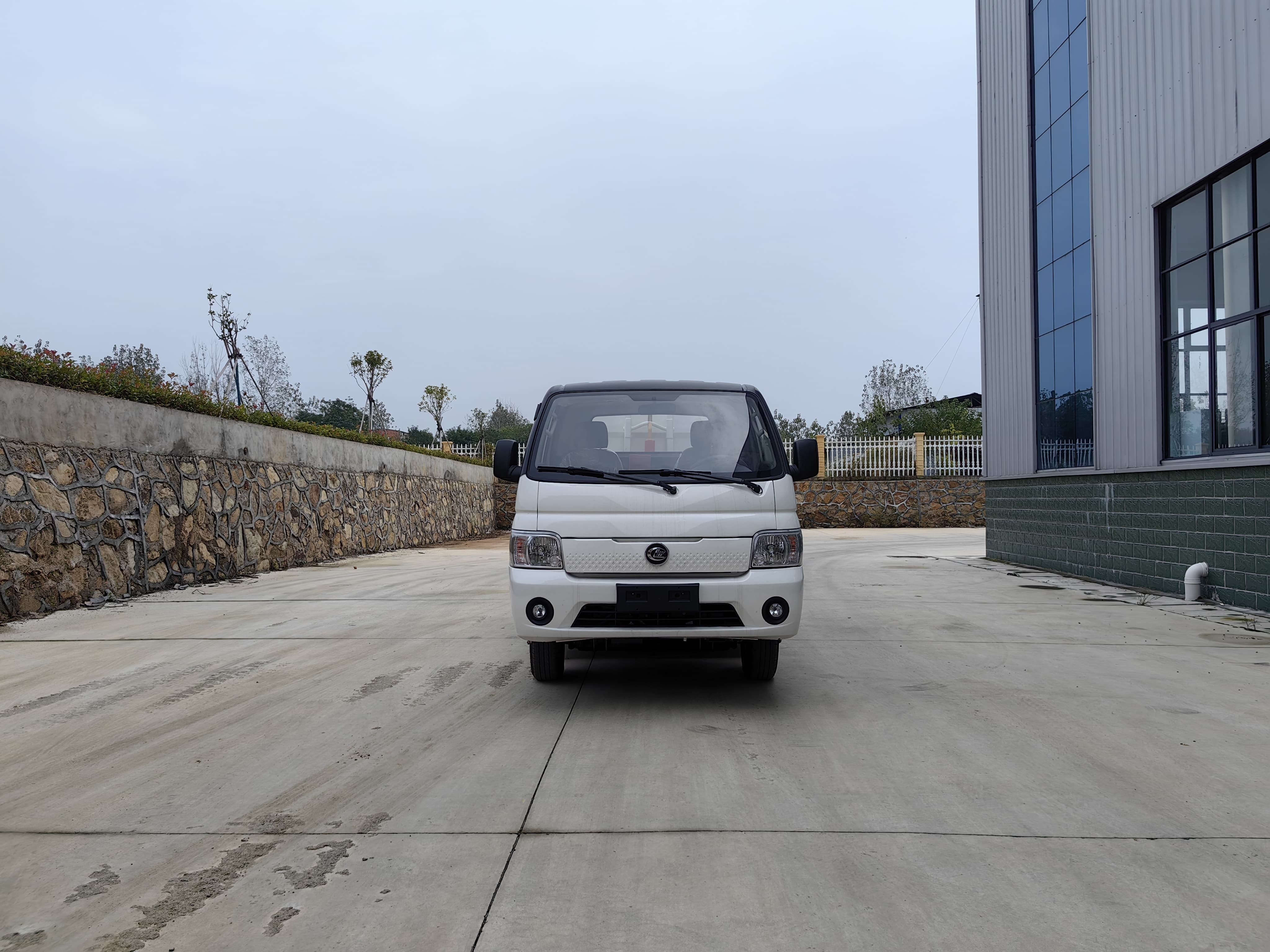

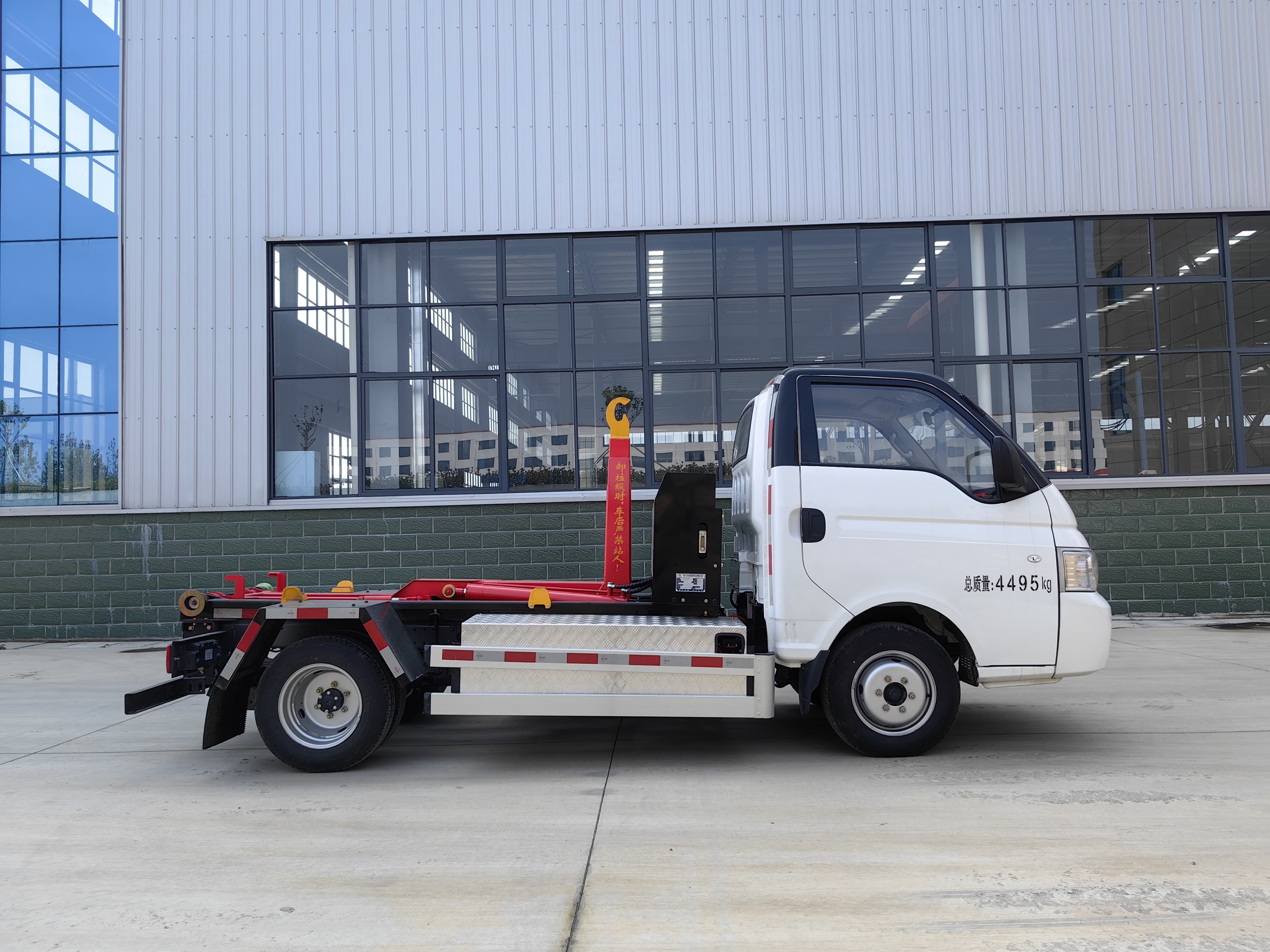

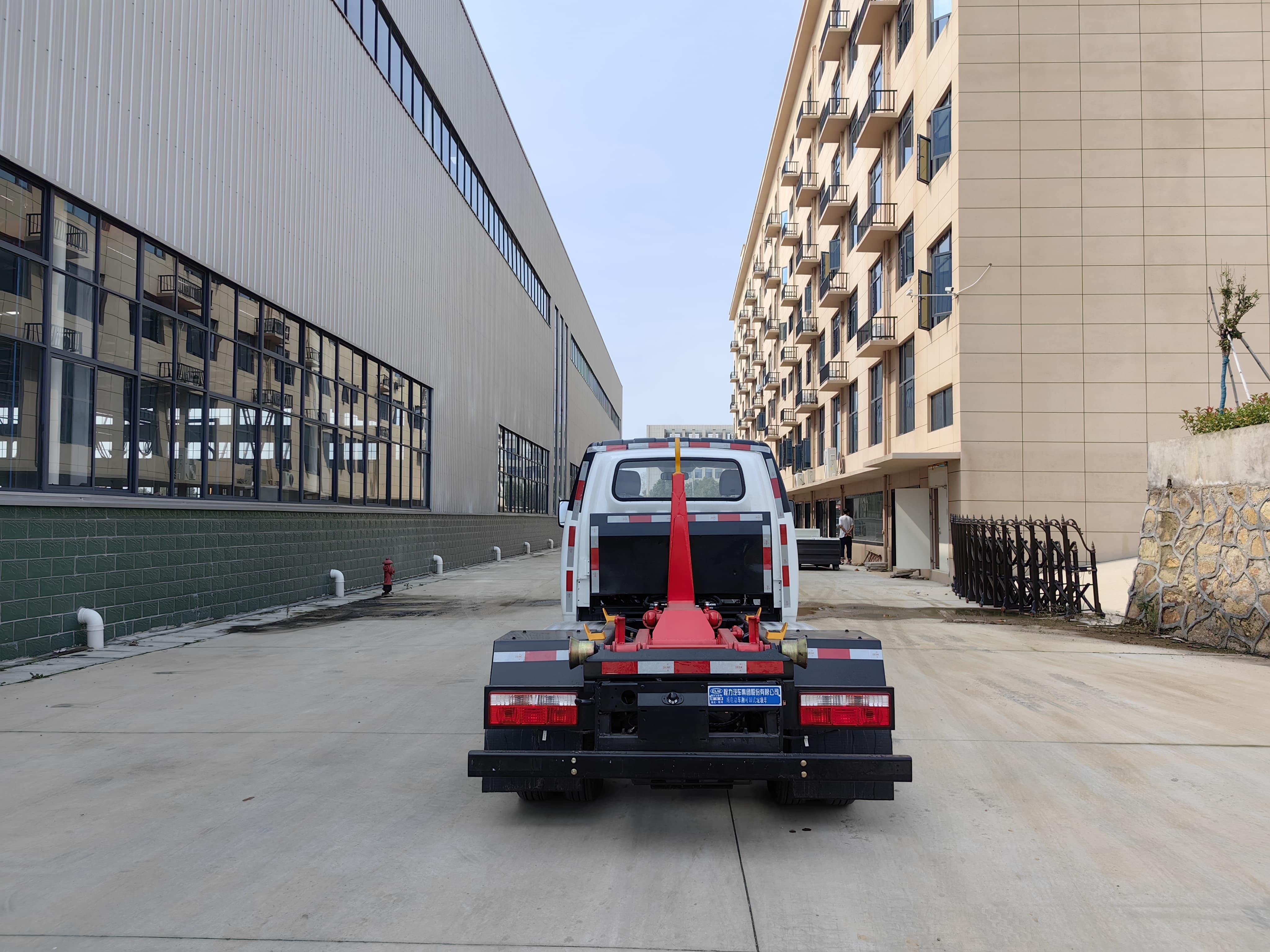

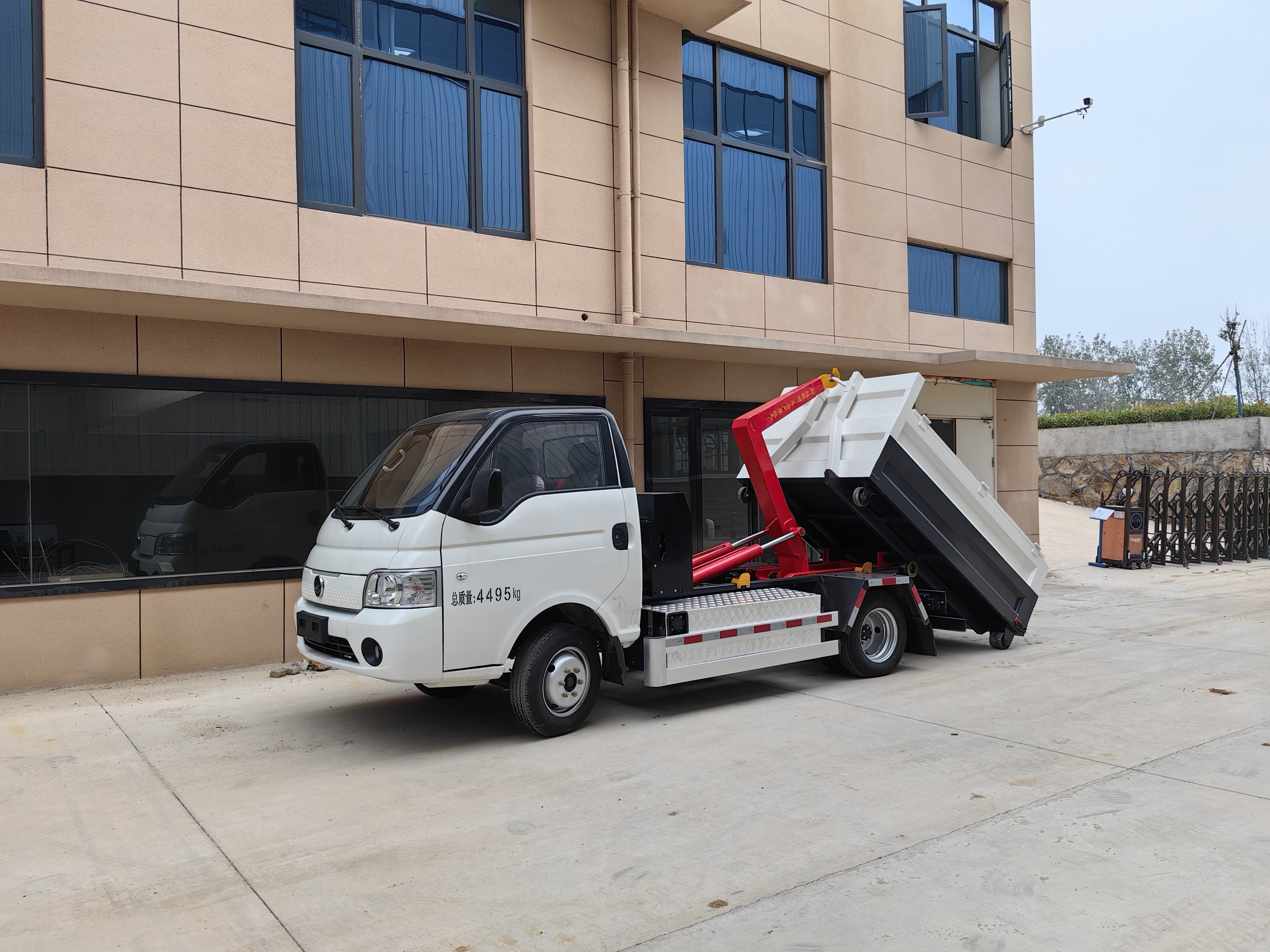

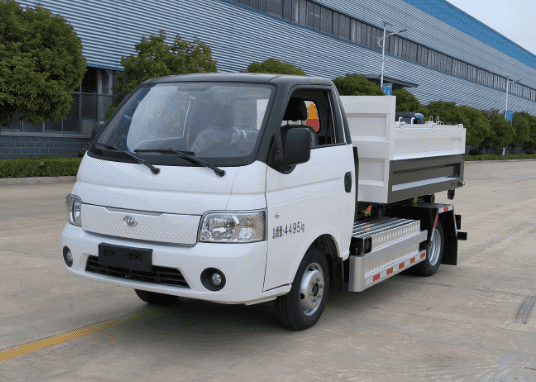

Product Appearance
Product Parameters
| Items | Parameter | Remark | |
| Vehicle Parameters |
Vehicle Model | CL5045ZXXBEV | |
| Max.Gross Vehicle Weight(kg) | 4495 | ||
| Curb Weight(kg) | 2510 | ||
| Payload(kg) | 1855 | ||
| Overall Dimensions(mm) | 4920×1840×2035 | ||
| Wheelbase(mm) | 2800 | ||
| Front/Rear Overhang(mm) | 1210/910 | ||
| Front/Rear Wheel Track(mm) | 1405/1240 | ||
| Tire Size | 185R15LT 8PR | ||
| Chassis Parameters | Chassis Model | CL1041JBEV | |
| Drive Type | 4x2 | ||
| Battery Type | Lithium Iron Phosphate | ||
| Brand | Gotion High-tech(Customization Support) | ||
| Battery Capacity(kWh) | 57.6 | ||
| Motor Model | TZ210XSZ03 | ||
| Rated/Peak Power(kW) | 55/150 | ||
| RatedPeak Torque(Nm) | 150/318 | ||
| Rated /Peak Speed(rpm) | 3500/12000 | ||
| Max.Vehicle Speed(km/h) | 90 | / | |
| Driving Range(km) | 265 | Costant Speed Method | |
| Charging Time(h) | 0.5(single-gun fast charging) | 30%-80%SOC | |
| Superstructure Parameters |
Maximum Hook Lifting Capacity(kg) | 3000 | |
| Hook Center Height(mm) | 1000 | ||
| Distance from Hook Center to Locking Crossbar(mm) | 1950 | ||
| Container Rail Clearance Height(mm) | 64 | ||
| Container Loading Time(s) | ≤25 | ||
| Container Unloading Time(s) | ≤25 | ||
| Compatible Container Length(mm) | 2000~3400 | ||
Applications
The 4.5 Ton Electric Hook Lift Garbage Truck is well suited to daily waste collection in residential communities, supermarkets, restaurants, markets, industrial parks and small construction sites. It can be positioned at waste generation points with detachable containers and used for scheduled collection and transfer. When a container is full, the truck can pick it up and transport it to a transfer station or waste treatment facility, then return with an empty container for continued collection. This flexible operating model helps improve waste collection efficiency while reducing unnecessary trips. Its electric and compact design also makes it suitable for urban areas, enclosed communities and noise-sensitive locations.

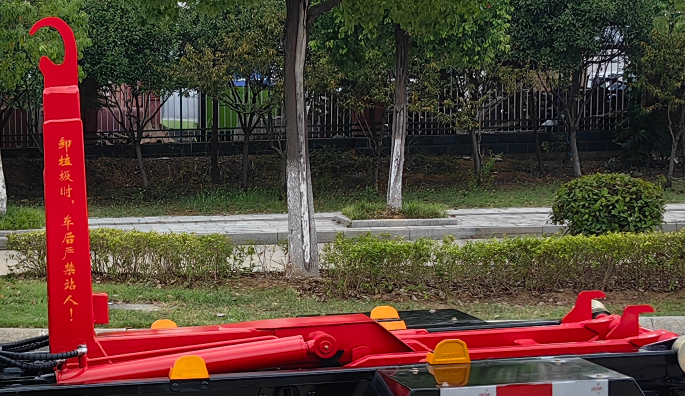

Hook Arm

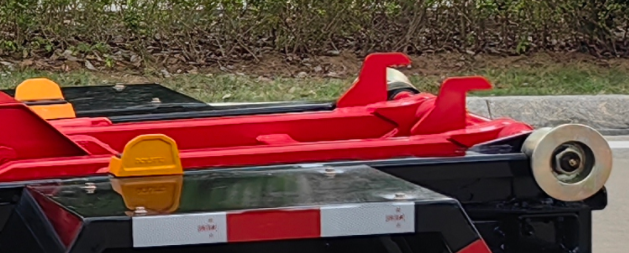

Container Locking Mechanism

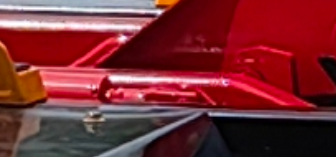

Locking Arm Mechanism

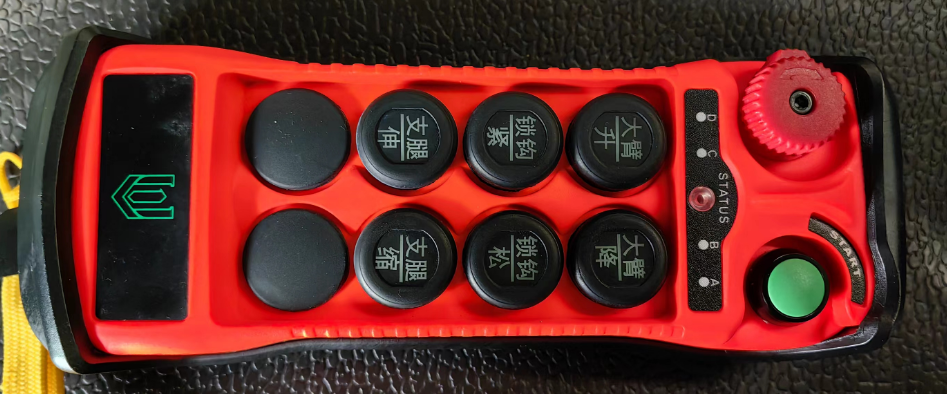

Wireless Remote Control
