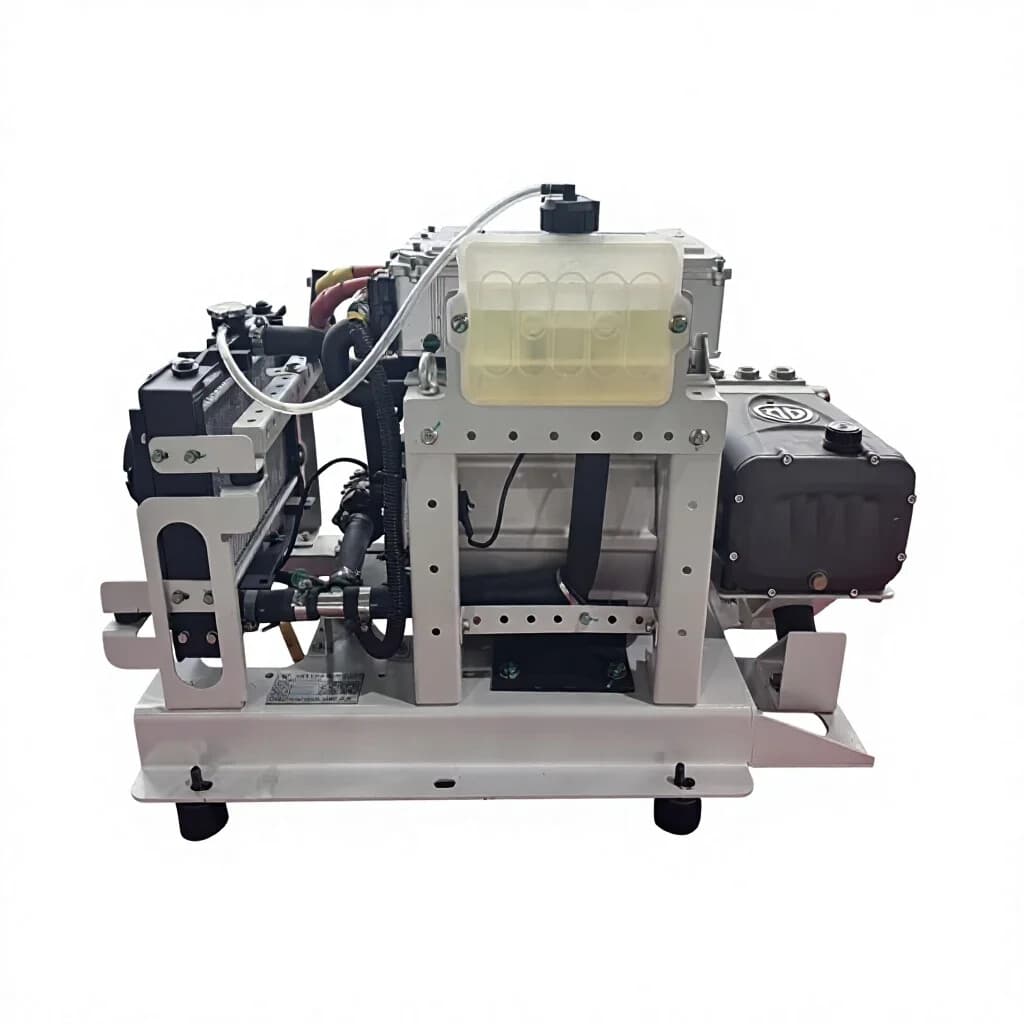

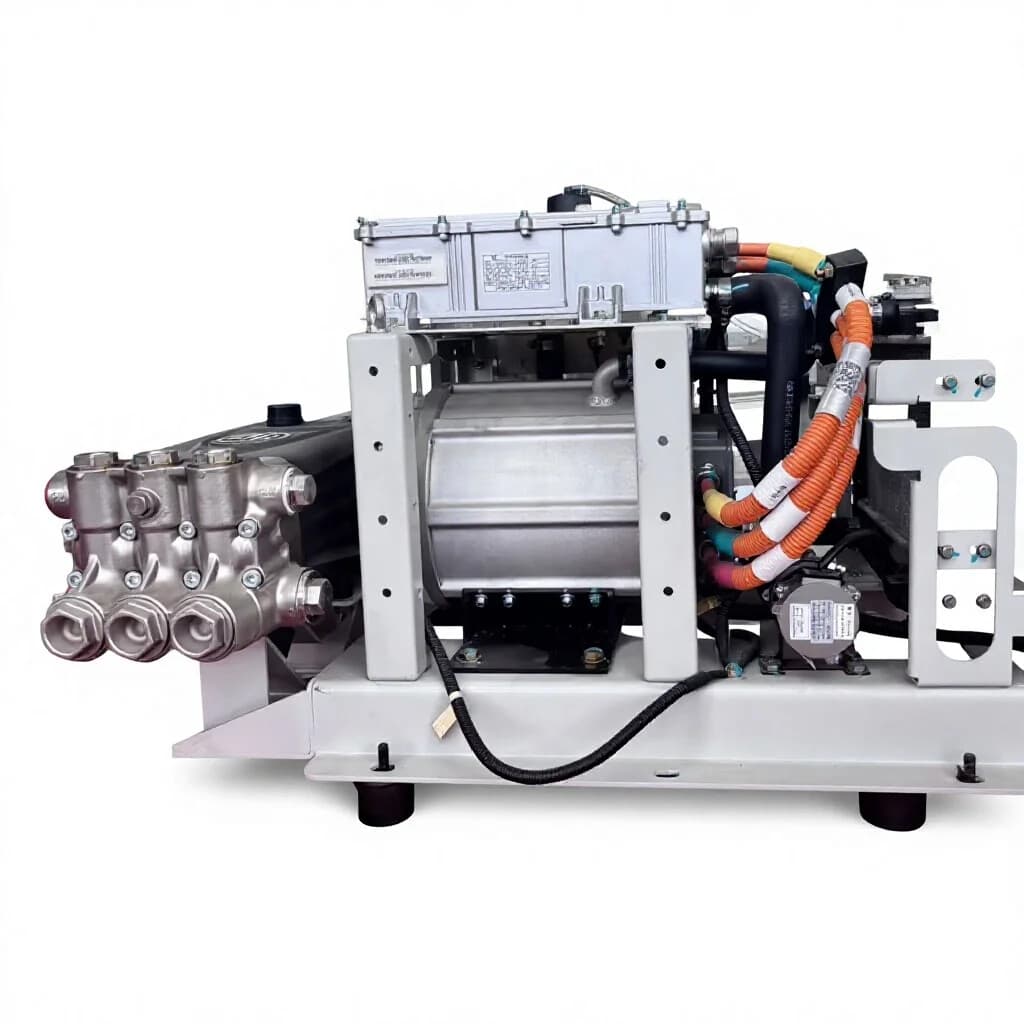

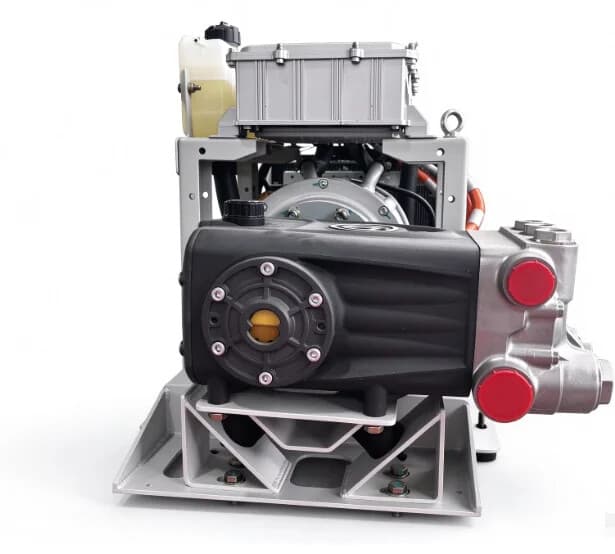

The 30kW High-Pressure Water Pump Power Unit is designed for electric commercial and special-purpose vehicles requiring powerful, high-flow water delivery. With 30kW rated power, 45kW peak power, 10MPa maximum pressure and 142L/min flow, it provides stable power for demanding washing, spraying and water-based operations. Its liquid-cooled design supports reliable performance during extended operation.
Typical Applications
· Road cleaning and maintenance vehicles
· Municipal service vehicles
· Landscaping and irrigation vehicles
· High-pressure washing vehicles
· Construction and industrial cleaning equipment
Product Advantages
· High-Pressure & High-Flow Performance: Delivers up to 10MPa pressure and 142L/min flow for intensive washing, flushing and spraying applications.
· Powerful Electric Drive: 30kW rated power and 45kW peak power provide dedicated auxiliary power for demanding water systems.
· Stable Continuous Operation: Liquid cooling helps manage heat during extended high-load operation.
· Flexible System Integration: Designed for integration with different vehicle platforms and water pump systems, with customized configurations available.
OEM & Customization Support
· Pump and flow configuration
· Customized mounting interfaces
· Vehicle and equipment integration
· OEM & ODM services
| Rated Voltage | AC 380V | Nominal Displacement | 142 L/min |
|---|---|---|---|
| Rated Speed | 1500 r/min | Greatest Pressure | 10 MPa |
| Rated Power | 30 kW | Pump Brand | Pinfu, AR |
| Peak Speed | 2250 r/min | Cooling Method | Liquid Cooling |
| Peak Power | 45 kW | Weight | 140 kg |
| Applicable Models | GVW 18 tons road cleaning truck |

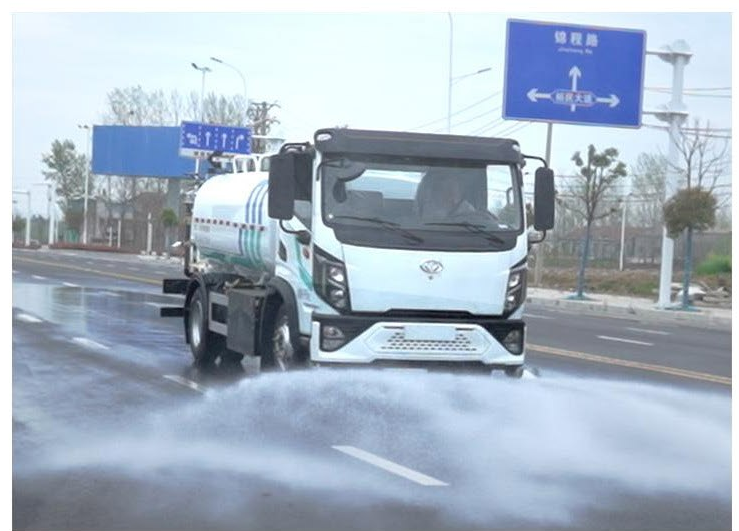

Road Washing

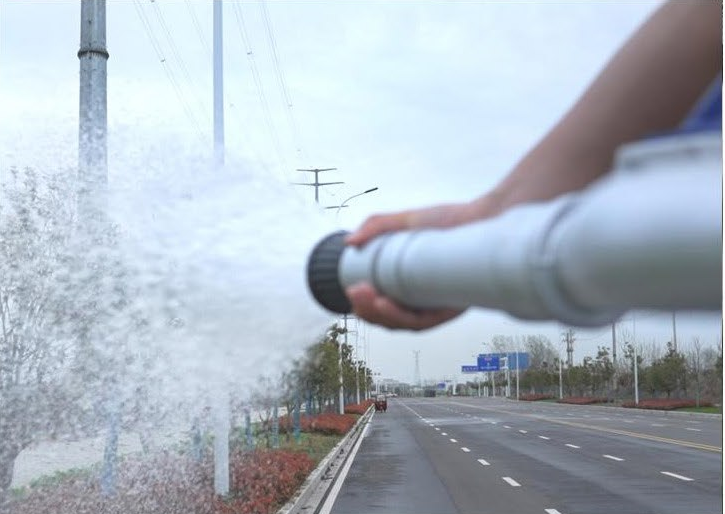

Municipal Cleaning
Landscaping & Irrigation

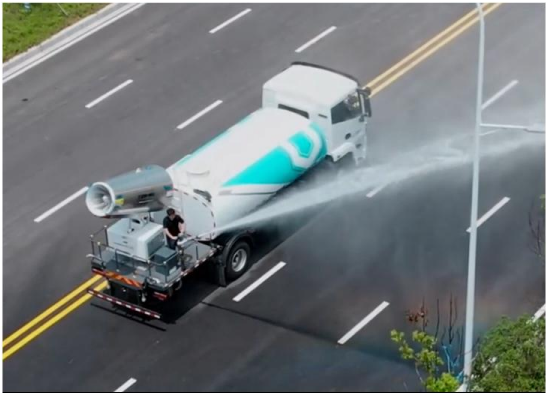

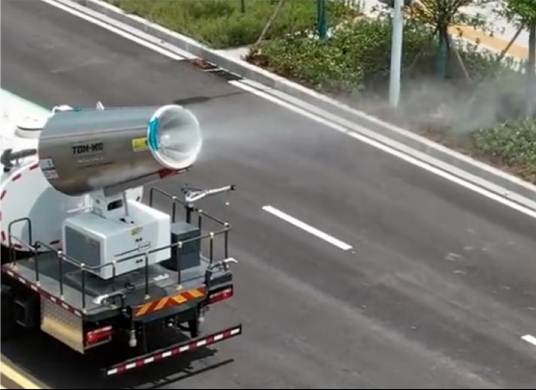

Dust Suppression
