Product Advantages & Key Features
1. Purpose-Built Electric Chassis
The 4.5-ton electric road maintenance truck features an integrated chassis and body design developed specifically for municipal cleaning applications. Dedicated mounting spaces and interfaces improve the fit between the chassis and superstructure while preserving the original chassis structure and corrosion protection, delivering enhanced reliability and overall vehicle performance.
2. CAE-Optimized Lightweight Design
The complete vehicle is optimized through CAE analysis to meet different operating conditions while reducing vehicle weight. The lightweight design provides greater usable water capacity and supports longer continuous cleaning operations, with an effective tank capacity of up to 2.5 m³.
3. Durable E-Coated Frame
The chassis frame uses high-strength 510L/610L steel combined with an advanced electrophoretic coating process for improved corrosion resistance. This helps protect key structural components against corrosion and supports long-term durability in demanding road cleaning environments.
4. Versatile Road Cleaning Functions
Designed as a multifunctional electric road maintenance vehicle, it integrates multiple cleaning systems, including a front spray boom, spot spray system, left and right corner sprays, hose reel with handheld spray gun, and manual push spray boom. The front spray boom and spot spray system can be adjusted in multiple directions and operated independently or in combination for flexible cleaning operations.
5. High-Performance Road Washing System
The vehicle is equipped with a high-pressure water pump and a wide front spray boom for efficient road washing. The combination of high-pressure spraying, a large-capacity water tank and a hose reel provides extended operating capability for road washing, curb cleaning, dust suppression and municipal maintenance.
6. Multiple Operating Modes
Three selectable operating modes — Eco, Standard and Power — allow operators to adjust vehicle performance according to different working conditions. This helps balance energy consumption, cleaning performance and operating efficiency.
7. Intelligent Fleet & Operation Management
The vehicle supports real-time vehicle monitoring and operation data management, helping fleet operators understand vehicle usage, analyze operating patterns and optimize maintenance and management decisions.

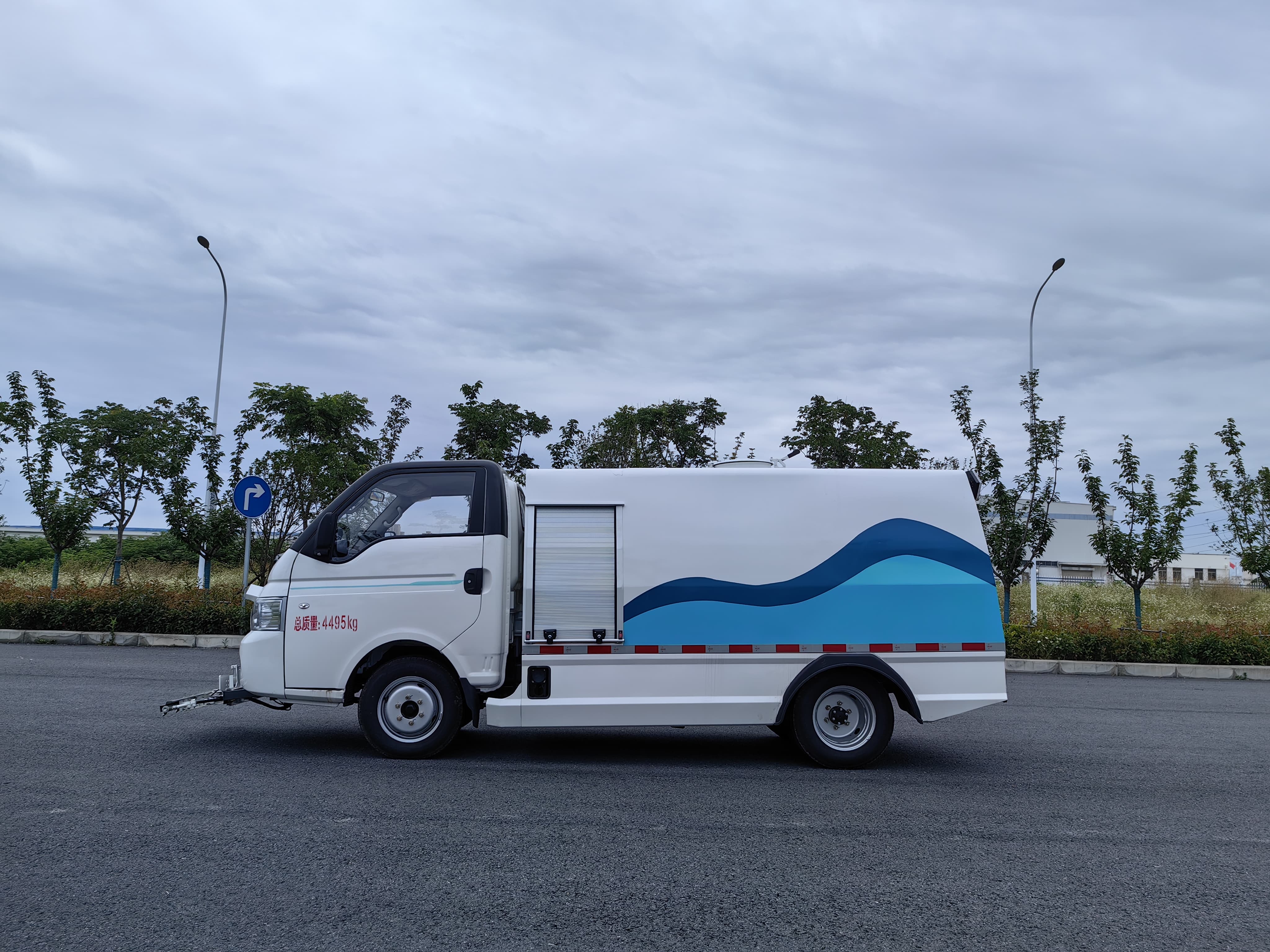

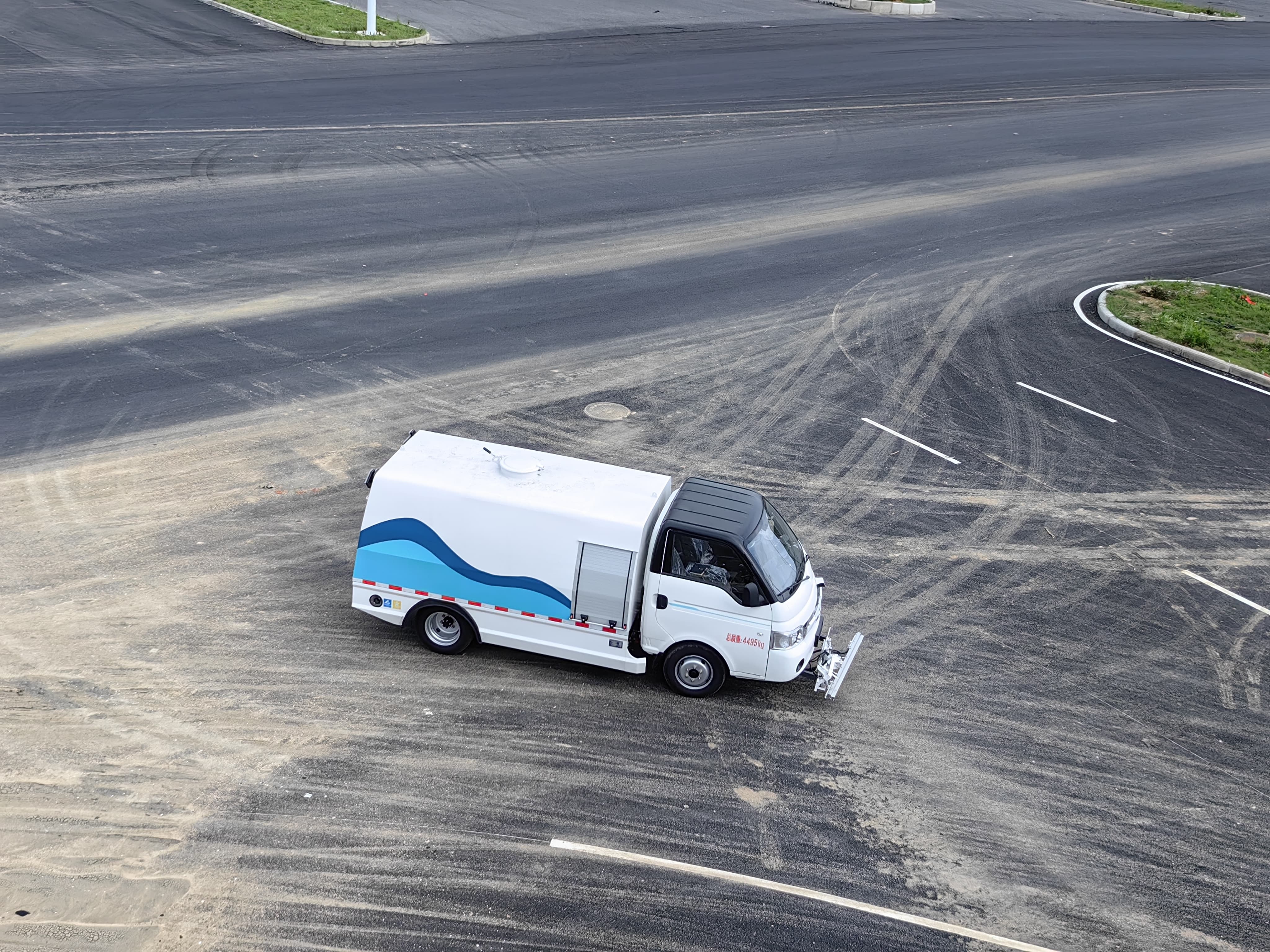

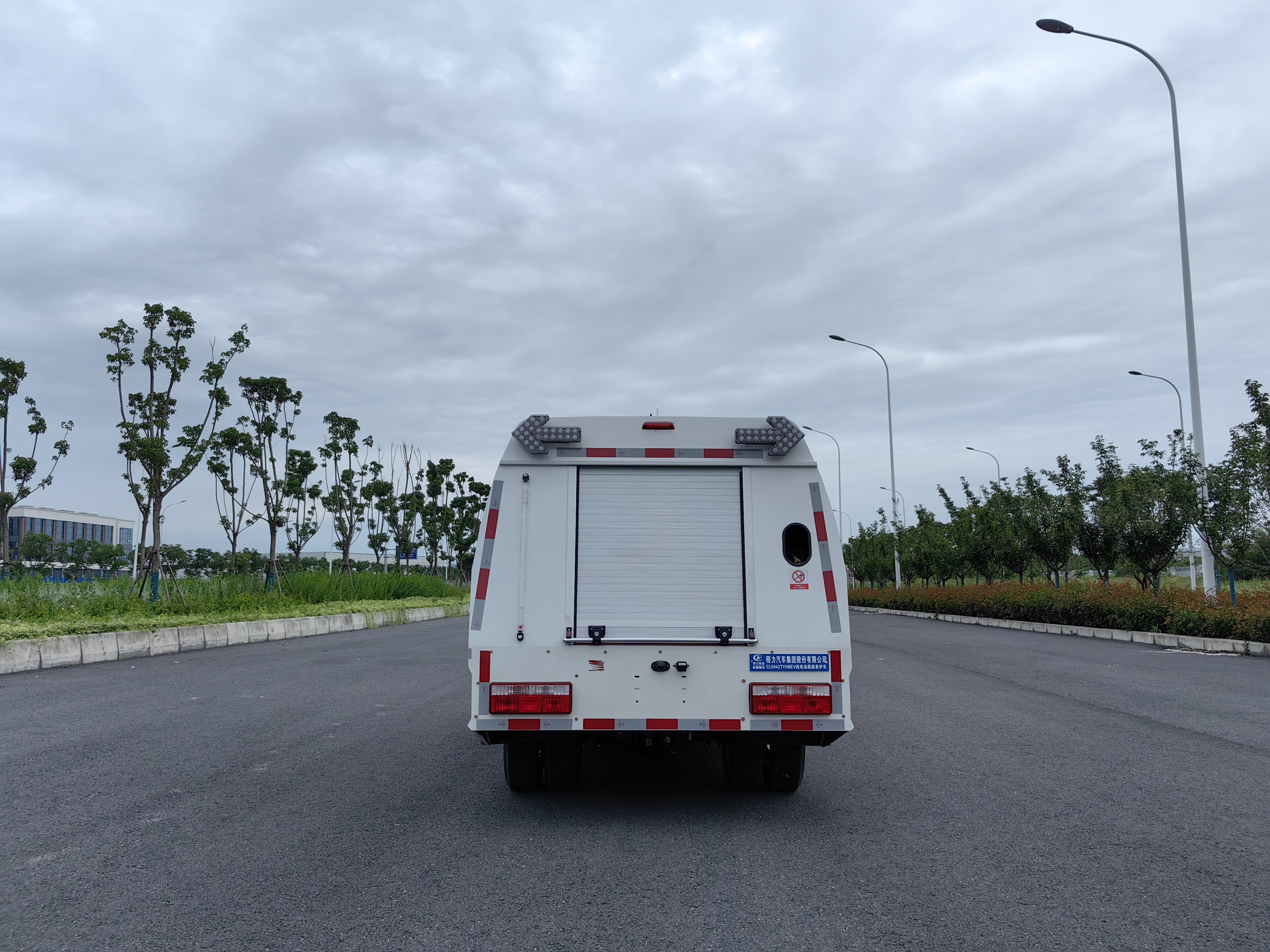

Product Appearance
Product Parameters
| Items | Parameter | |
| Official Parameters |
Vehicle | CL5042TYHBEV |
| Weight Parameters |
Max.Gross Vehicle Weight(kg) | 4495 |
| Curb Weight(kg) | 2860 | |
| Payload(kg) | 1505 | |
| Vehicle Parameters |
Overall Dimensions(mm) | 5440×1880×2150(optional),2250(standard) |
| Wheelbase(mm) | 2800 | |
| Front Extension / Front Overhang / Rear Overhang(mm) | 415/1210/1015 | |
| Approach Angle / Departure Angle | 11/18(°) | |
| Front / Rear Track（mm） | 1405/1240 | |
| Minimum Ground Clearance（mm） | 185 | |
| Minimum Turning Diameter(m) | 13 | |
| Tire Size | 185R15LT 8PR | |
| Chassis Parameters | Type | Lithium Iron Phosphate |
| Drive Configuration | 4x2 | |
| Brand | (Customization Support) | |
| Battery Capacity(kWh) | 57.6 | |
| Maximum Speed(km/h) | 90 | |
| Driving Range(km) | 265 (40 km/h constant-speed test) | |
| Maximum Gradeability (Fully Loaded) | 25% | |
| Charging Time (20%–100%) | 1.0h (Single-Gun Fast Charging) | |
| Superstructure Parameters |
Water Tank Capacity | 2.5m³ |
| Superstructure Motor Rated / Peak Power | 10 / 15kw | |
| High-Pressure Water Pump Rated Pressure(Mpa) | 20 (Standard) / 25 (Optional) | |
| High-Pressure Water Pump Rated Flow(L/min) | 40 (Standard) / 30 (Optional) | |
| Water System Pressure(Mpa) | 12 (Standard) / 13 (Optional) | |
| Front Spray Boom | Cleaning width ≥1.7 m; 100 mm vertical adjustment; 20° lateral swing | |
| Hose Reel | 15 m standard; 20 m optional | |
| Cleaning Equipment | Standard: Front spray boom, spot spray, left/right corner spray, hose reel with handheld spray gun, manual push spray boom; Optional: Rear spray system, lifting platform | |
Applications
The 4.5-ton electric road maintenance truck is designed for a wide range of municipal and commercial cleaning applications. Its versatile cleaning and high-pressure washing systems make it suitable for urban roads, streets, residential communities, industrial parks, commercial areas and public spaces. It can be used for road washing, curb and roadside cleaning, dust suppression, and routine municipal maintenance. With its pure electric powertrain and flexible cleaning equipment, the vehicle provides a quieter and more environmentally friendly solution for daily urban sanitation and road maintenance operations.

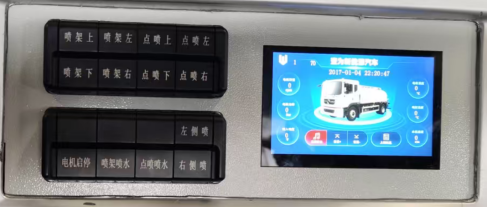

Superstructure Touch Screen
Monitoring&Imaging

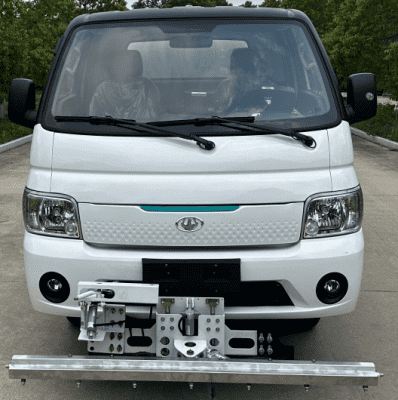

Front Spray

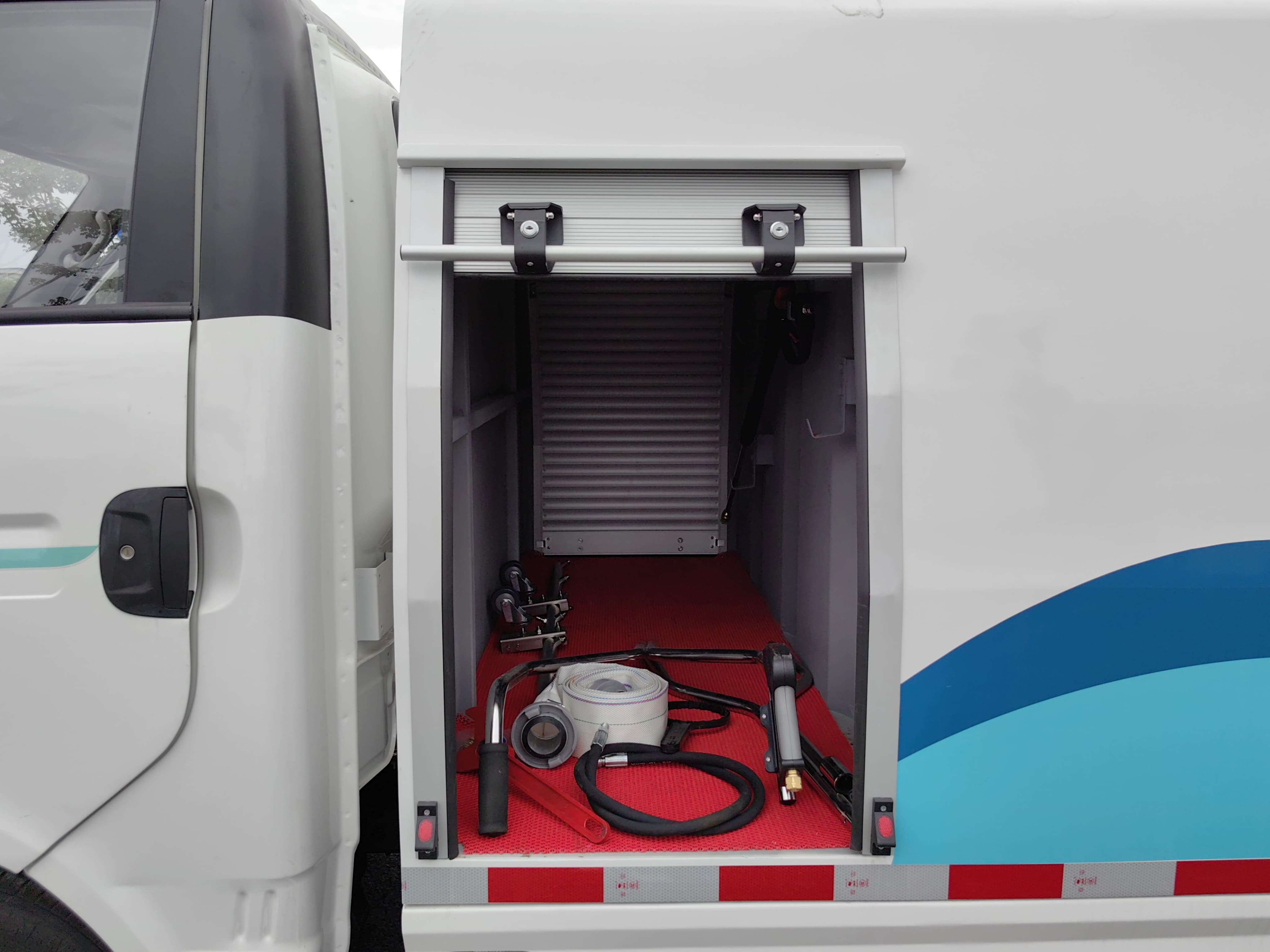

304 Container
Request a Quote now!
Looking for the right electric road maintenance truck for your market? Contact Yiwei for pricing, detailed specifications, configuration options and customized solutions. Our team can recommend the right vehicle configuration based on your operating conditions and application needs.
