Product Advantages & Key Features
1.Safer & More Stable Aerial Operations
Intelligent control and safety systems help improve vehicle stability and operational safety, reducing risks during high-altitude work.
2.Designed for Tight Urban Spaces
Compact vehicle design and excellent maneuverability make it easier to access narrow streets, residential areas, and confined work sites.
3.Chassis & Superstructure Integration
Purpose-designed integration improves equipment compatibility, weight distribution, and overall vehicle stability while simplifying body installation.
4.Lower Operating Costs
Pure electric operation reduces fuel consumption, routine maintenance requirements, and operating noise compared with conventional diesel aerial work trucks.
5.Efficient & Easy to Operate
Smooth electric power delivery, electric steering, and intelligent controls make daily driving and aerial operations more convenient.
6.Durable for Demanding Work
High-strength structural materials, anti-corrosion treatment, and comprehensive vehicle testing support reliable long-term operation.
7.Adaptable to Multiple Applications
Suitable for power line maintenance, street lighting, telecommunications, municipal services, facility maintenance, and other aerial work applications.

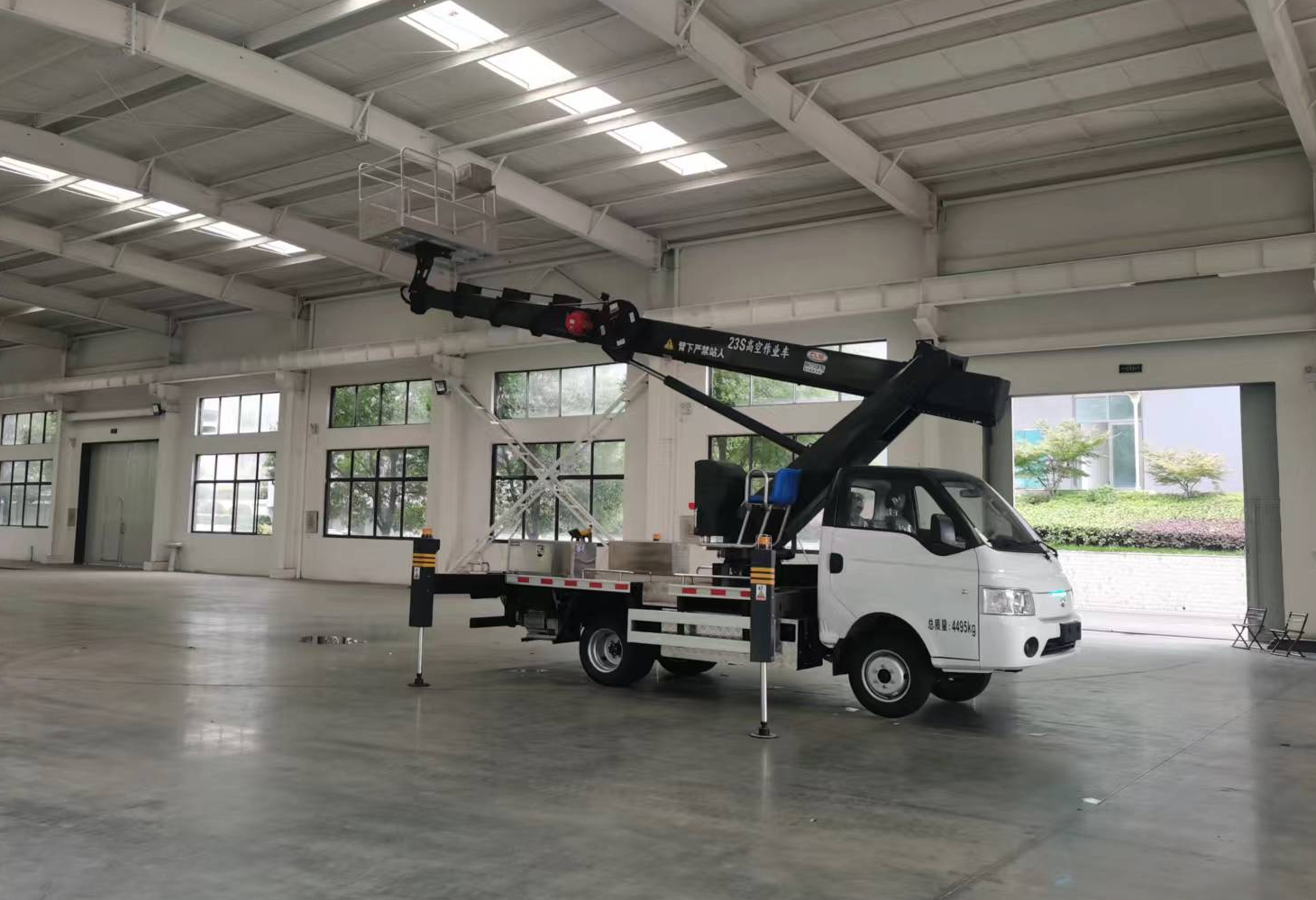

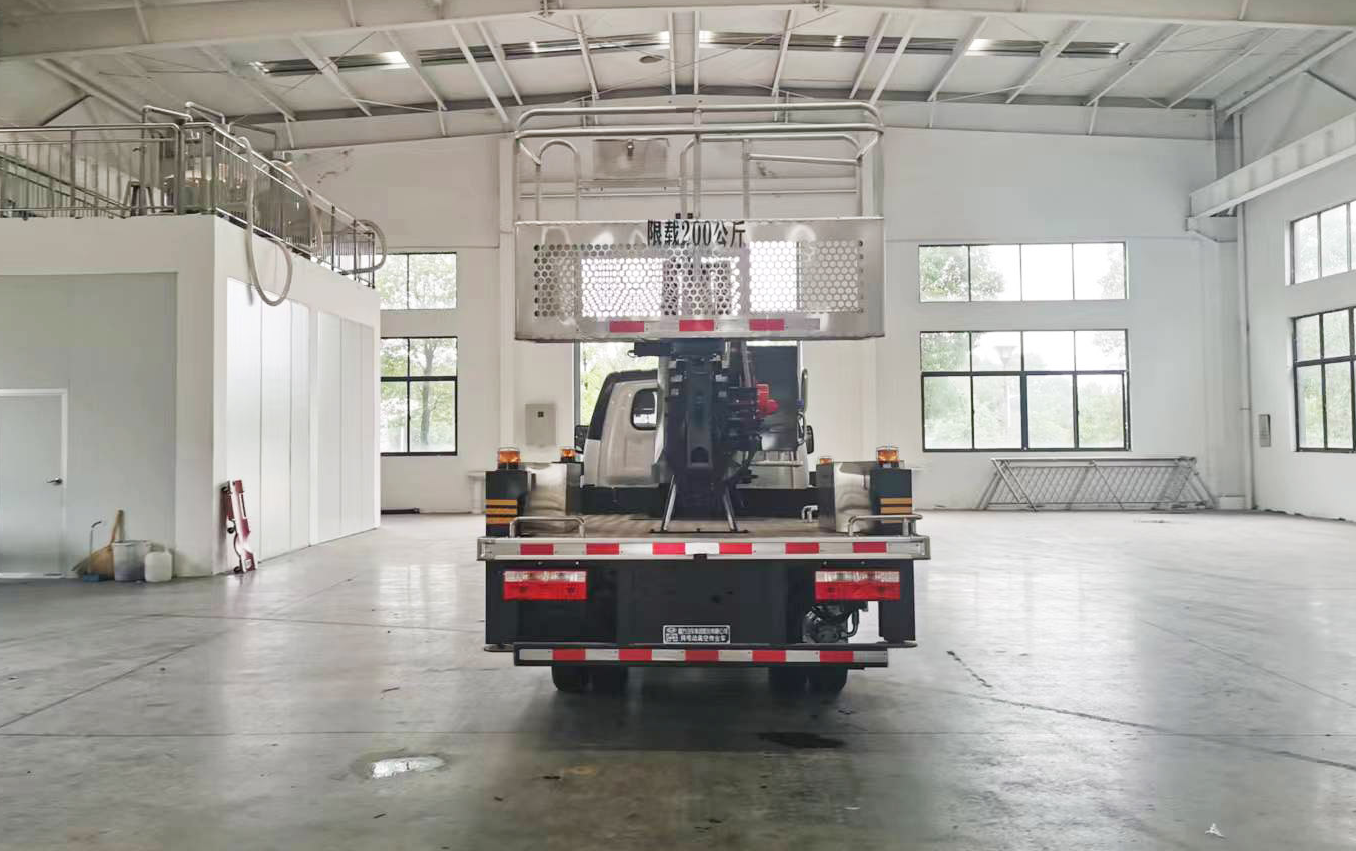

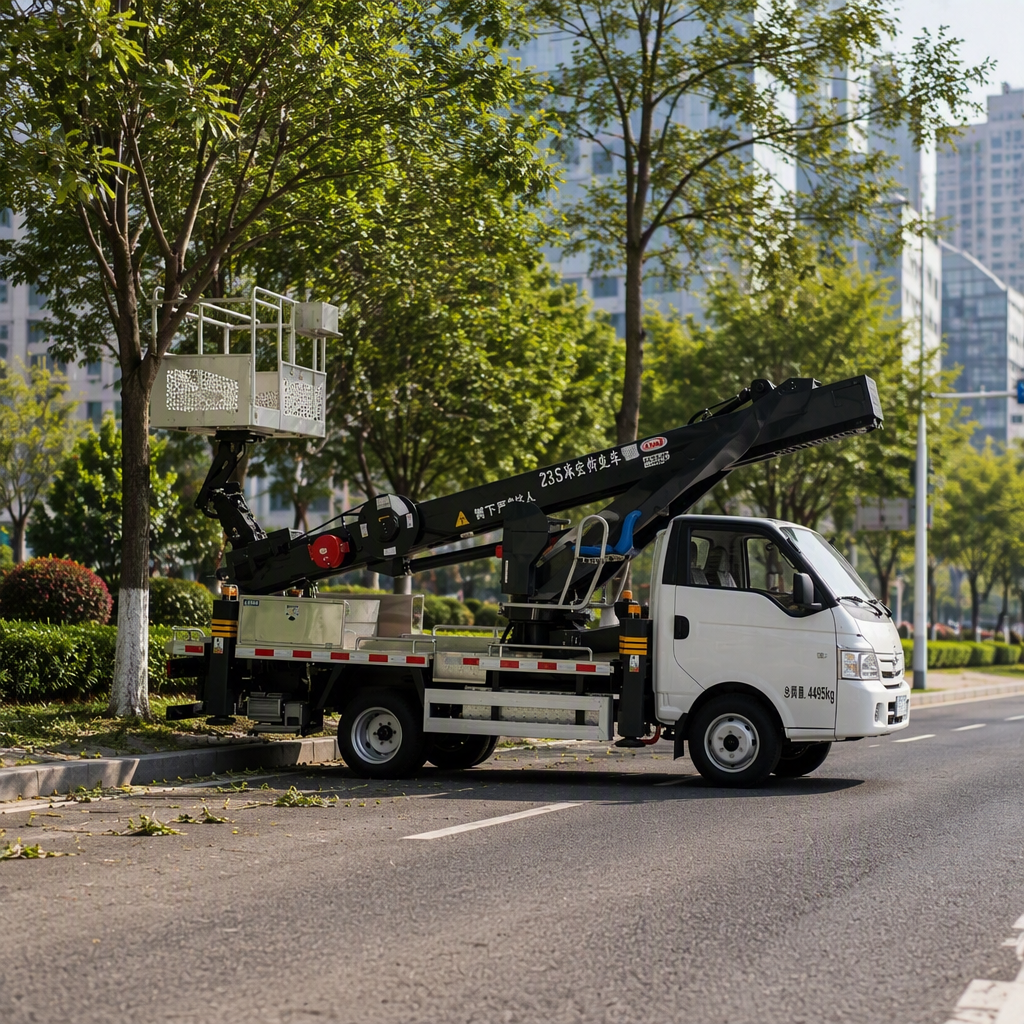

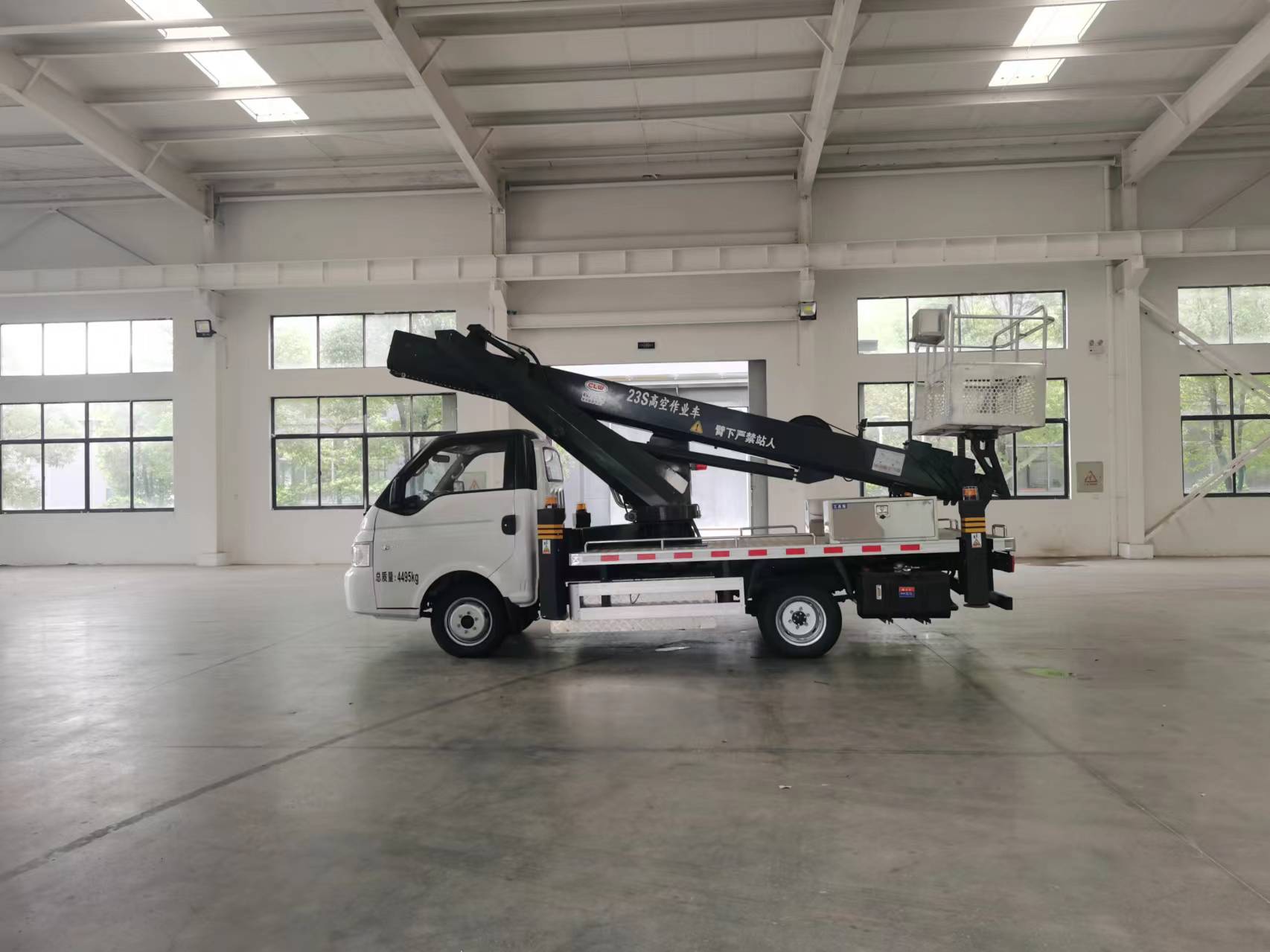

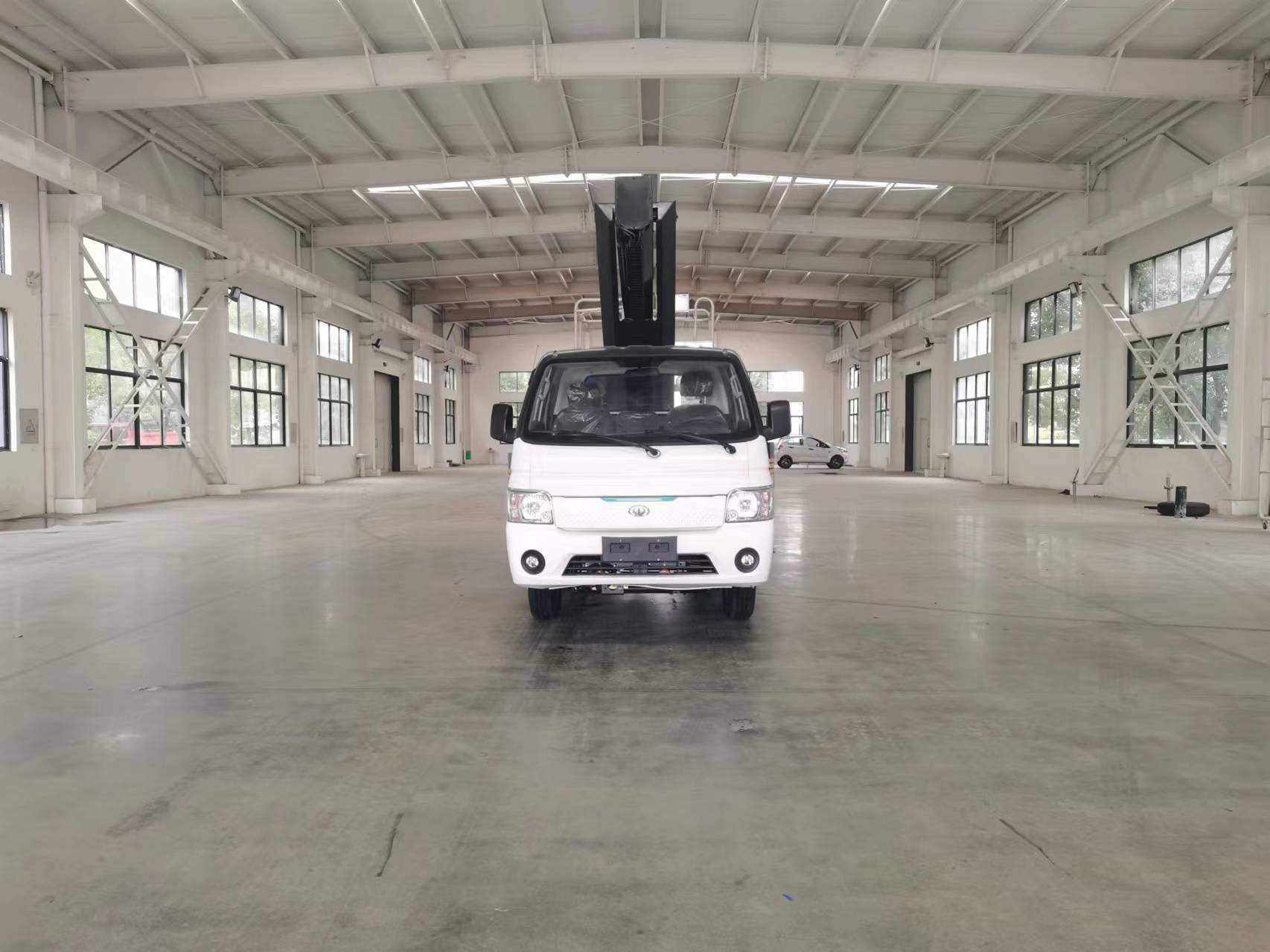

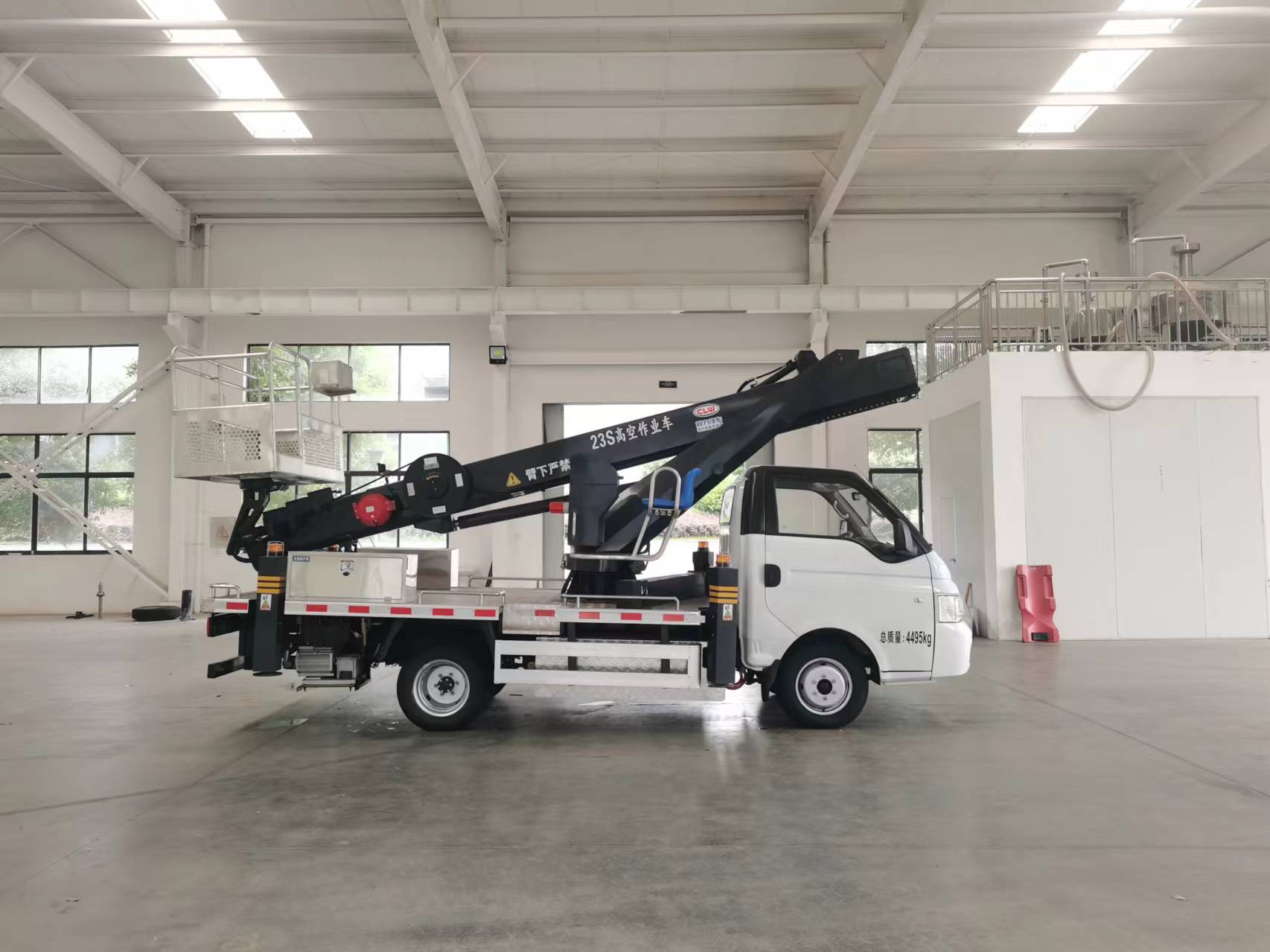

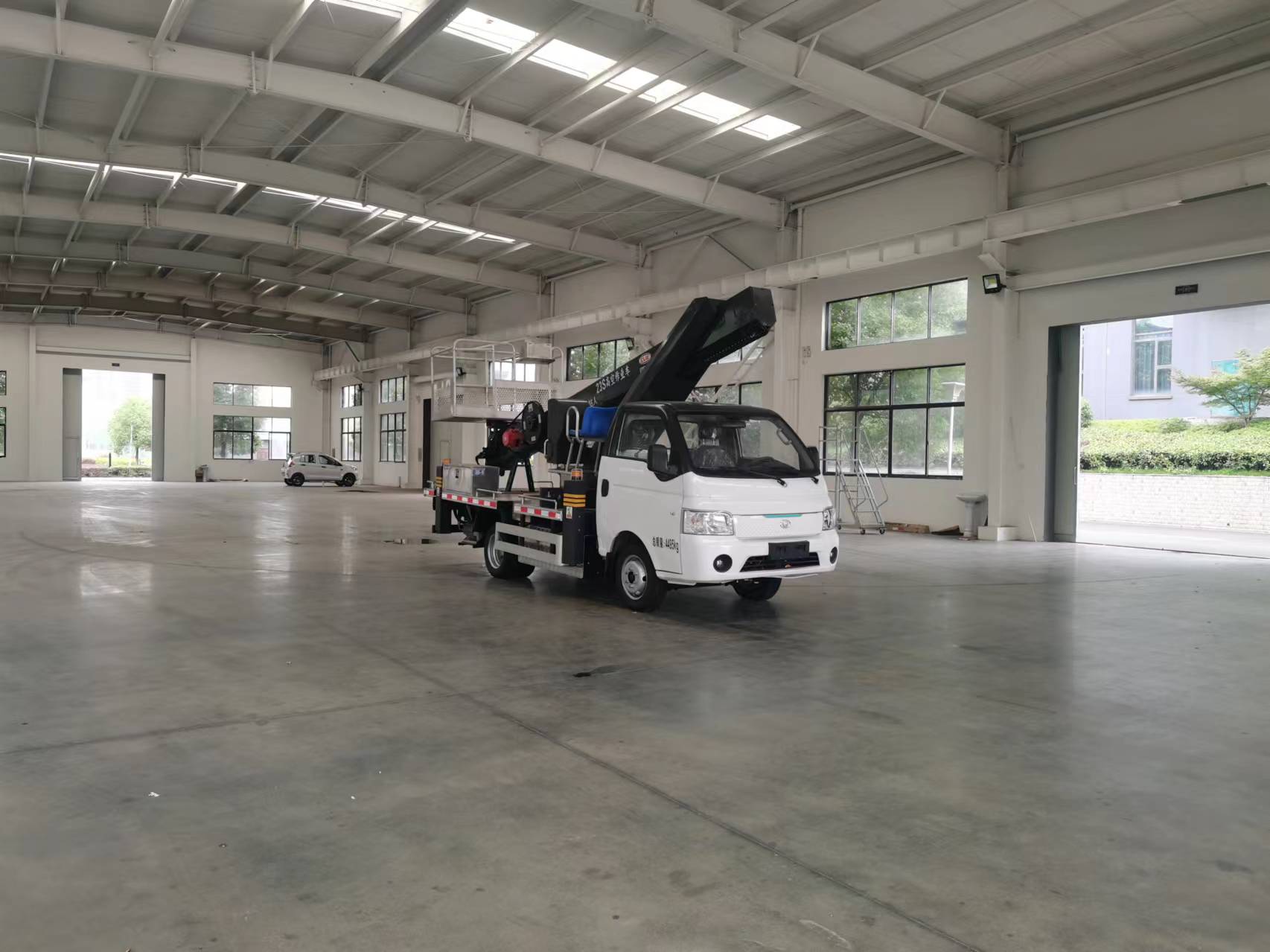

Product Appearance
Product Parameters
| Items | Parameter | Remark | |
| Official Parameters |
Vehicle |
CL5042JGKBEV
|
|
| Chassis |
CL1041JBEV
|
||
| Weight Parameters |
Max.Gross Vehicle Weight(kg) | 4495 | |
| Curb Weight(kg) | 4365 | ||
| Dimension Parameters |
Overall Dimensions(mm) |
5998X2080×2950/3100/3200
|
|
| Wheelbase(mm) | 2800 | ||
| Front/Rear Overhang(mm) | 1260/1938 | ||
| Power Battery | Type | Lithium Iron Phosphate | |
| Brand | Gotion High-tech（Customization Support） | ||
| Battery Capacity(kWh) | 57.6 | ||
| Chassis Motor | Type | Permanent Magnet Synchronous Motor | |
| Rated/Peak Power(kW) | 55/110 | ||
| RatedPeak Torque(Nm) | 150/318 | ||
| Rated /Peak Speed(rpm) | 3500/12000 | ||
| Additional Parameters |
Max.Vehicle Speed(km/h) | 90 | / |
| Driving Range(km) | 265 | Costant Speed Method | |
| Charging Time（h) | 1.5 | ||
| Specific Parameters |
Rated Load Capacity of Work Platform (kg) | 200 | |
|
Maximum Working Height (m) |
23 | ||
| Working Radius at Maximum Working Height (m) |
5 | ||
| Maximum Working Radius (m) | 11 | ||
| Working Height at Maximum Working Radius (m) |
7 | ||
| Lateral Outrigger Spread (mm) | 4200 | ||
| Longitudinal Outrigger Spread (mm) | 4000 | ||
Applications

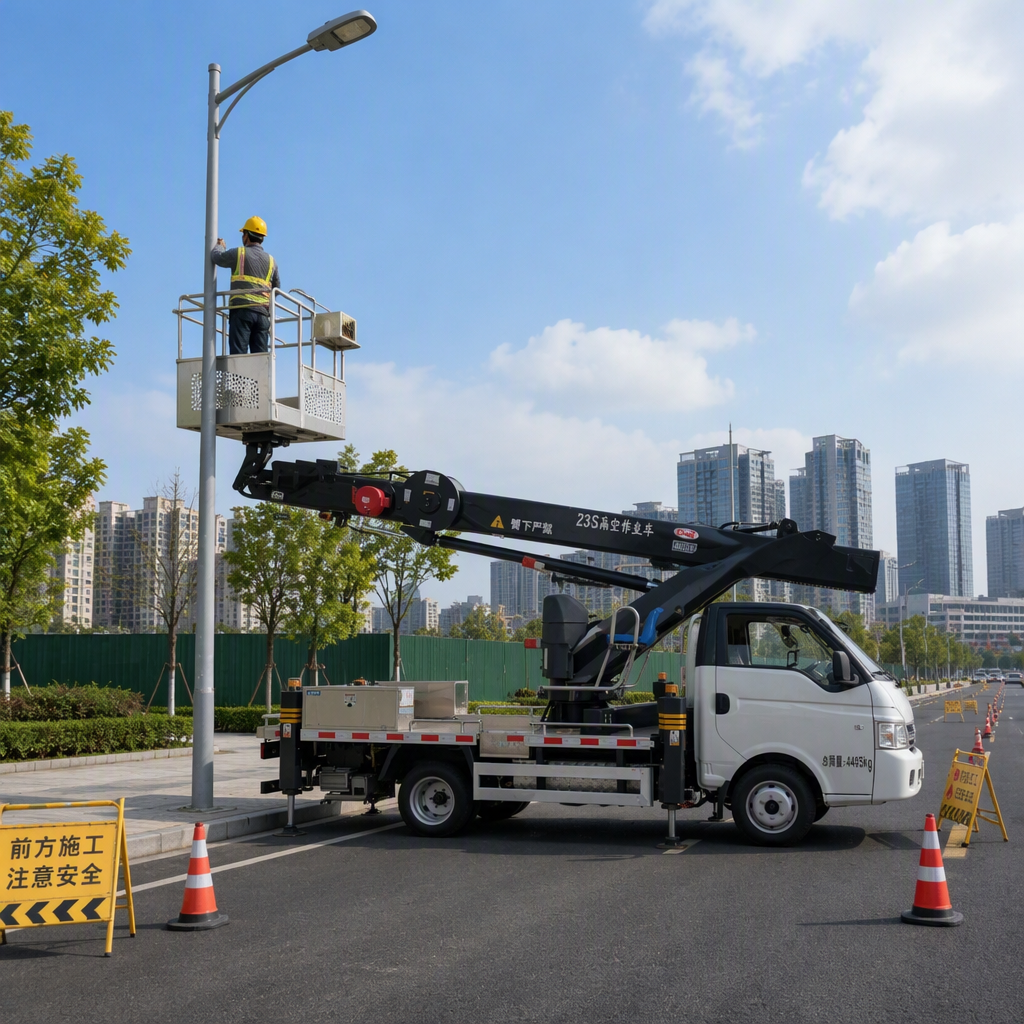

· Street Light Installation & Maintenance – Installing, repairing, and replacing street lamps and lighting fixtures.
· Power Line Maintenance – Performing overhead cable inspection, repair, and electrical equipment maintenance.
· Telecom Pole & Cable Work – Installing and maintaining telecom cables, antennas, and pole-mounted equipment.
· Tree Pruning – Trimming branches and maintaining trees along urban roads, parks, and residential areas.

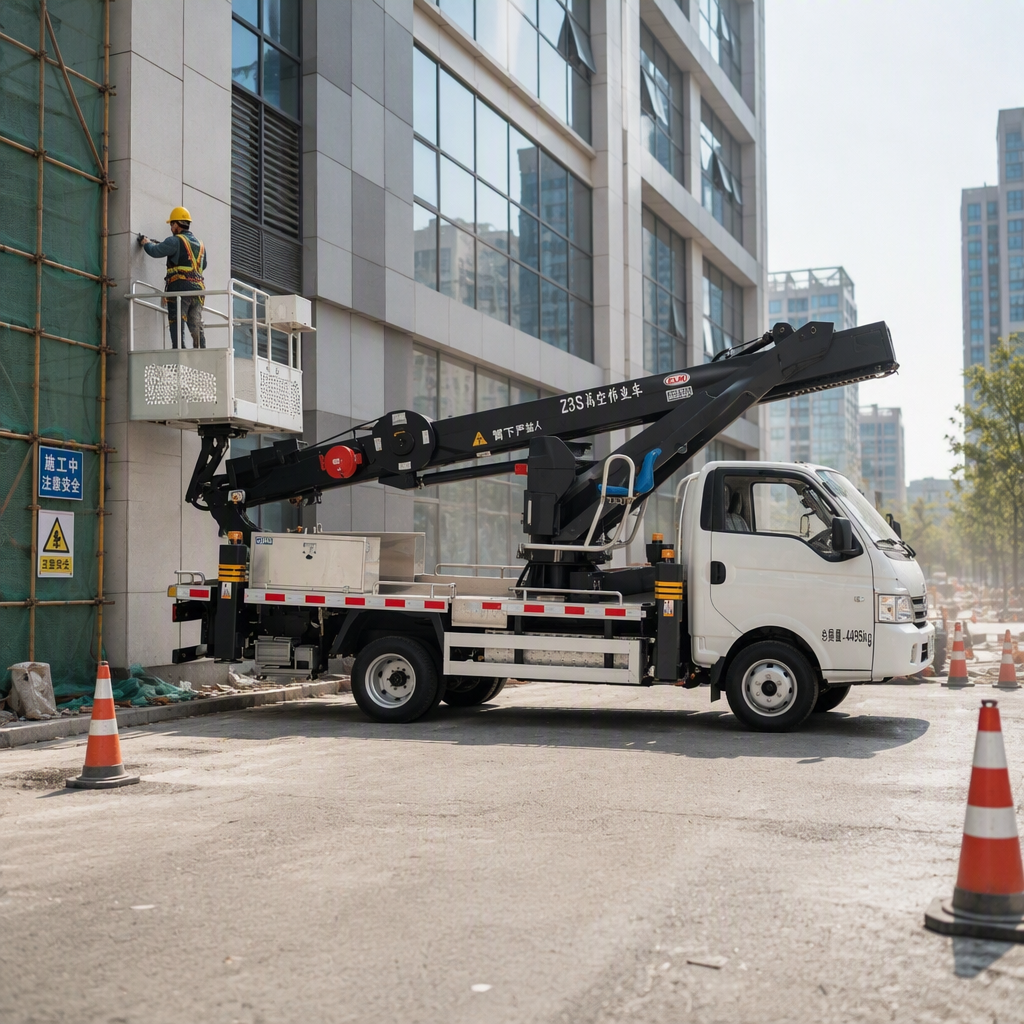

· Building Exterior Maintenance – Carrying out façade repairs, exterior cleaning, painting, and signage installation.

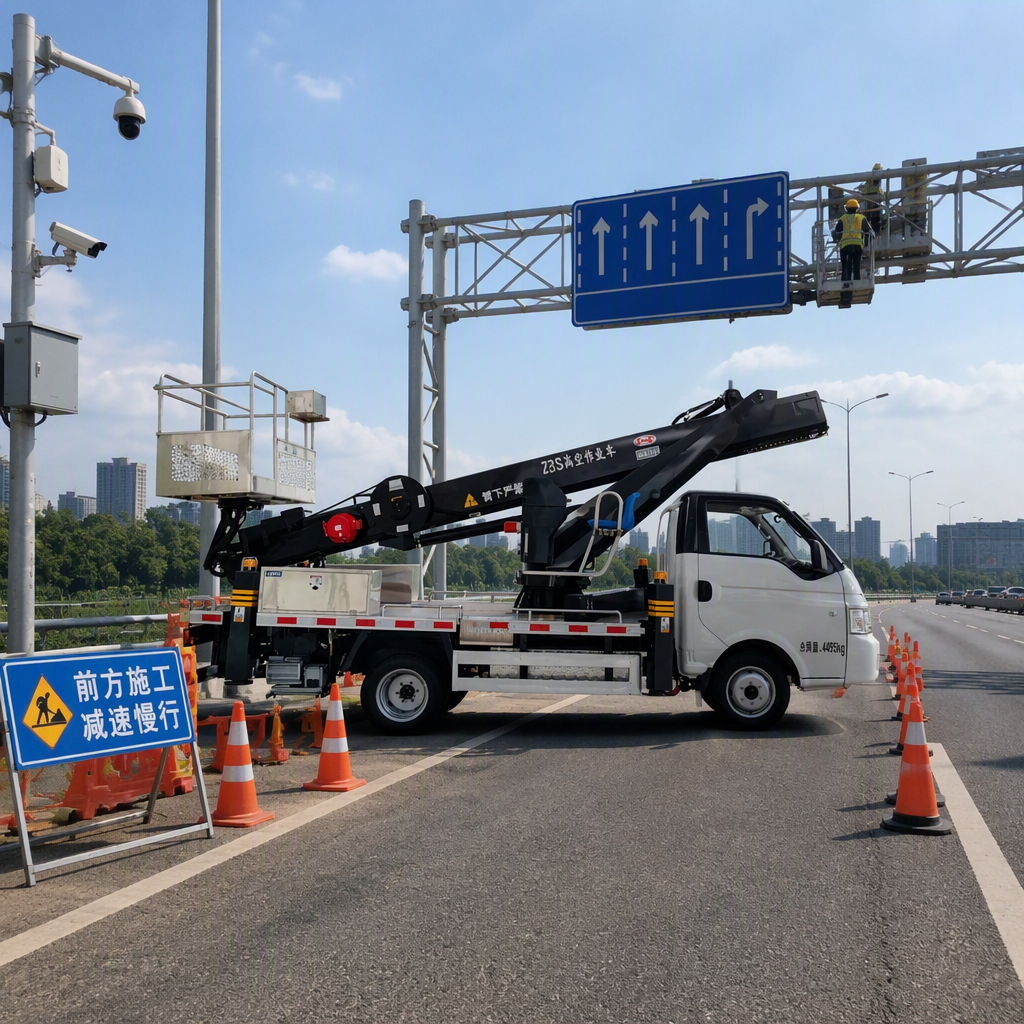

· Traffic Sign Installation – Installing and maintaining traffic signs, road signs, cameras, and other roadside equipment.
· Urban Facility Maintenance – Performing elevated maintenance and repair work in streets, communities, industrial parks, and other urban areas.
Get a Quote for Your Aerial Work Needs!
Choose a reliable pure electric aerial work platform truck designed for efficient, safe, and flexible operation. With professional vehicle development and customization capabilities, we can provide solutions tailored to different working requirements and market needs.
Contact us for product specifications, customization options, pricing, and technical support.
