Product Advantages & Key Features
Integrated Chassis & Superstructure Design
Developed around Yiwei Auto’s independently developed 18-ton electric chassis, the integrated design improves chassis-to-superstructure compatibility while supporting lightweight construction, corrosion resistance, and reliable operation.
Three Cleaning Modes for Versatile Operations
Switch between wash-and-sweep, sweep-and-vacuum, and dry sweeping modes. Three energy settings—Powerful, Standard, and Energy-Saving—plus adjustable brush speeds and right-side sweeping adapt to different road conditions and cleaning needs.
High-Capacity Cleaning & Long Driving Range
With a cleaning width of up to 3.5 m, an effective clean-water tank capacity of up to 8.9 m³, and a 6.6 m³ effective debris capacity, the truck supports extended cleaning operations. Its 231.1 kWh or 271.1 kWh battery options deliver a rated constant-speed range of up to 360 km or 420 km, respectively, at 40 km/h.
Intelligent Control & Optional AI Vision System
Intelligent operating controls coordinate sweeping, suction, and high-pressure washing. The optional AI vision-based system identifies road debris and adjusts cleaning settings automatically, helping optimize energy consumption and reduce unnecessary noise during operation.

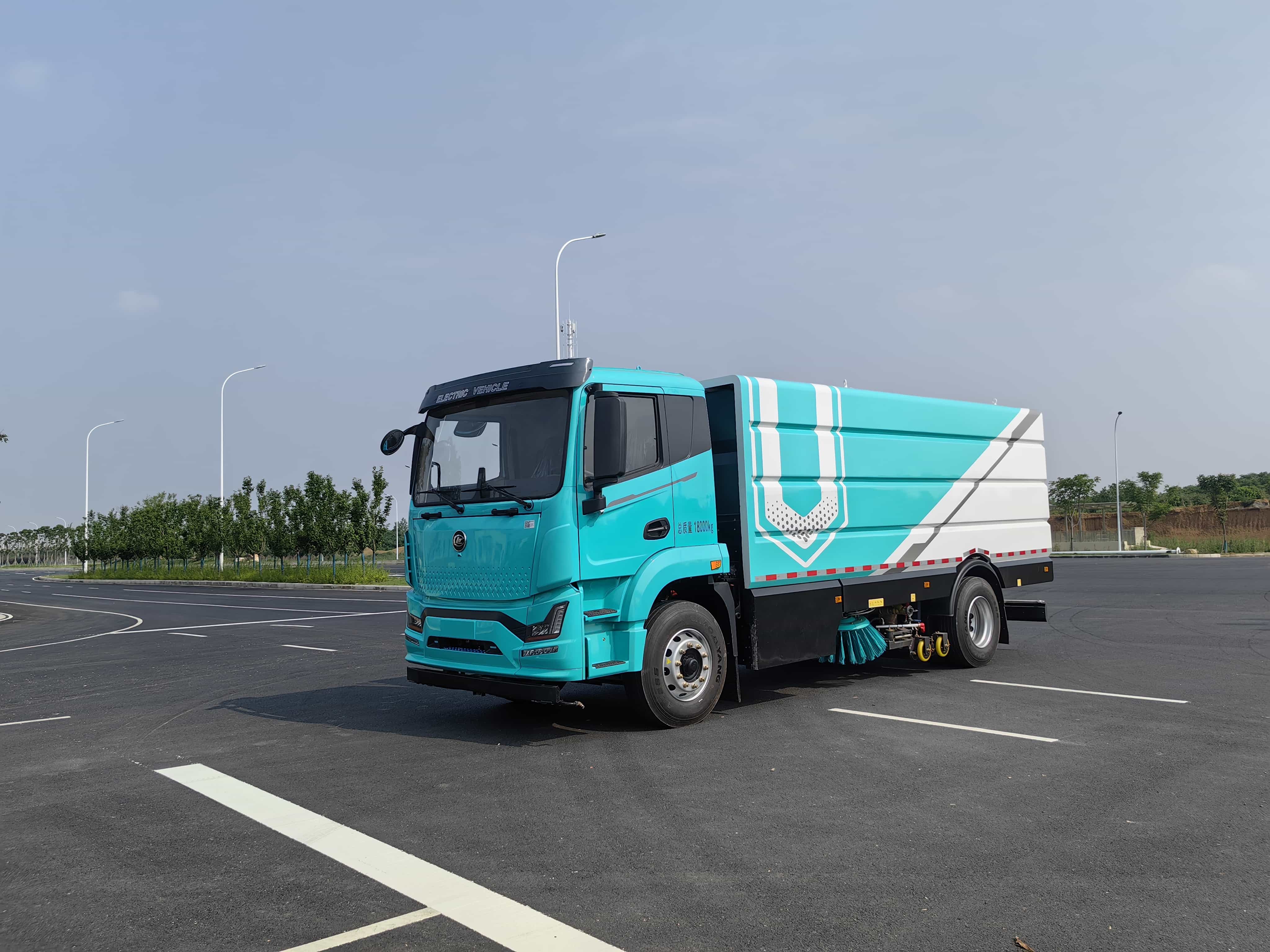

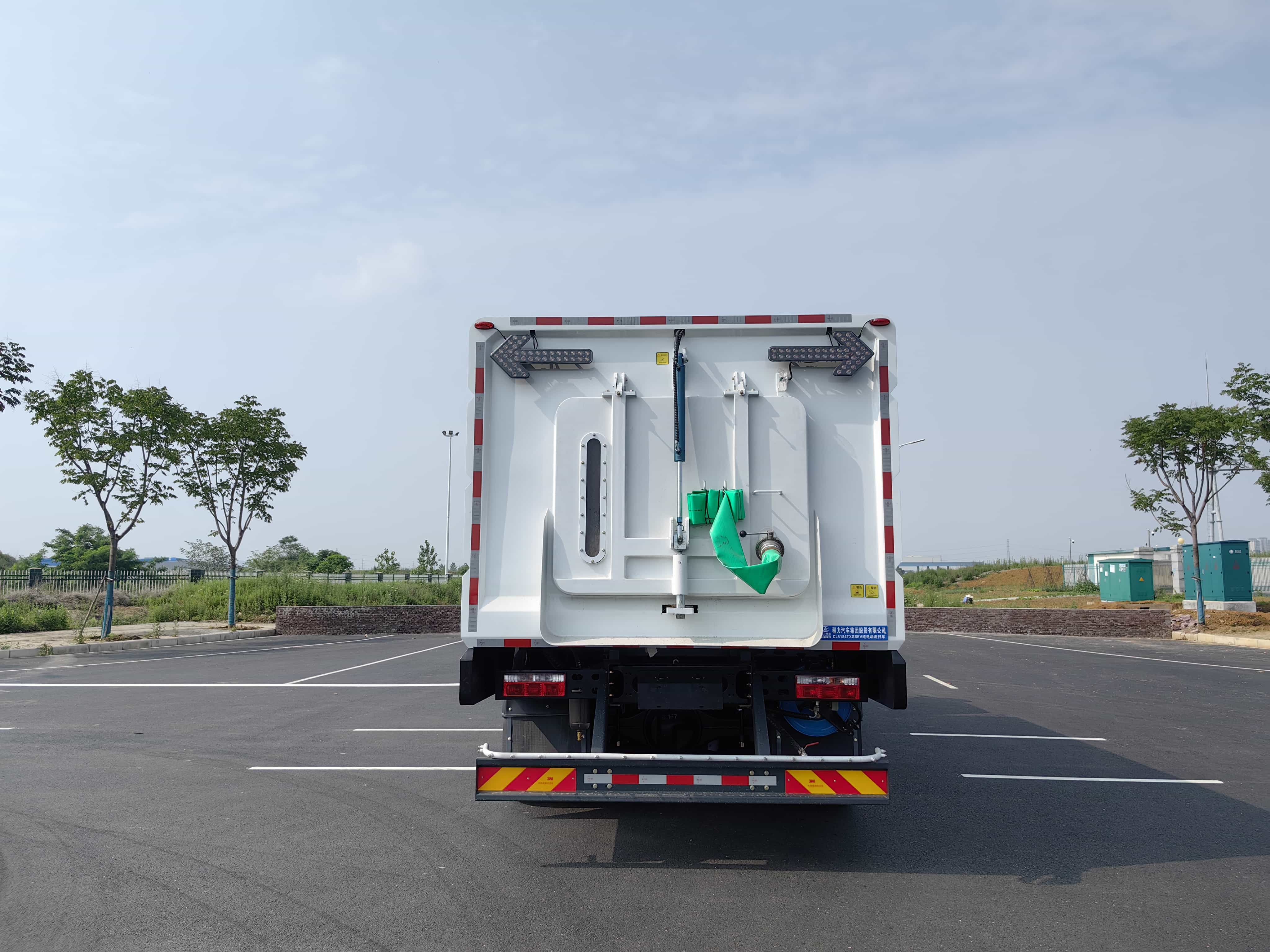

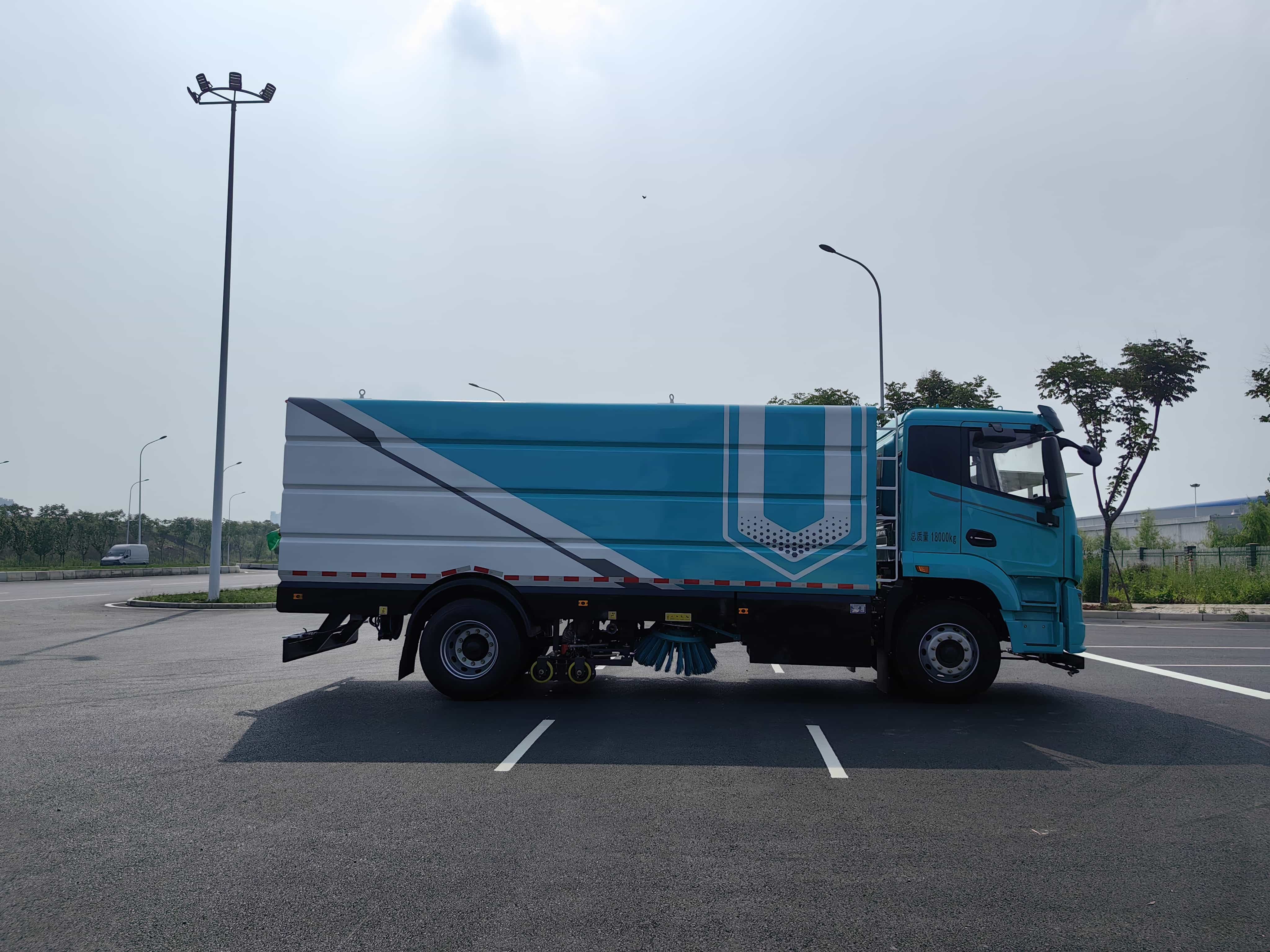

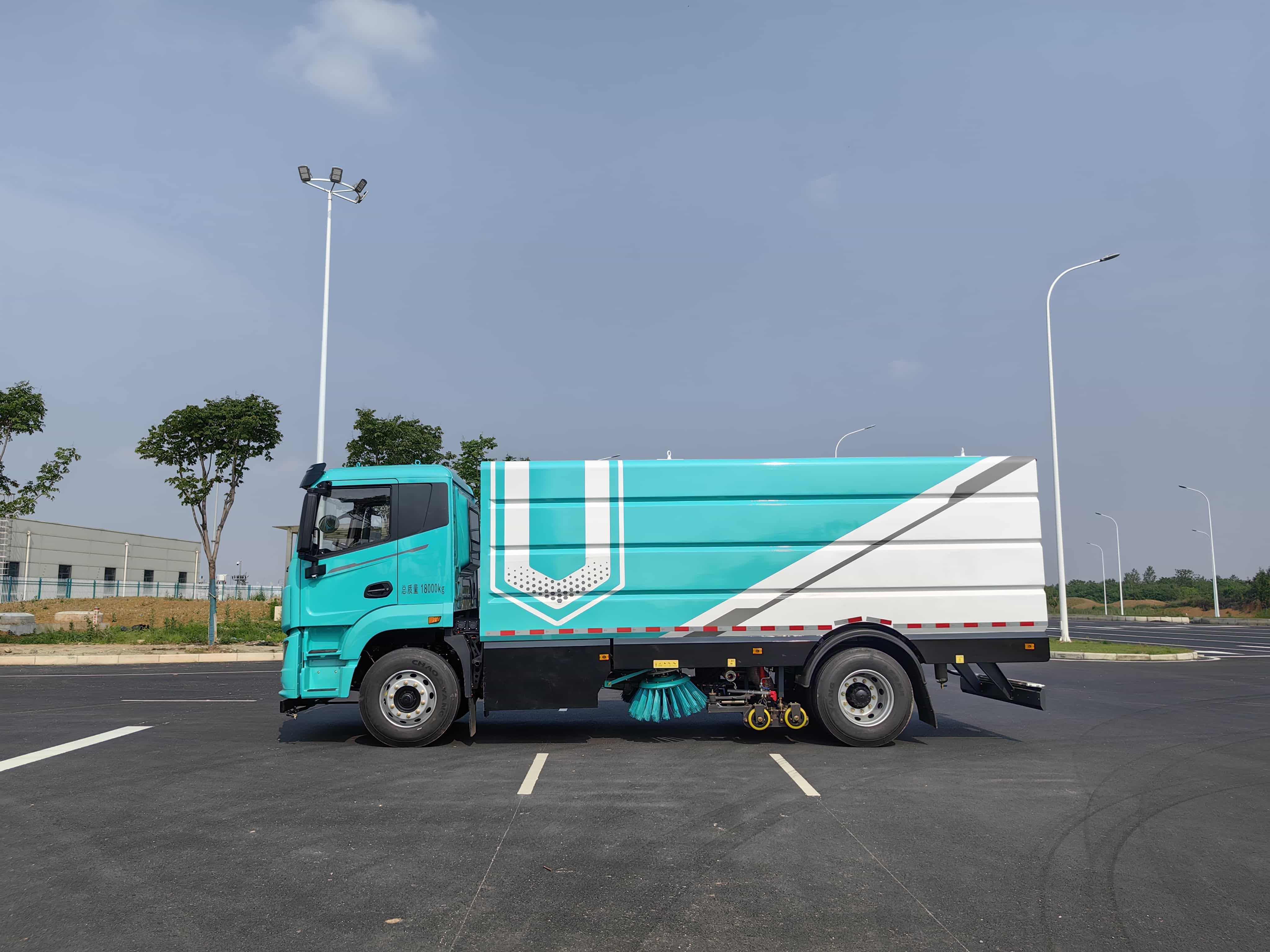

Product Appearance
Product Parameters
| Items | Parameter | Remark | |
|---|---|---|---|
|
Vehicle Parameters
|
Vehicle Model | CL5184TXSBEV | |
| Gross Vehicle Weight (kg) | 18000 | ||
| Curb Weight (kg) | 12100 / 12400 | ||
| Overall Dimensions (L × W × H, mm) | 8610 × 2530 × 3250 | ||
| Drive Configuration | 4×2 | ||
| Battery & Powertrain | |||
| Battery Type | Lithium Iron Phosphate (LFP) | ||
| Battery Capacity (kWh) | 231.1 / 271.1 | ||
| Drive Motor Power (Rated/Peak, kW) | 120 / 200 | ||
| Max. Vehicle Speed (km/h) | 90 | ||
| Driving Range (km) | 360 / 420 | Constant Speed at 40 km/h | |
| Charging Time (min) | 30 | 30%–80% SOC, dual-gun fast charging | |
|
Cleaning System Parameters |
Sweeping & Suction Width (m) | 3.5 | |
| Effective Fresh Water Tank Capacity (m³) | 8.9 / 8.5 | ||
| Effective Debris Tank Capacity (m³) | 6.6 | ||
| Max. Water Pressure (MPa) | 10 | ||
| Water Pump Flow Rate (L/min) | 142 | ||
| Disc Brush Diameter (mm) | 850 | ||
| Disc Brush Speed (rpm) | 50 / 80 / 110 | Low / Medium / High | |
Applications
The 18-ton electric washer and sweeper truck is designed for municipal road maintenance, urban street cleaning, industrial parks, commercial districts, residential communities, and public squares. Combining high-pressure road washing, mechanical sweeping, and vacuum suction, it efficiently removes dust, sand, leaves, and stubborn road dirt while collecting wastewater and debris. With selectable cleaning modes and adjustable brush speeds, it adapts to different road conditions and cleaning requirements, making it suitable for daily sanitation, deep road cleaning, and roadside curb maintenance. Optional AI vision technology enables intelligent cleaning adjustments for improved operational efficiency and energy management.
Optional Configuration
Guardrail Cleaning System
Snow Sweeping Roller
Snow Plow
AI Vision-Based Intelligent Cleaning System
